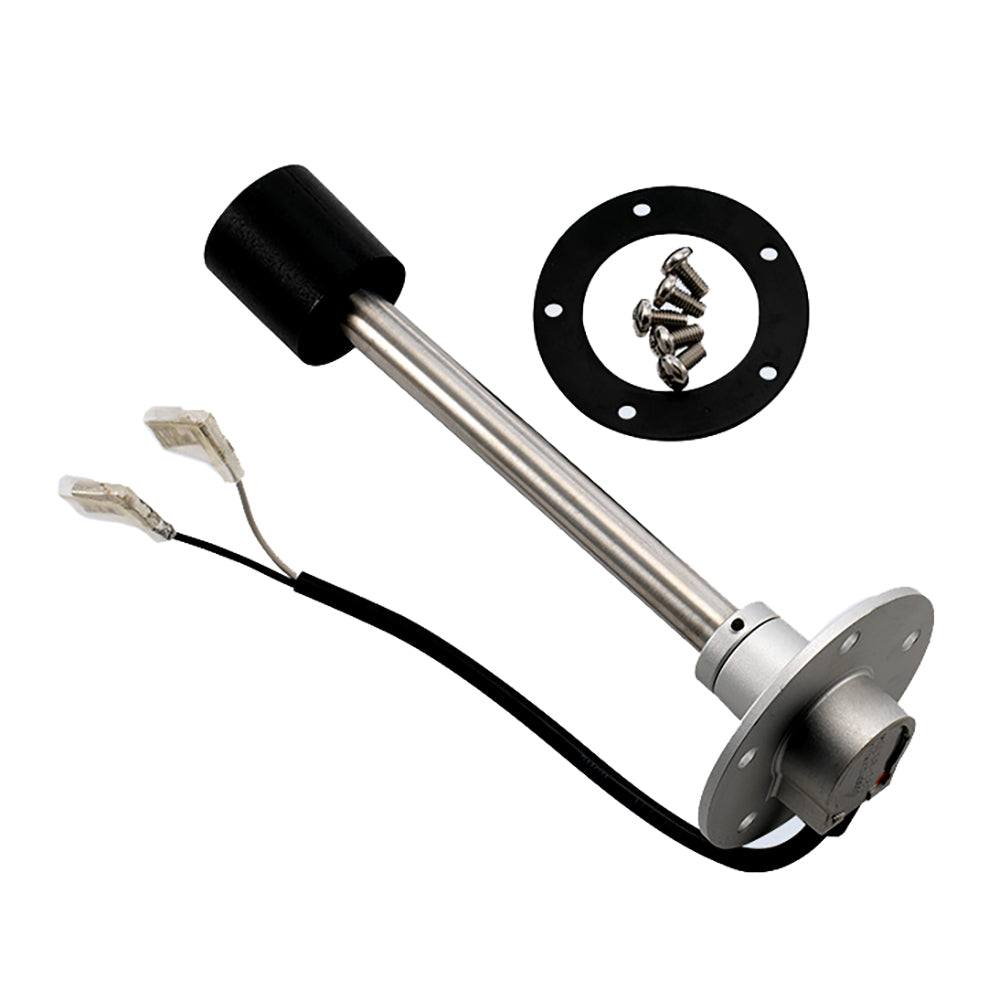

VDO Reed Switch Fuel Sender - 450 MM

VDO Reed Switch Fuel Sender - 450 MM

OM-VDO-REEDSWITCHFUEL-226645

$59.66
$64.99 $59.66
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

SilverColor

Limited clearance inside a fuel tank can rule out a conventional swing-arm sender. The VDO 450mm Reed Switch Fuel Sender offers a tubular alternative for those installations, helping reduce gauge pointer movement caused by fuel sloshing.

Key features

  • A tubular design suits installations without enough room for a conventional swing arm.
  • The tube dampens the effects of fuel slosh to help steady the gauge pointer.
  • A standard SAE five-hole flange provides a top-mounted installation.
  • Compatibility with most standard marine fuel gauges supports use in marine fuel-level systems.
  • Supplied mounting hardware helps prepare the sender for installation.

Specifications

  • Sender type: Reed switch
  • Construction: Stainless steel
  • Tank depth: 450mm / 17.7"
  • Resistance range: 240–33 ohms
  • Mounting position: Top
  • Mounting flange: Standard SAE five-hole
  • Connection: Insulated 1/4" spade
  • Ground: Floating
  • Quantity: One sender

Good to know

Check your tank depth and gauge requirements when selecting this sender. The stated fit is for 17.7" / 450mm-deep tanks, and compatibility covers most standard marine fuel gauges.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

ColorSilver
BrandVDO
Manufacturer part #226-645
UPC754059064451
Boxed dimensions19 x 3 x 3 in
Shipping weight0.8 lb
Country of originTAIWAN
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Installation guidePDF ↓
