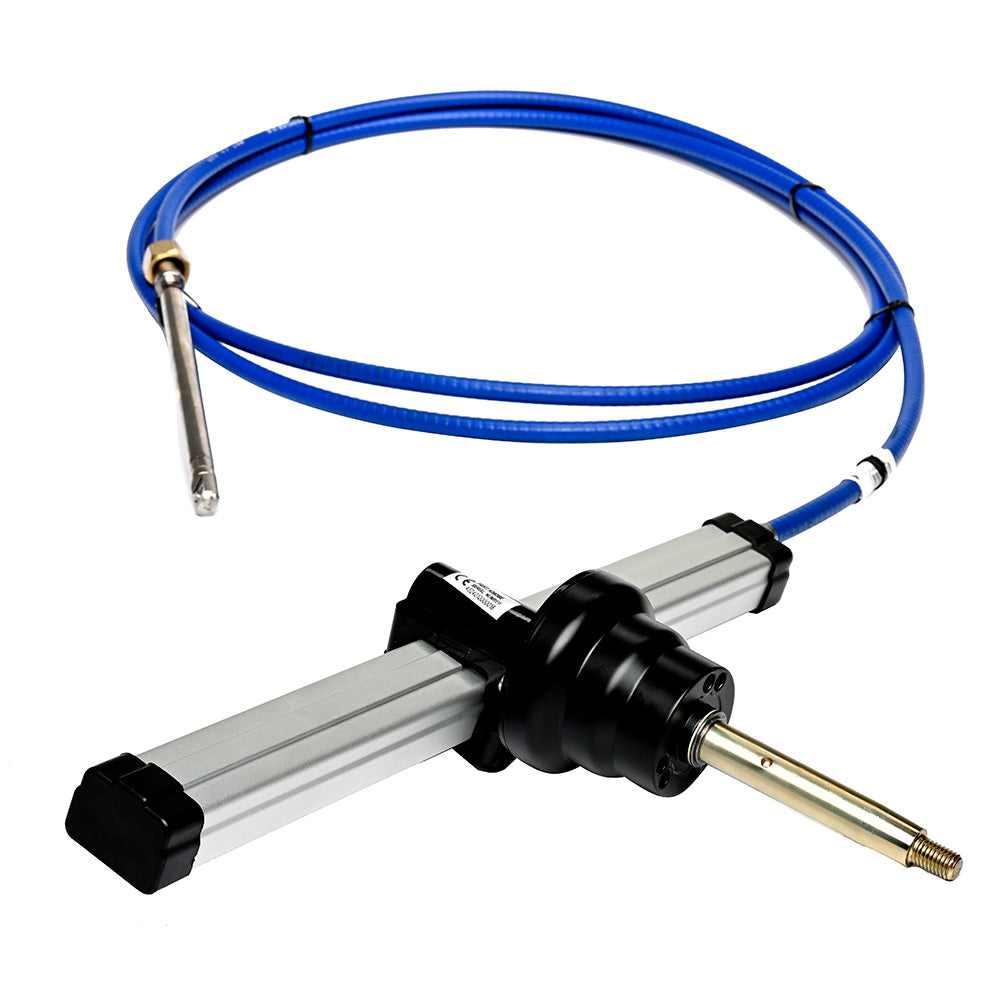

Uflex TM87 17' Rack & Pinion Steering System

The Uflex USA TM87 17' steering system is a rack and pinion setup for boats needing a front-mount helm, cable, and bezel in one kit. It is intended as a replacement option for compatible rack and pinion steering installations, while keeping the original wheel in many applications.

• System type: high-efficiency rack and pinion steering system
• Length: 17' cable
• Included components: G87 front mount helm, TM87XLL high-efficiency cable, and X34 mounting bezel
• Compatibility: works with SSC134, SSC135, and SSC154 competing cables and SH91610P helm
• Cable output ends: stainless steel
• Construction: made with corrosion-resistant materials
• Shaft: standard 3/4" tapered shaft for most steering wheels up to 16" diameter
• Cable stroke: 3.7"
• Steering travel: 3.3 turns lock-to-lock
• Cable bend radius: 7.9"
• Standards: exceeds ISO 8848 and ABYC P17 safety standards
• Installation note: X34 bezel uses the same bolt pattern as the existing helm, so drilling holes is not required
• Use limitation: not for boats with engines exceeding the boat's maximum horsepower rating
• Steering wheel: optional and not included
