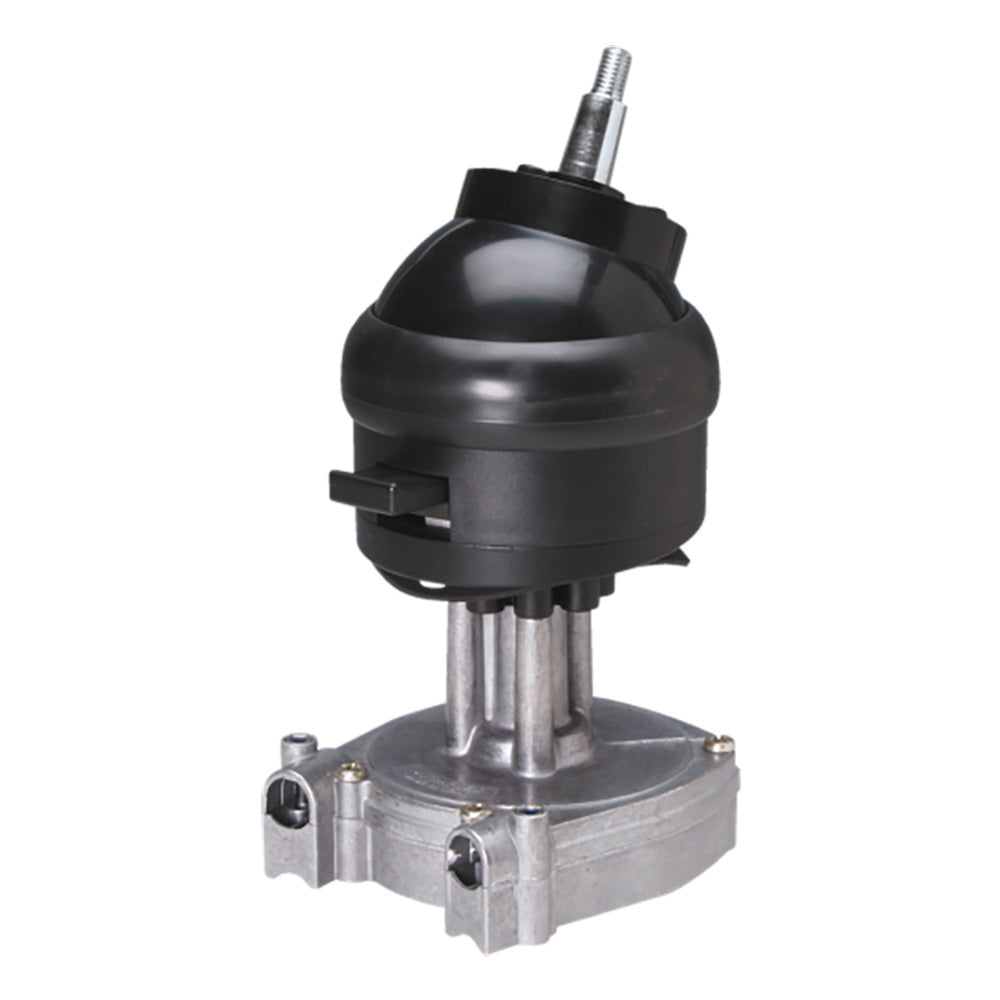

Uflex T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold Separately

The Uflex USA T83FC Zero Torq rotary helm is a single-cable steering helm for boat steering installations that require tilt capability. It uses a planetary gear design, offers approximately 3.8 steering wheel turns lock to lock, and requires the X52 tilt mechanism, sold separately.

• Model: T83FC Zero Torq rotary helm
• Steering type: single cable
• Tilt mechanism: X52 tilt mechanism sold separately
• Tilt range: 48 degrees with five locking positions
• Design: planetary gear design with fast-connect installation
• Shaft: standard 3/4 inch tapered stainless steel shaft
• Cable output ends: all stainless steel
• Materials: corrosion-resistant materials
• M66 steering cable stroke: 228 mm / 9 inches
• Steering wheel turns: approximately 3.8 lock to lock
• Maximum dash depth: 25.4 mm / 1 inch
• Maximum steering wheel diameter: 406 mm / 16 inches
• Minimum steering cable bend radius: 200 mm / 7.9 inches
• Compatibility note: T83NRFC steering system is not for boats with engines exceeding the boat's maximum horsepower rating
• Tilt mechanism compatibility: X52 fits Ultraflex tilt mount rotary and rack and pinion steering helms, plus Ultraflex tilt mount hydraulic pumps except SilverSteer and MasterDrive steering systems
• Speed note: hydraulic steering systems are recommended for boats faster than 50 mph
• Optional items: steering wheel and engine connection kits
• Standards: exceeds EN 28848 and ABYC P17 safety standards
• Return note: This product may not be returned to the original point of purchase; contact the manufacturer with issues or concerns.
