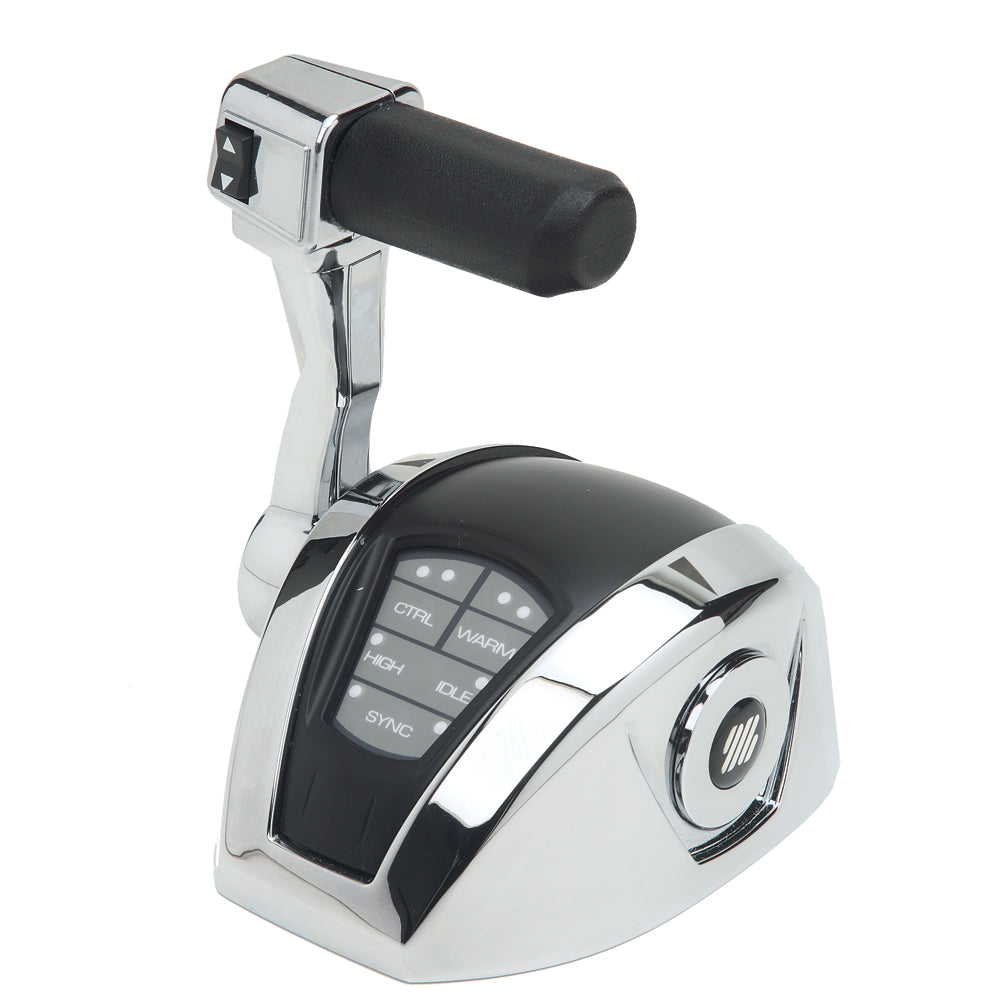

UFlex Power A Mark II Single Engine Control Head w/Trim

The UFlex Power A Mark II control head is an electronic throttle and shift control for single-engine installations with trim. It is built for boats using mechanical, electronic, or electro-hydraulic controls on gas or diesel inboards, sterndrives, and outboards.

The system supports precise digital control from multiple stations and includes operator modes for docking, warm-up, high idle, synchronization, and trolling valve control. Audible and visual status feedback help the operator monitor system state while onboard.

• Application: single-engine electronic control head with trim
• Control types: single lever/dual function and dual lever/dual function for shift, throttle, and trolling
• Compatible systems: mechanically controlled, electronic, and electro-hydraulic gas and diesel inboards, sterndrives, and outboards
• Stations supported: up to 4 control stations
• Power supply: minimum 9V, maximum 32V
• Working temperature: -25 degC to +75 degC
• Control station functions: station select, engines warm up, high idle, docking, engine synchronization, and trolling valve
• Electronic throttle outputs: voltage double output 0-5V and 0-2.5V, PWM 0-100% from 200Hz to 1kHz, and current 4-10mA
• Digital throttle output: SAE J 1939 and NMEA 2000
• Trolling valve output: voltage 0-5V, PWM 0-100% from 100Hz to 1kHz, and current 4-20mA
• Electric shift control: 2 or 3 ON/OFF or proportional solenoids with fully settable shift delays
