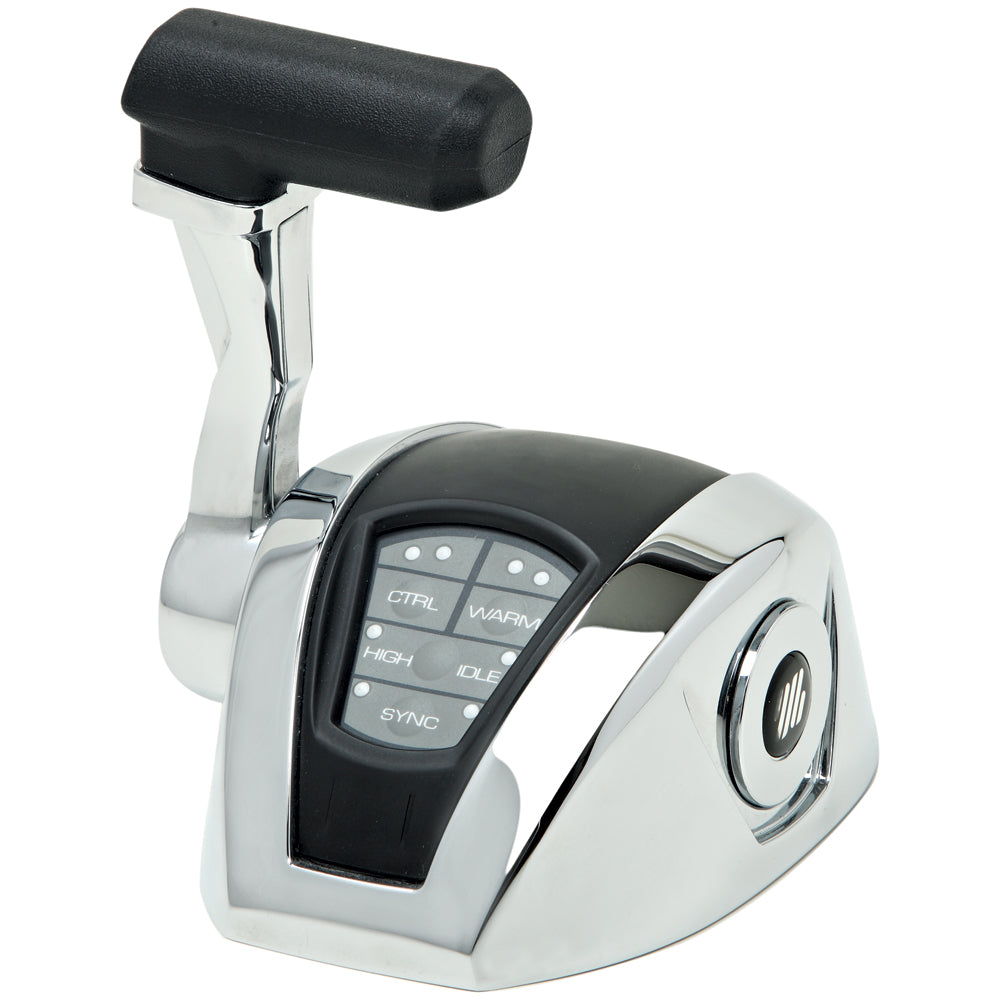

UFlex Power A Mark II Single Engine Control Head w/o Trim

The UFlex Power A Mark II control head is an electronic throttle and shift control for single-engine installations without trim. It is built for boats using mechanical, electronic, or electro-hydraulic control setups on gas or diesel inboards, sterndrives, and outboards.

This system supports precise digital control and includes operator functions for docking, warm-up, high idle, synchronization, and trolling valve operation. Its modular design can be used in sport boat, yacht, and commercial applications where a programmable electronic control system is needed.

• Configuration: single engine control head without trim
• Control functions: shift, throttle, and trolling
• Station capacity: up to 4 control stations
• Engine capacity: up to 2 engines
• Power supply: 9V minimum to 32V maximum
• Working temperature: -25 degrees C to +75 degrees C
• Station functions: station select, engine warm up, high idle, docking, engine synchronization, and trolling valve
• Electronic throttle outputs: voltage, PWM, and current
• Voltage throttle output: double output 0-5V and 0-2.5V
• PWM throttle output: 0-100%, frequency from 200Hz to 1kHz
• Current throttle output: 4-10mA
• Digital throttle output: SAE J1939 and NMEA 2000
• Trolling valve output: voltage 0-5V, PWM 0-100% from 100Hz to 1kHz, and current 4-20mA
• Electric shift control: 2 or 3 ON/OFF or proportional solenoids
• Shift delays: fully settable
• Interface: audible and visual control status alerts
• Programming: control unit display with touch pad setup, tuning, and diagnostics
