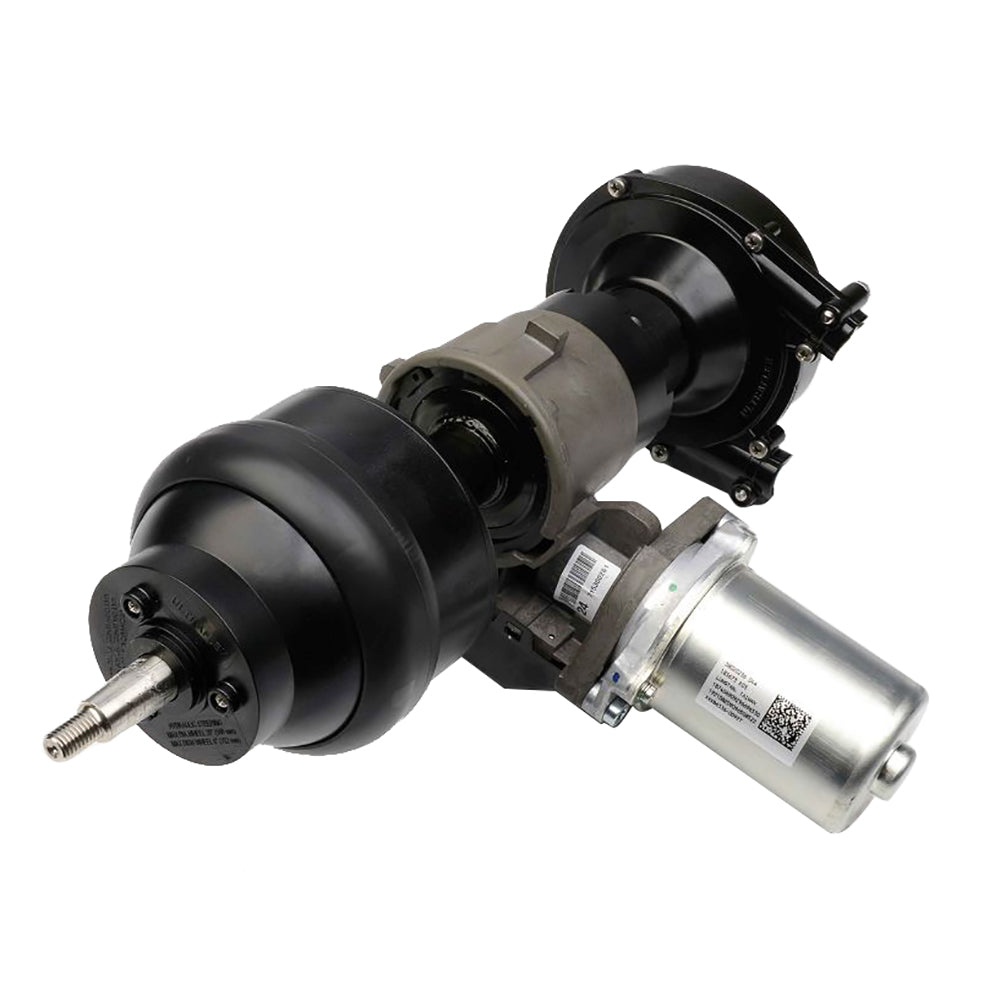

Uflex NaviTech™ Power Steer Assembly

The Uflex USA NaviTech Power Steer Assembly is a power-assisted marine steering system that combines electronic power steering with mechanical helm and M90 Nav cable components. It is intended for boat steering setups that need assisted wheel effort, system monitoring, and compatibility with specified Ultraflex helms and cable parts.

• System type: Power assisted steering assembly
• Helm: T91NAV - 43207S single cable steering helm
• Tilt mechanism: X66 - 40613M for NaviTech tilt mount helms
• Tilt range: 48 degrees with five locking positions
• Steering cable: M90 Nav patented cable
• M90 Nav compatibility: Suitable for T71FC, T72FC, T73NRFC, T81FC, T82FC, T83NRFC, T91, T93ZT, T101, and T103ZT Ultraflex steering helms
• M66 note: M66 will not fit Uflex T91, T93ZT, T101, or T103ZT helms
• Steering feel: 100% balanced steering from port to starboard and starboard to port
• Operation: Silent operation
• Monitoring: Integrated System Monitoring with cycle counter and haptic steering wheel feedback
• Alerts: Can signal excessive cable load and stuck cable alarm conditions
• Assist torque: 16 Nm capability
• Tuning: On-center and end-of-travel torque effort can be tuned
• Voltage: 10 - 15 VDC
• Nominal current: 8 - 15 A during steering maneuvers
• Harness: Supplied with 10 ft electrical harness
• Fuse requirement: Needs a 40 A fuse, ordered separately
• Validation: Marine application validation per CE, ABYC P17, ABYC P27, and ISO 25197
• Type acceptance: NMMA Type Acceptance completed
• Other component: Optional steering wheel
