Overview

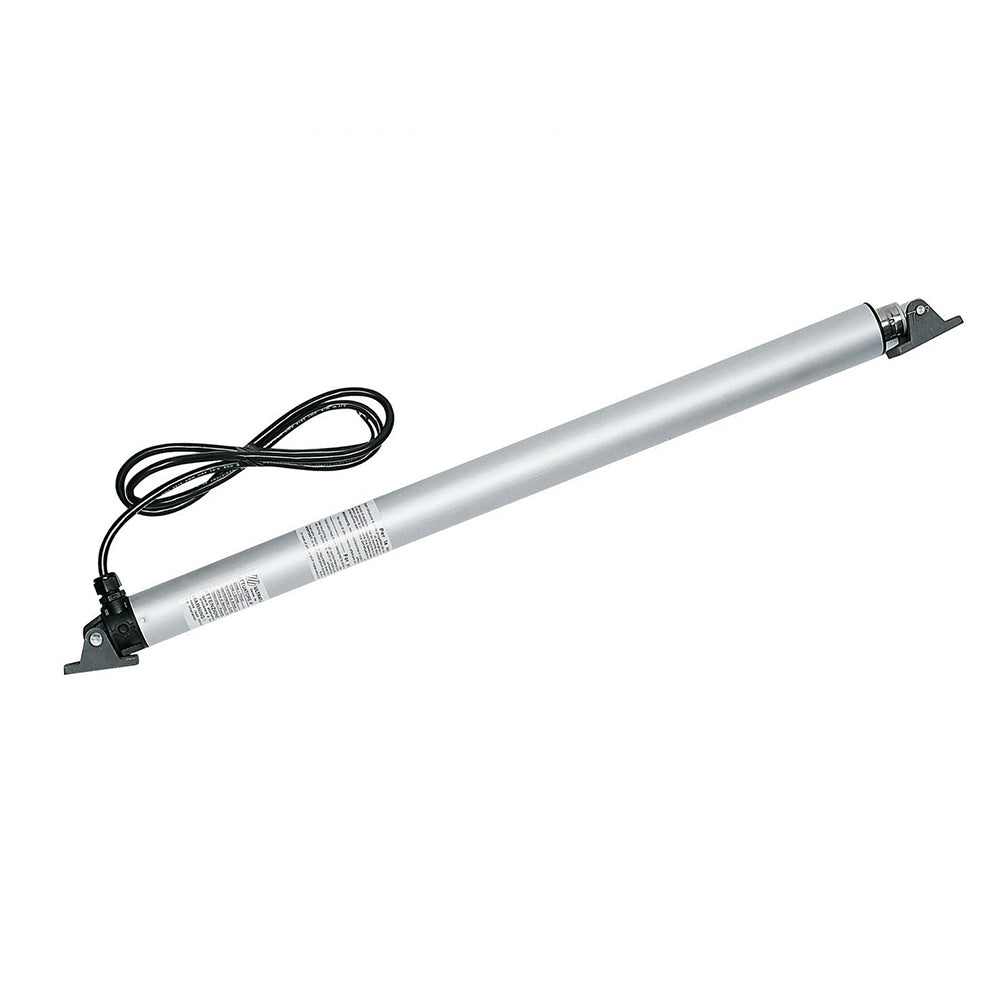

The Uflex USA Mechanical Hatchlifter is a 12 in. stroke electromechanical actuator for opening and closing heavy marine hatches on pleasure boats. It can hold a hatch at any position between closed and fully open, and includes emergency manual operation for use during a power failure.

  • Product type: AV hatch lifter
  • Voltage: 12V DC
  • Stroke: 300 mm / 12 in.
  • Closed length: 677 mm / 26.6 in.
  • External diameter: 48 mm / 1.9 in.
  • Single installation maximum load: 1200N / 120 kg / 265 lbs.
  • Dual installation maximum load: 2400N / 240 kg / 529 lbs.
  • Installations: Can be mounted individually, in twin-cylinder installations, or in multiple actuator applications
  • Manual operation: Stainless steel telescopic ram for emergency opening
  • Protection rating: IP65
  • Speed: 25 mm/sec with no load, 17 mm/sec at maximum load
  • Current draw, single installation: 10A at 12V, 5A at 24V
  • Current draw, dual installation: 20A at 12V, 10A at 24V
  • Safety features: Internal self-locking mechanism, circuit breaker for accidental overload, and electronic stop at closed or fully open position
  • Approvals: 12VDC models are Ignition Protected; UL1500 and ISO8846 approved
  • Hardware: Supplied with all mounting hardware

Specifications

BrandUflex USA
Manufacturer part #AV3012
UPC702755060680
Boxed dimensions28 x 4 x 2 in
Shipping weight5.6 lb
