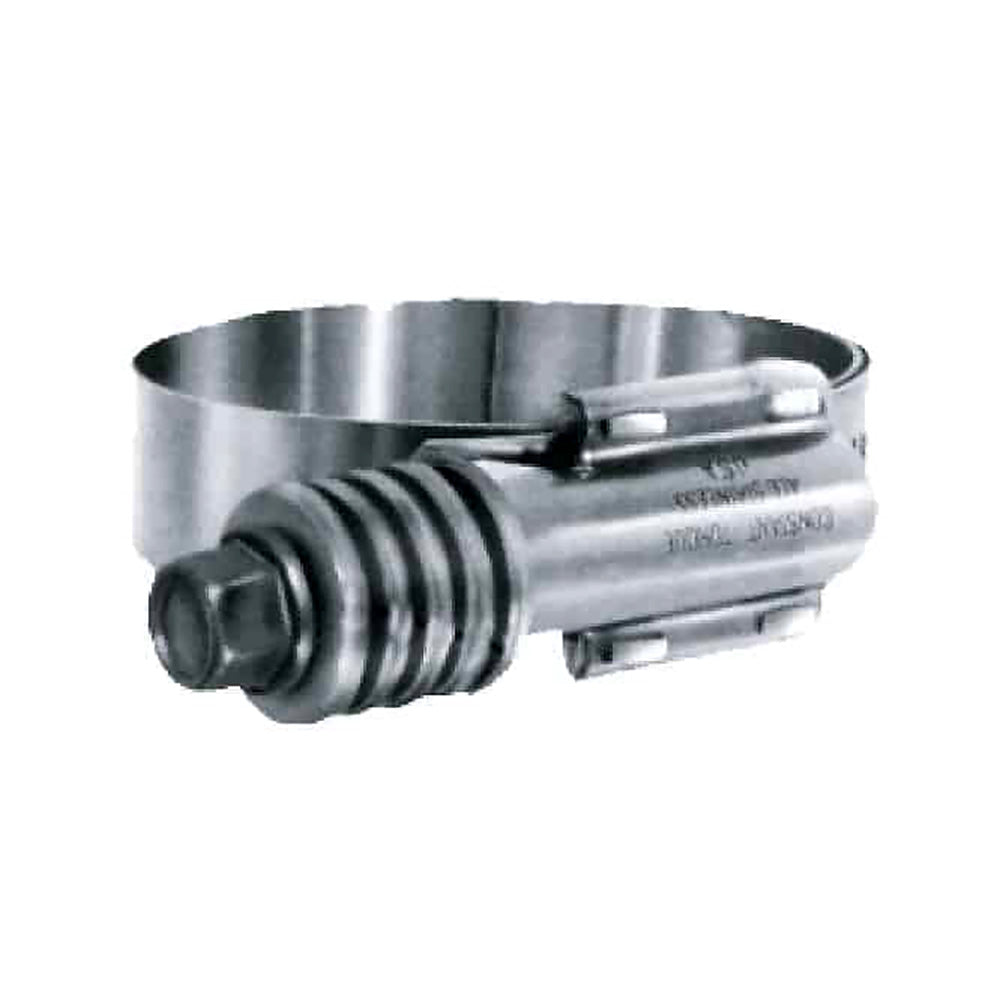

• Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"
1 1

Trident Marine

Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"

Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"

OM-TRIDENTMARIN-STAINLESSSTEEL-7302120

$24.55
$24.55
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"

Virtually all rubber hose compresses (cold flow) after installation of clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contracts as the system cools. Conventional worm gear, T-bolt, and other clamps are passive, in that expansion or contraction of components cannot be compensated for with out re-tightening or loosening the clamps. This clamping system is an “active” clamping mechanism, which monitors and then compensates for the changes by actually changing diameter through a unique worm gear Belleville assembly.

Specifications:

  • Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"
  • Recommend max. torque - smaller id. sizes up to 730-3000 - 30 to 70 in.-lbs, larger id. sizes above 730-3000 - 50 to 120 in.-lbs

Construction:

  • Band & Housing: 304 Stainless Steel 5/8” Wide Band
  • Bellville Spring Washers & Screw: 401 Stainless Steel

Specifications

BrandTrident Marine
Manufacturer part #730-2120
