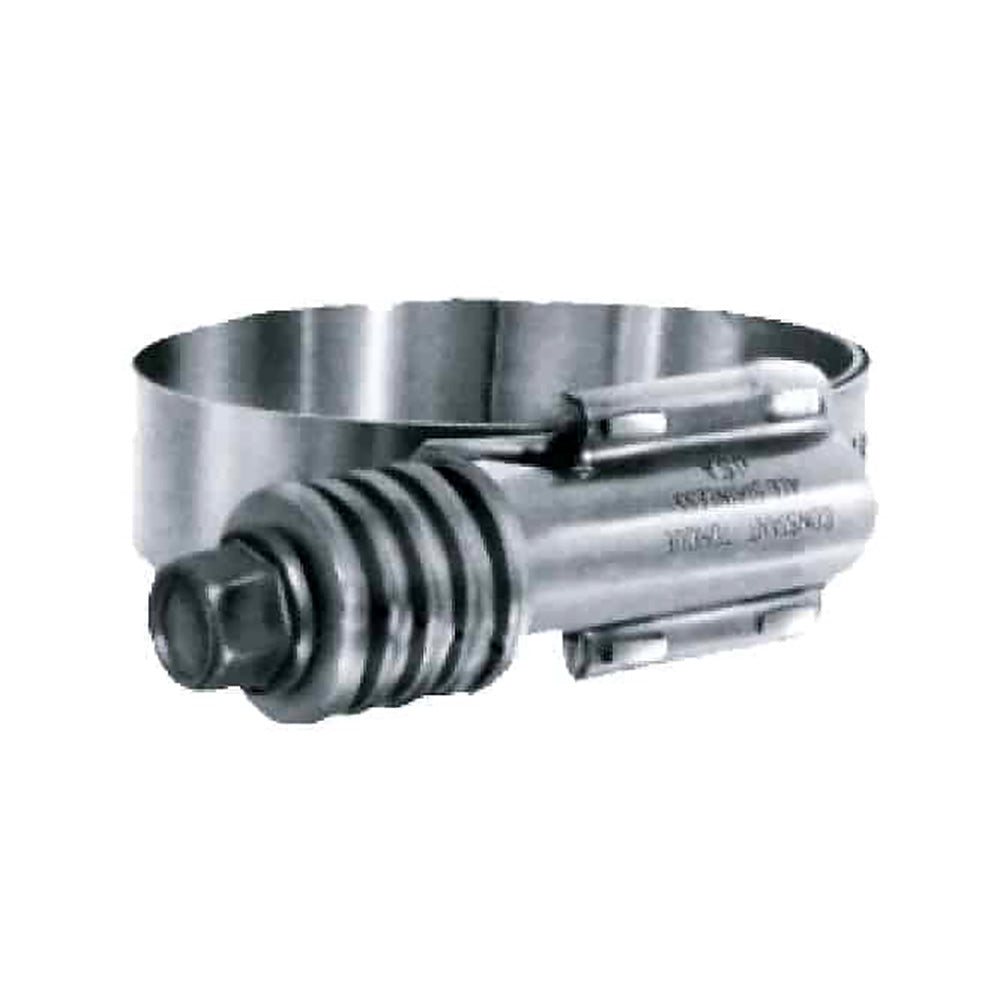

• Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 1-7/8" to 2-1/2", Hose O.D. - 2.25" to 3.125"
1 1

Trident Marine

Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 1-7/8" to 2-1/2", Hose O.D. - 2.25" to 3.125"

Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 1-7/8" to 2-1/2", Hose O.D. - 2.25" to 3.125"

OM-TRIDENTMARIN-STAINLESSSTEEL-7302000

$22.97
$22.97
Shipping calculated at checkout.

Low stock: 1 left
Authorized Trident Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 1-7/8" to 2-1/2", Hose O.D. 2.25" to 3.125"

Virtually all rubber hose compresses (cold flow) after installation of clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contracts as the system cools. Conventional worm gear, T-bolt, and other clamps are passive, in that expansion or contraction of components cannot be compensated for with out re-tightening or loosening the clamps. This clamping system is an “active” clamping mechanism, which monitors and then compensates for the changes by actually changing diameter through a unique worm gear Belleville assembly.

Specifications:

  • Hose I.D. - 1-7/8" to 2-1/2", Hose O.D. - 2.25" to 3.125"
  • Recommend max. torque - smaller id. sizes up to 730-3000 - 30 to 70 in.-lbs, larger id. sizes above 730-3000 - 50 to 120 in.-lbs

Construction:

  • Band & Housing: 304 Stainless Steel 5/8” Wide Band
  • Bellville Spring Washers & Screw: 401 Stainless Steel

Specifications

BrandTrident Marine
Manufacturer part #730-2000
