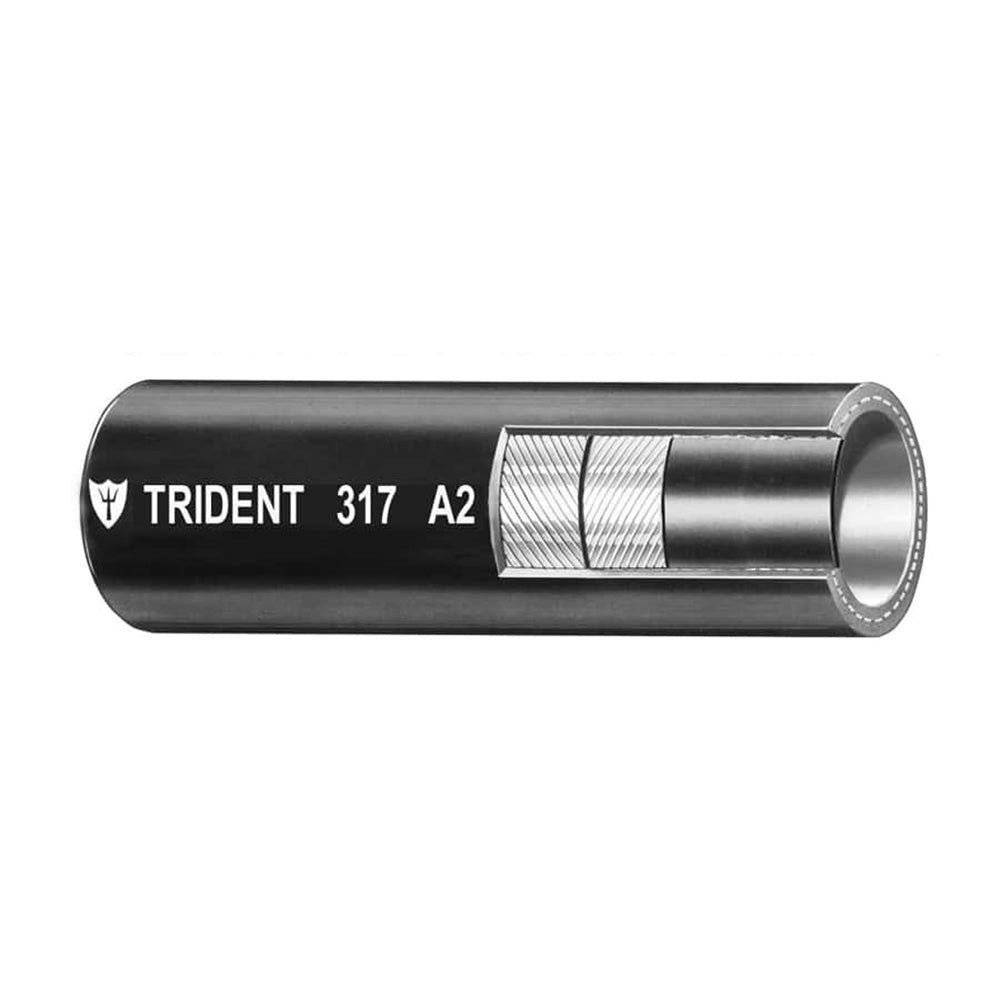

Trident Marine 5/8" Type A2 Fuel & Vent Line Hose - Black - Sold by the Foot

This Trident Marine 5/8 inch Type A2 hose is sold by the foot for marine fuel vent and diesel distribution applications. It is built for use with marine fuels listed by the manufacturer, including gasoline blends with ethanol and diesel blends with bio-diesel.

• Brand: Trident Marine
• Size: 5/8 inch inner diameter
• Type: Type A2 fuel and vent line hose
• Color: Black
• Sold: By the foot
• Applications: Fuel vent hose and diesel distribution
• Fuel compatibility: Gasoline, alcohol blends, diesel, and bio-diesel
• Tube: Nylon internal barrier, NBR
• Cover: NBR/PVC blend
• Reinforcement: Polyester 2 spiral
• Temperature range: -20°F to 212°F (-28ºC to 100ºC)
• Outer diameter: 0.960 inch / 24.4 mm
• Burst pressure: 200 psi / 1.38 mpa
• Working pressure: 50 psi / 0.34 mpa
• Bend radius: 3 inch / 76.2 mm
• Weight: 25.84 lb per 100 ft. / 11.72 kg/m
• Certifications and standards: NMMA Type Accepted and CE certified
• Compliance: #317 series exceeds ABYC H-24 and H-33, SAE J1527, ISO 7840, and USCG Type A2
• Returns: This product may not be returned to the original point of purchase; contact the manufacturer with issues or concerns
