• Trident Marine 5/16" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black
1 1

Trident Marine

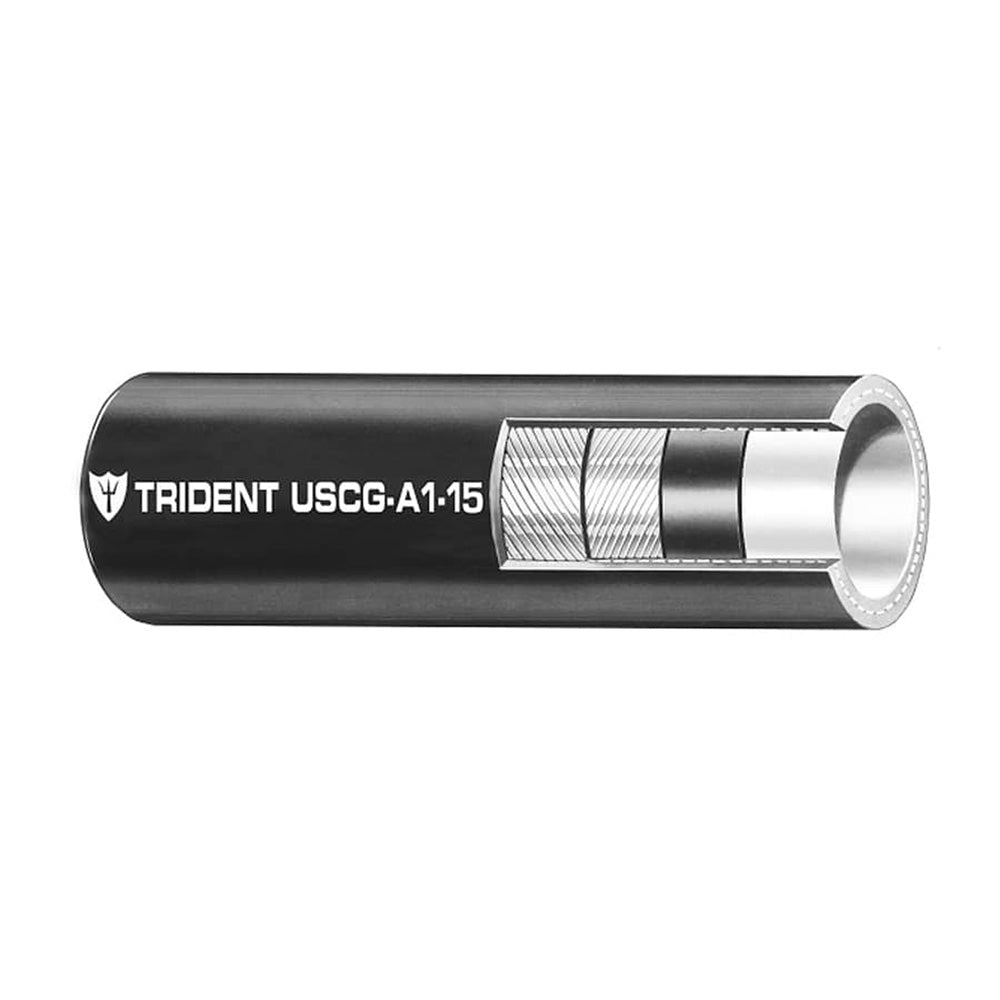

Trident Marine 5/16" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black

Trident Marine 5/16" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black

OM-TRIDENTMARIN-516X-3650566

$135.56
$217.14 $135.56
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

5/16"ID Diameter (inches)
50'Length (Feet)

Replace or route marine fuel lines with this boxed 50-foot length of Trident Marine 5/16-inch A1-15 hose. Suitable for fuel distribution, return, vent and transfer duties, it handles gasoline with ethanol blends up to 85% and diesel with biodiesel blends up to B100.

Key features

  • An internal barrier separates the fuel from the rubber tube to limit permeation.
  • Flexible construction helps the hose bend along fuel-line routes.
  • Resistance to aging, fire, heat, cold and ozone helps the hose withstand exposure in marine fuel applications.
  • Compatibility with gasoline and diesel blends allows use across multiple marine fuel systems.

Specifications

  • Series: #365
  • Hose type: A1-15 low permeation marine fuel hose
  • Color: Black
  • Length: 50 feet (15 m), boxed
  • Inside diameter: 5/16 inch (7.92 mm)
  • Outside diameter: 0.611 inch (15.5 mm)
  • Tube: Nylon internal barrier, NBR
  • Cover: NBR/PVC blend
  • Reinforcement: Two polyester spirals
  • Temperature range: -20°F to 212°F (-28°C to 100°C)
  • Working pressure: 100 psi (0.69 MPa)
  • Burst pressure: 400 psi (2.76 MPa)
  • Bend radius: 1.75 inches (44.5 mm)
  • Weight: 13.3 lb/100 ft (0.198 kg/m)
  • Fuel compatibility: Gasoline, ethanol blends up to 85%, diesel and biodiesel blends up to B100
  • Approvals: NMMA Type Accepted; CE certified
  • Standards exceeded by #365 series: ABYC H-24 and H-33, SAE J1527, ISO 7840, USCG Type A1-15
  • CARB Executive Order: RM-17-008
  • EPA certification: Low permeation Type A1-10

Specifications

ID Diameter (inches)5/16"
Length (Feet)50'
BrandTrident Marine
Manufacturer part #365-0566
UPC704917010564
Boxed dimensions18 x 18 x 3 in
Shipping weight7.9 lb
Country of originUNITED STATES
