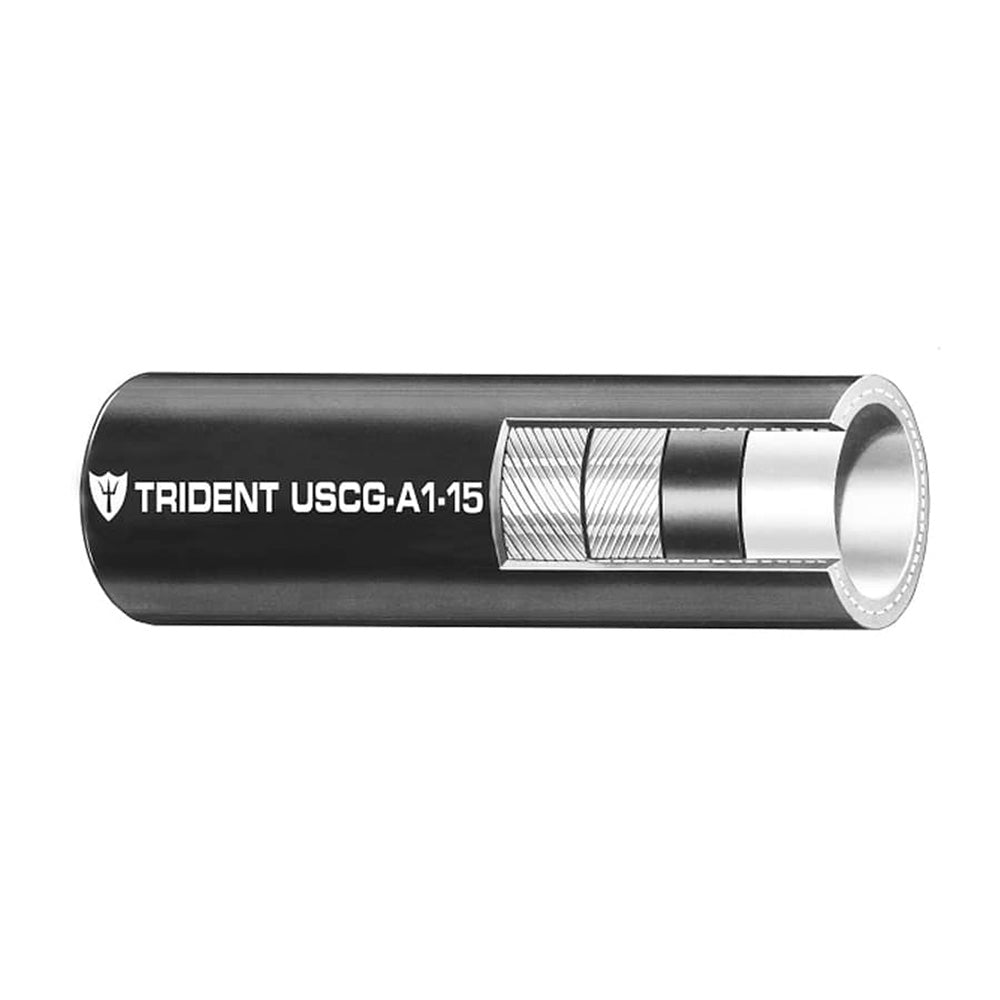

Trident Marine 5/16" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot

This Trident Marine 5/16" black fuel line hose is sold by the foot for marine fuel distribution, return, vent, and transfer use. It is built for gasoline, ethanol blends up to 85%, diesel, and biodiesel blends up to B100.

• Size: 5/16" inner diameter
• Color: Black
• Sold as: By the foot
• Fuel compatibility: Gasoline, ethanol blends up to 85%, diesel, and biodiesel blends up to B100
• Applications: Marine fuel distribution, return, vent, and transfer hose
• Tube: Nylon internal barrier and NBR
• Cover: NBR/PVC blend
• Reinforcement: Polyester 2 spiral
• Temperature range: -20°F to 212°F (-28°C to 100°C)
• Outer diameter: 0.611" (15.5 mm)
• Burst pressure: 400 psi (2.76 mpa)
• Working pressure: 100 psi (0.69 mpa)
• Bend radius: 1.75" (44.5 mm)
• Weight: 13.3 lb per 100 ft. (0.198 kg/m)
• Permeation rate: <10 g/m2/24 hrs (CE10)
• Certifications and standards: NMMA Type Accepted, CE certified, ABYC H-24 and H-33, SAE J1527, ISO 7840, USCG Type A1-15, CARB Executive Order RM-17-008, and EPA Certified low permeation Type A1-10
