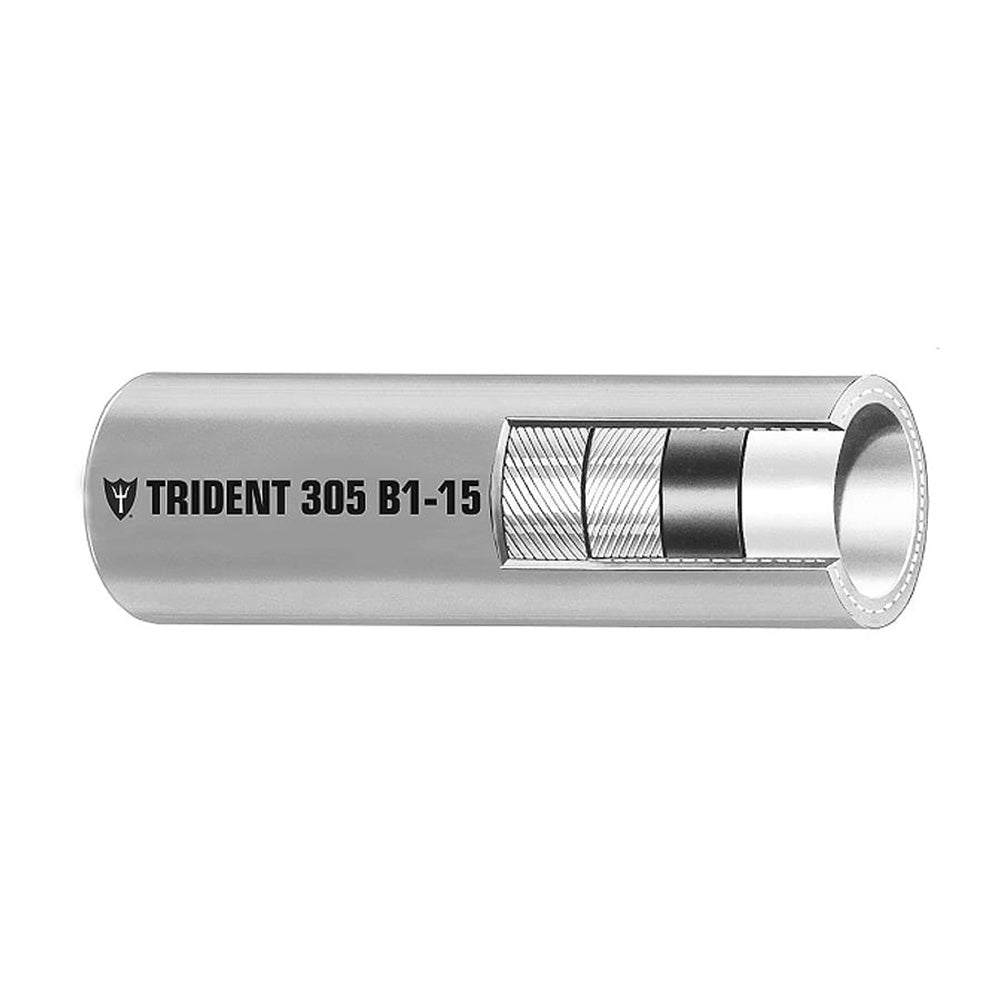

Trident Marine 5/16" Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray - Sold by the Foot

For marine fuel distribution, return, vent and transfer lines, Trident Marine's 5/16-inch outboard fuel hose places a fluoroplastic barrier between the fuel and rubber. Sold by the foot, this gray B1-15 hose supports gasoline blends through E85 and diesel blends through 100% biodiesel.

Key features

• Internal barrier limits fuel permeation and keeps fuel from directly contacting the rubber tube, helping prevent ethanol-related rubber degradation.
• Resistance to aging, heat, cold and ozone helps the hose withstand its operating environment.
• Flexible construction makes routing easier, while fitting retention helps keep connections seated.
• Gasoline and diesel blend compatibility covers a range of marine fuel applications.
• By-the-foot sales let you choose the length for your installation.

Specifications

• Brand: Trident Marine
• Series: #305
• Hose type: B1-15 outboard fuel line
• Inner diameter: 5/16 inch / 7.92 mm
• Outer diameter: 0.500 inch / 12.7 mm
• Tube barrier: Fluoroplastic
• Cover: Gray CPE rubber
• Reinforcement: 2-spiral polyester plies
• Temperature range: -20°F to 212°F / -28°C to 100°C
• Working pressure: 35 psi / 0.24 MPa
• Burst pressure: 175 psi / 1.21 MPa
• Bend radius: 2.5 inches / 63.5 mm
• Weight: 7.8 lb per 100 ft / 0.116 kg per m
• Permeation rate: 5.0 g/m²/24 hours (CE10)
• Fuel compatibility: Gasoline including ethanol blends up to E85; diesel including biodiesel blends up to 100%
• Certifications and approvals: EPA certified; CARB Executive Order for low permeation; NMMA Type Accepted; CE certified
• Standards exceeded: ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15
• Sales unit: Foot
