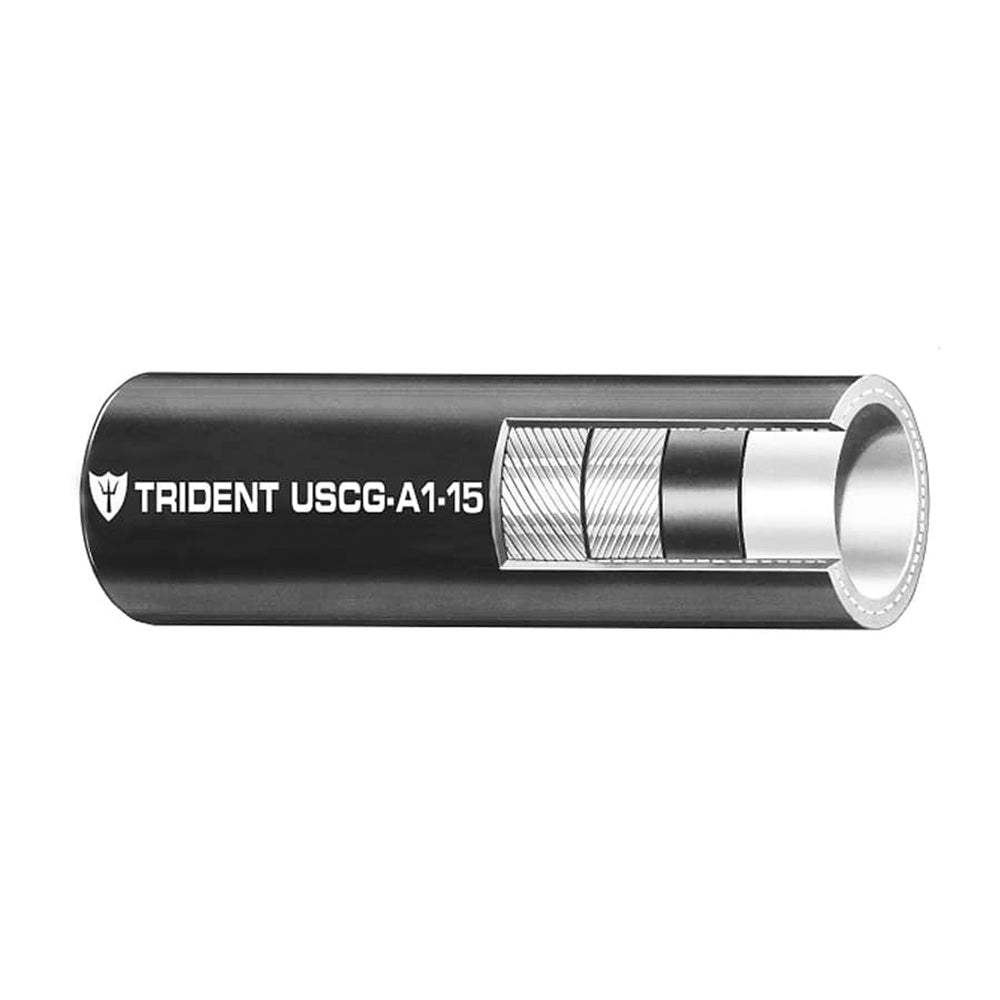

Trident Marine 5/16" A1-15 Reel Low Permeation Fuel Line Hose - Black - Sold by the Foot

The Trident Marine 5/16" A1-15 fuel hose is sold by the foot from a 250 ft. reel for marine fuel system work. It is made for gasoline, alcohol blends, diesel, and bio-diesel applications including distribution, return, vent, and transfer lines.

• Product type: low permeation marine fuel line hose
• Color: black
• Sold as: by the foot from a 250 ft. reel
• Fuel compatibility: gasoline including ethanol blends up to 85%, diesel, and bio diesel blends up to B100
• Application: distribution, return, vent, and transfer marine fuel hose
• Tube: nylon internal barrier, NBR
• Cover: NBR/PVC blend
• Reinforcement: polyester 2 spiral
• Temperature range: -20°F to 212°F (-28°C to 100°C)
• Inner diameter: 5/16" / 7.92 mm
• Outer diameter: 0.611" / 15.5 mm
• Burst pressure: 400 psi / 2.76 mpa
• Working pressure: 100 psi / 0.69 mpa
• Bend radius: 1.75" / 44.5 mm
• Weight: 13.3 lb/100 ft. / 0.198 kg/m
• Permeation rate: <10 g/m2/24 hrs (CE10)
• Accepted and certified: NMMA Type Accepted and CE certified
• Standards: exceeds ABYC H-24 and H-33, SAE J1527, ISO 7840, USCG Type A1-15, CARB Executive Order RM-17-008, and EPA Certified low permeation Type A1-10
• Return note: this product may not be returned to the original point of purchase; contact the manufacturer with issues or concerns
