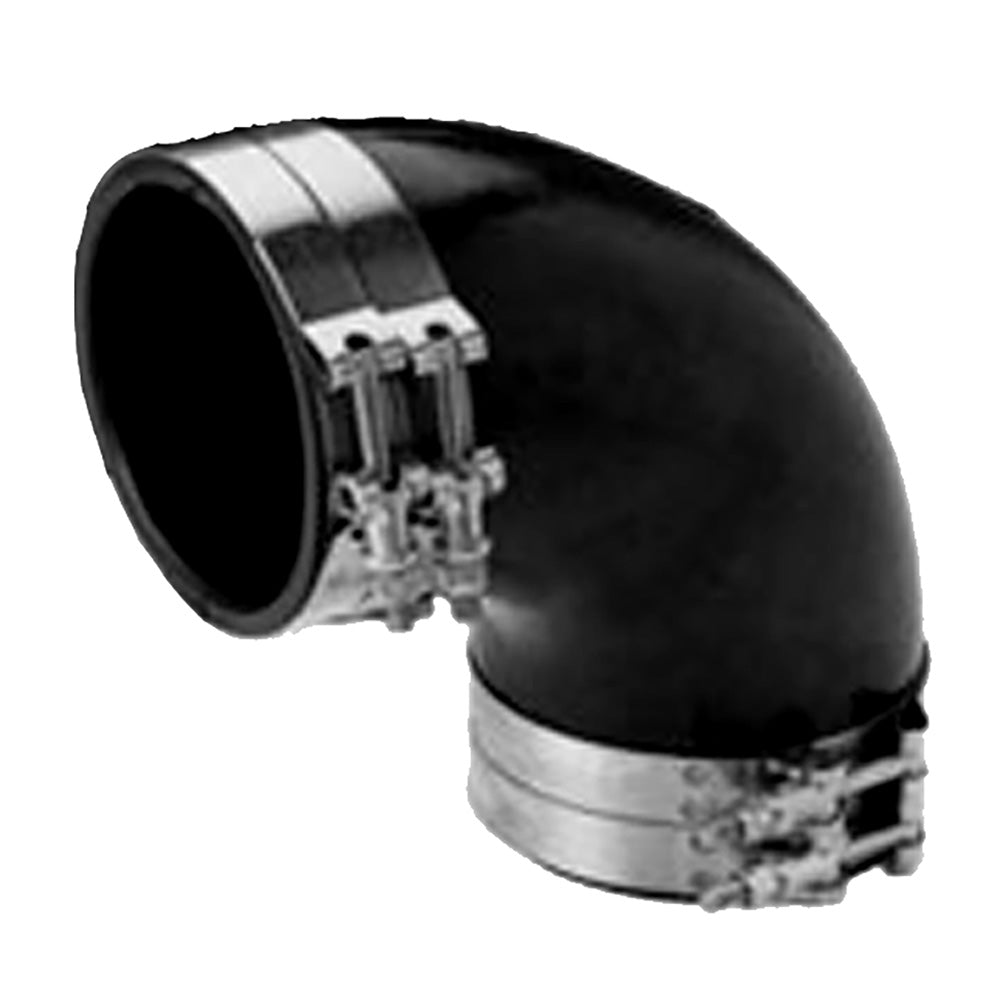

Trident Marine 4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

Trident Marine 4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

OM-TRIDENTMARIN-4ID90-TRL490SS

$104.70
$161.19 $104.70
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

4"ID Diameter (inches)

A 90-degree turn in a marine wet exhaust connection calls for an elbow with the right dimensions. This Trident Marine molded elbow has a 4-inch inside diameter and comes with four stainless steel T-bolt clamps for the connection.

Key features

  • Molded 90-degree shape accommodates a right-angle wet exhaust connection.
  • High-temperature EPDM rubber handles temperatures up to 250°F (121°C).
  • Resistance to ozone, salt water, diesel fumes and splashes helps the elbow withstand marine exposure.
  • The rubber resists cold, heat and aging for demanding exhaust service.
  • Four included stainless steel T-bolt clamps supply the clamping hardware.
  • Construction exceeds the listed marine exhaust standards.

Specifications

  • Brand: Trident Marine
  • Application: Marine wet exhaust connection
  • Material: Black EPDM rubber
  • Bore and cover: Smooth
  • Inside diameter: 4 inches / 101.6 mm
  • Elbow angle: 90 degrees
  • Maximum temperature: 250°F / 121°C

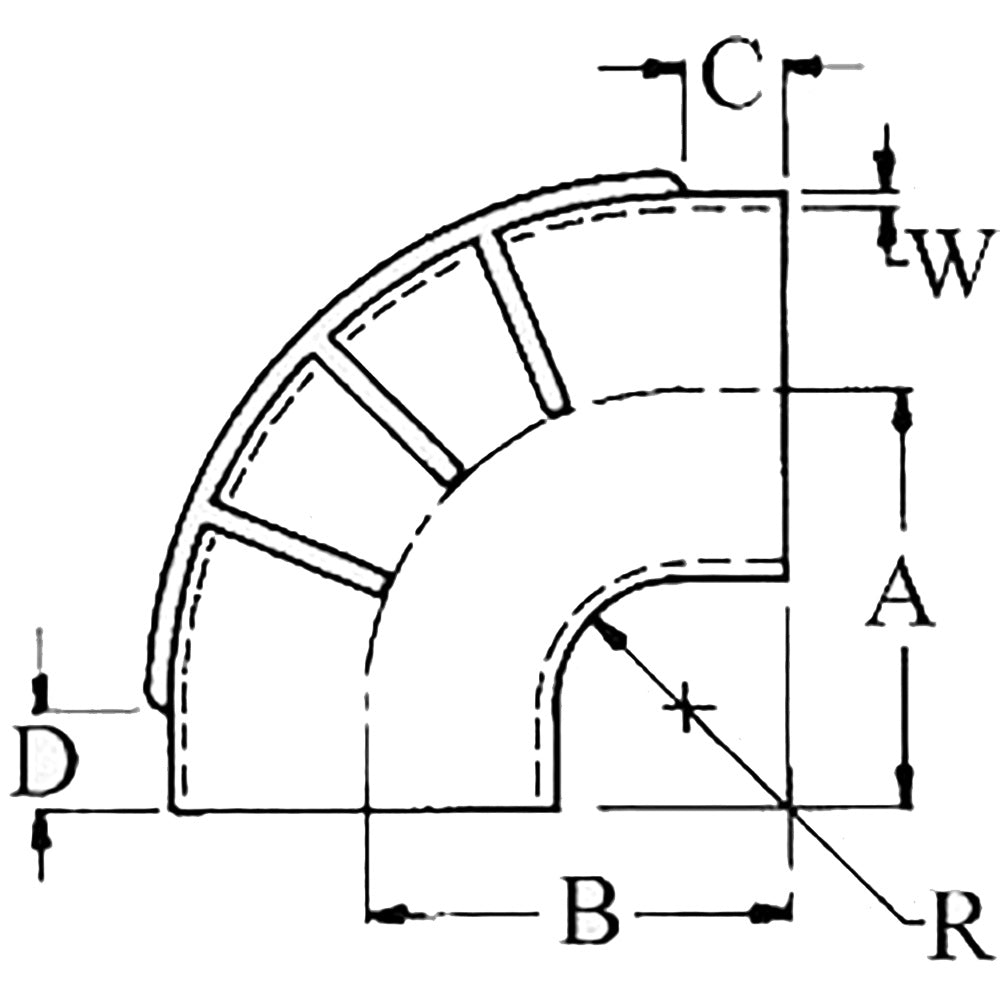

  • Dimension A: 5.75 inches / 146 mm
  • Dimension B: 5.75 inches / 146 mm
  • Dimension C: 1.75 inches / 44.4 mm
  • Dimension D: 1.75 inches / 44.4 mm
  • Dimension R: 2 inches / 50.8 mm
  • Dimension W: 0.25 inch / 6.4 mm
  • Standards exceeded: SAE J2006-R1 and ABYC & NMMA P-1 exhaust standards
  • Included clamps: Four stainless steel T-bolt clamps

Specifications

ID Diameter (inches)4"
BrandTrident Marine
Manufacturer part #TRL-490-S/S
UPC704917000411
Boxed dimensions8 x 7 x 7 in
Shipping weight2.6 lb
