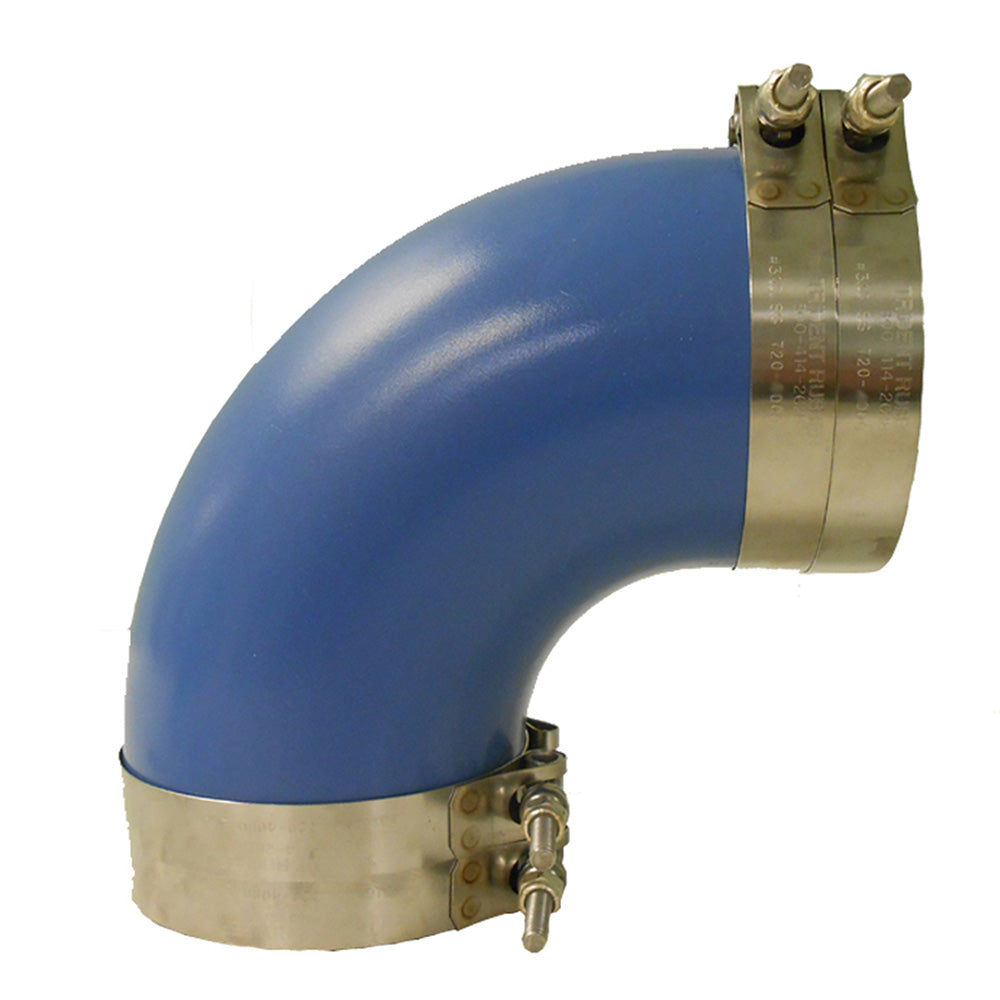

Trident Marine 4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

Trident Marine 4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

OM-TRIDENTMARIN-4ID90-290V4000SS

$164.36
$269.33 $164.36
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Trident Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

4"ID Diameter (inches)

This Trident Marine wet exhaust elbow is a 4-inch ID, 90-degree molded connection for marine exhaust routing. It uses blue silicone EPDM blended rubber, includes four stainless steel T-bolt clamps, and is built for wet exhaust service up to the listed temperature rating.

  • Product type: Molded wet exhaust elbow
  • Angle: 90 degrees
  • Inner diameter: 4 in / 101.6mm
  • Material: Blue silicone EPDM blended rubber
  • Clamp type: Four stainless steel T-bolt clamps included
  • Temperature rating: Up to 350F / 177C maximum continuous
  • Resistance noted: Ozone, salt water, diesel fumes, splash, cold, heat, and aging
  • Standards listed: Exceeds SAE J2006-R1 and ABYC and NMMA P-1 exhaust standards

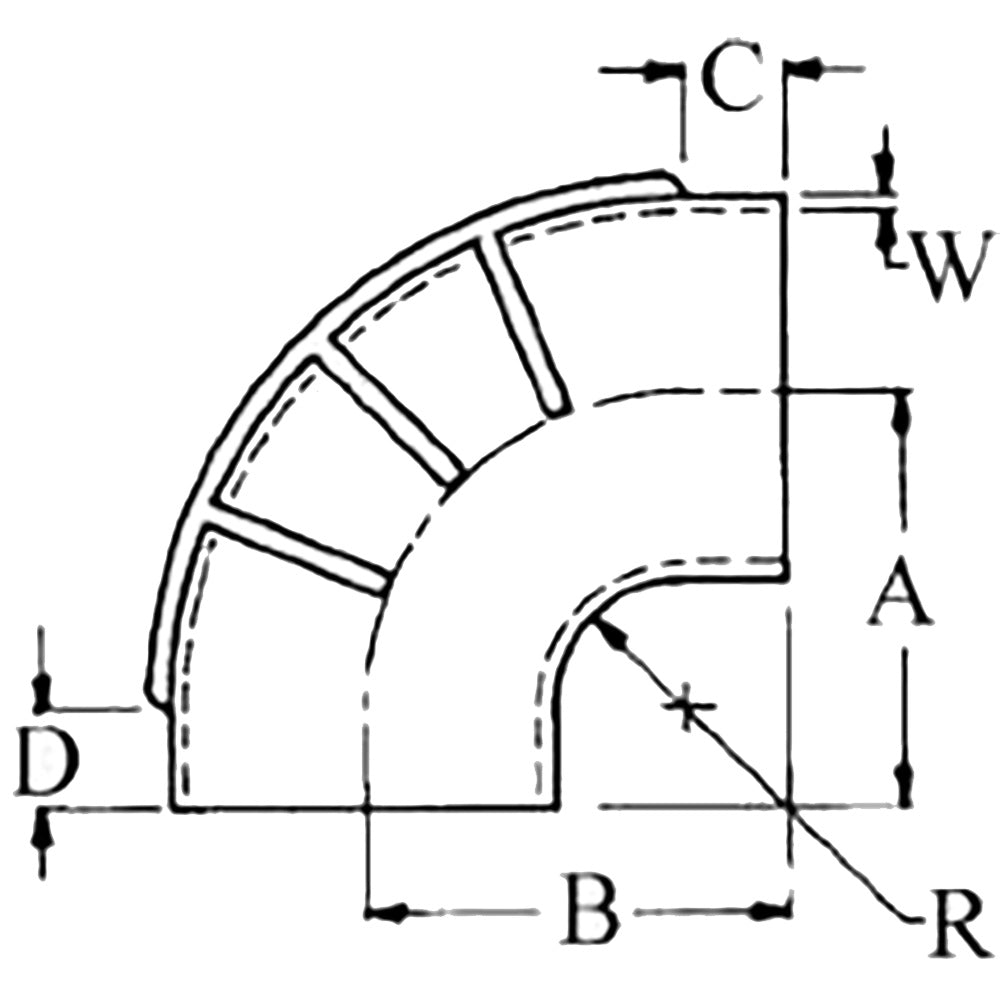

  • Dimension A: 5.75 in / 146mm
  • Dimension B: 5.75 in / 146mm
  • Dimension C: 1.75 in / 44.4mm
  • Dimension D: 1.50 in / 38.1mm
  • Dimension R: 2 in / 50.8mm
  • Dimension W: 0.25 in / 6.4mm

Specifications

ID Diameter (inches)4"
BrandTrident Marine
Manufacturer part #290V4000-S/S
UPC704917002071
Boxed dimensions8 x 8 x 8 in
Shipping weight2.6 lb
