• Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (3/4" – 1-1/8") Clamping Range - 10-Pack - SAE Size 10
1 1

Trident Marine

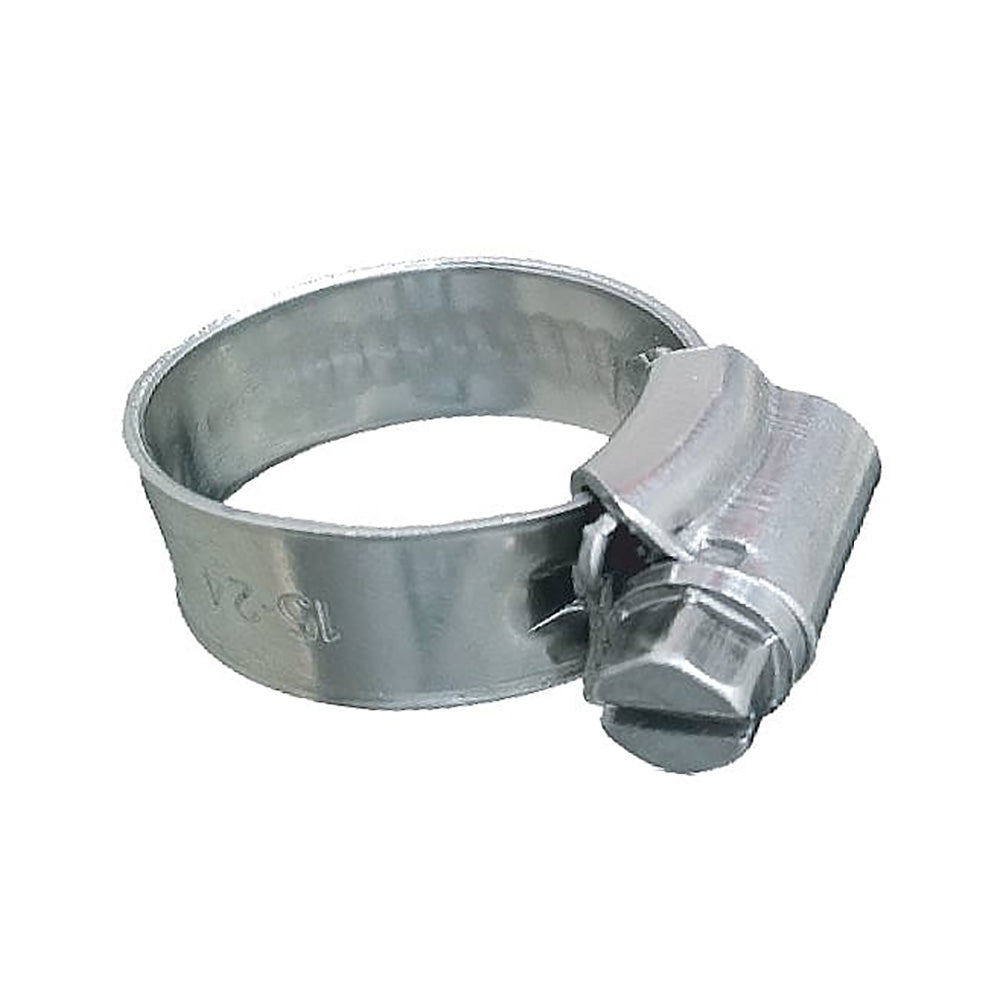

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (3/4" – 1-1/8") Clamping Range - 10-Pack - SAE Size 10

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (3/4" – 1-1/8") Clamping Range - 10-Pack - SAE Size 10

OM-TRIDENTMARIN-316SSNON-7050581

$27.80
$29.29 $27.80
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left
Authorized Trident Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (3/4" – 1-1/8") Clamping Range - 10-Pack - SAE Size 10

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact “HD NON-PERF” Worm Gear Hose Clamp. The 9.7 mm (0.382”) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55”) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

  • The screw head is 7mm
  • Long service life and safety for most general-purpose hose applications and connections

Recommendations:

  • Measure hose O.D. before selecting clamp size for proper fit
  • Double clamp on each hose end for critical applications

Construction:

  • Band & Housing: 316 Stainless Steel 9.7 mm wide band – 0.8mm thick
  • Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

  • SAE Size: 10
  • Hose Inner Diameter: (inch) 1/2" – 5/8"
  • Clamping Range: (inch) 3/4" – 1 1/8"  / (mm) 19-28
  • Recommended Torque Inch lbs: 25-35

Specifications

BrandTrident Marine
Manufacturer part #705-0581
UPC704917019147
Boxed dimensions3 x 3 x 3 in
Shipping weight0.25 lb
Country of originUNITED STATES
