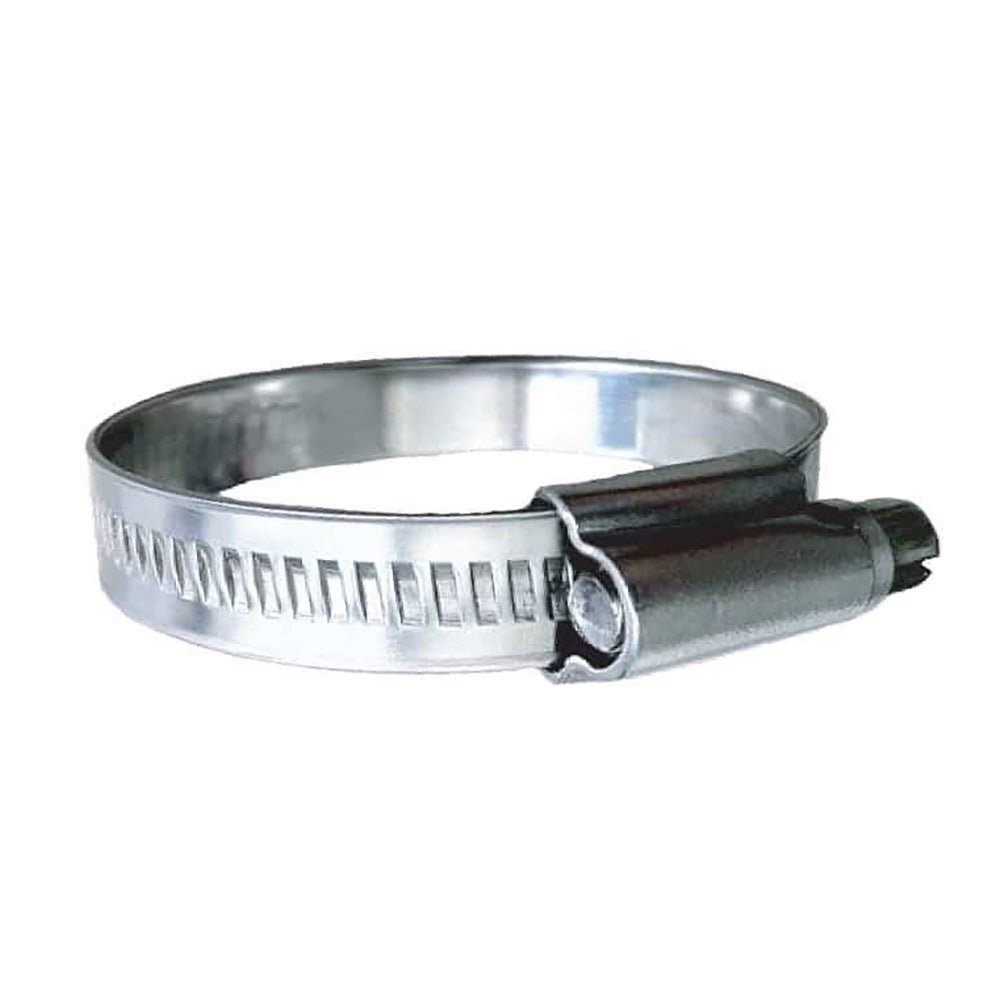

• Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/4" – 1-3/4") Clamping Range - 10-Pack - SAE Size 20
1 1

Trident Marine

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/4" – 1-3/4") Clamping Range - 10-Pack - SAE Size 20

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/4" – 1-3/4") Clamping Range - 10-Pack - SAE Size 20

OM-TRIDENTMARIN-316SSNON-7101141

$41.74
$54.57 $41.74
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Trident Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Trident Marine SAE Size 20 worm gear hose clamp is built for marine hose connections that need corrosion-resistant stainless hardware. This 10-pack fits hoses in the 1-1/4 inch to 1-3/4 inch clamping range and uses a smooth, non-perforated band to help protect the hose surface.

  • Material: AISI 316 stainless steel band, housing and screw drive
  • Clamp type: HD non-perforated worm gear hose clamp
  • Band width: 15/32 inch; 11.7 mm wide
  • Band thickness: 0.9 mm
  • Housing: One-piece 16 mm wide housing
  • Screw head: 7 mm
  • SAE size: 20
  • Hose inner diameter: 1 inch to 1-1/4 inch
  • Clamping range: 1-1/4 inch to 1-3/4 inch; 32 mm to 44 mm
  • Recommended torque: 35 to 45 inch-lbs
  • Quantity: 10 clamps

Specifications

BrandTrident Marine
Manufacturer part #710-1141
UPC704917019246
Boxed dimensions3 x 3 x 3 in
Shipping weight0.5 lb
Country of originUNITED STATES

Manuals & documents

Quick start guidePDF ↓
