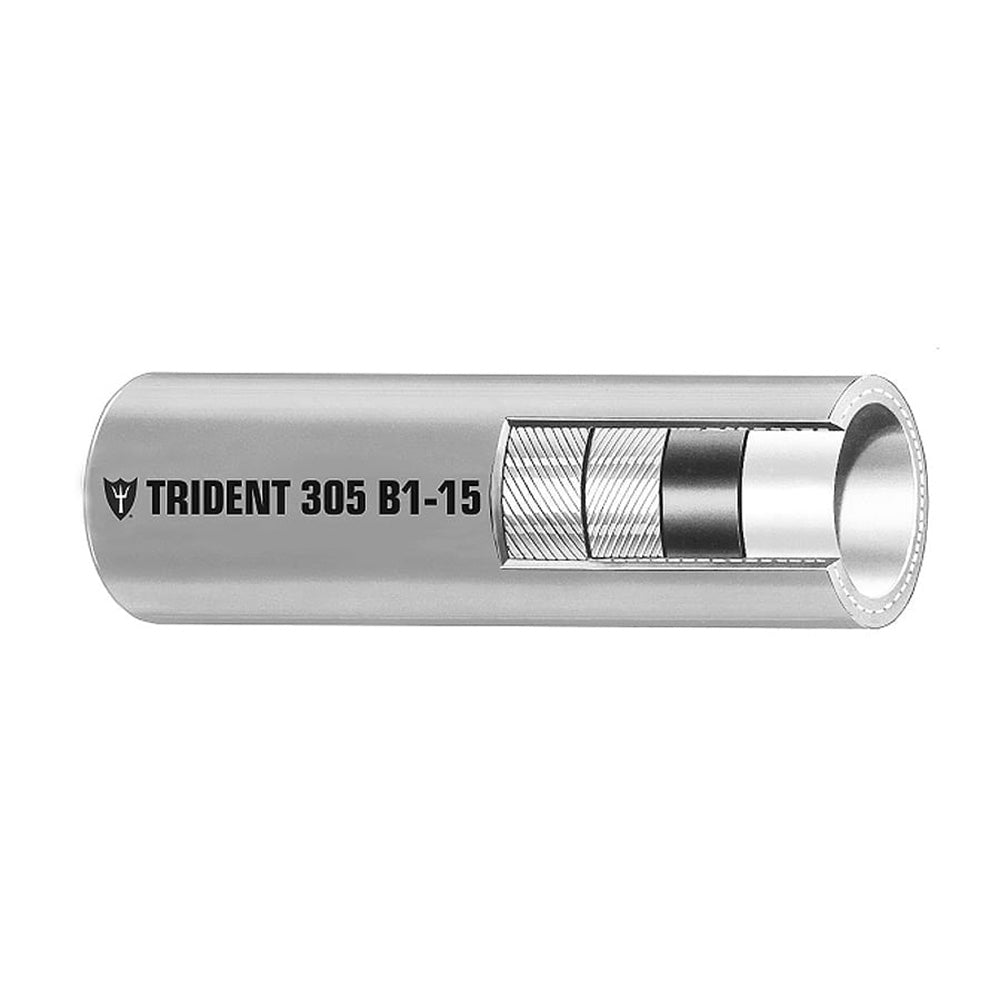

Trident Marine 3/8" x 50' Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray

For marine fuel distribution, return, vent and transfer lines, Trident Marine offers this gray 3/8-inch hose in a boxed 50-foot length. An internal fluoroplastic barrier separates fuel from the rubber to reduce permeation and help prevent ethanol-related tube degradation.

Key features

• The internal barrier helps prevent rubber fragments caused by ethanol degradation from reaching the engine.
• Compatibility with gasoline, ethanol blends up to E85, diesel and biodiesel blends up to 100% supports a range of fuel systems.
• Flexible construction helps with routing, while fitting retention helps keep connections secure.
• Resistance to fuel, aging, heat, cold and ozone helps the hose withstand marine operating conditions.

Specifications

• Brand: Trident Marine
• Series: 305
• Type: B1-15 marine fuel hose
• Inner diameter: 3/8 inch (9.50 mm)
• Outer diameter: 0.588 inch (14.9 mm)
• Length: 50 feet (15 m), boxed
• Tube: Fluoroplastic internal barrier
• Cover: Gray CPE rubber
• Reinforcement: 2-spiral polyester plies
• Temperature range: -20°F to 212°F (-28°C to 100°C)
• Working pressure: 35 psi (0.24 MPa)
• Burst pressure: 175 psi (1.21 MPa)
• Bend radius: 4 inches (101.6 mm)
• Weight: 10.5 pounds per 100 feet (0.156 kg/m)
• Permeation rate: 5.0 g/m²/24 hours (CE10)
• Certifications and approvals: EPA certified, CARB Executive Order for low permeation, NMMA Type Accepted, CE certified
• Standards exceeded: ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15
