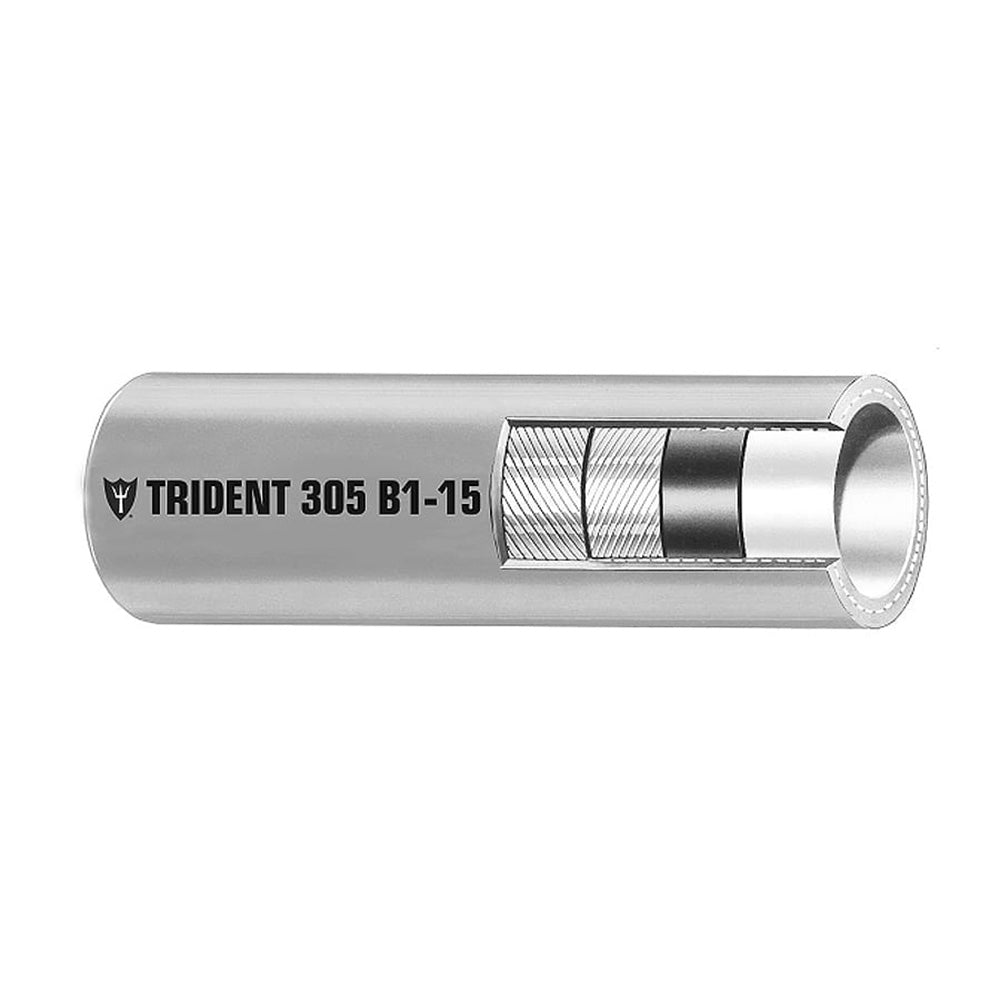

Trident Marine 3/8" Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray - Sold by the Foot

Route fuel on your boat with Trident Marine's gray 3/8-inch barrier-lined outboard fuel hose, available by the foot. Its internal liner separates fuel from the rubber tube, reducing permeation and preventing ethanol-related breakdown of the tube.

Key features

• The fluoroplastic barrier helps prevent rubber fragments caused by ethanol degradation from entering the fuel supply.
• Compatibility with gasoline and diesel blends gives you options across the stated fuel ranges.
• Resistance to aging, heat, cold and ozone helps the hose withstand environmental exposure.
• Flexible construction assists routing, while fitting retention helps keep connections secure.
• By-the-foot sales let you order hose length to suit your installation.
• Low-permeation construction carries EPA certification and a CARB Executive Order.

Specifications

• Brand: Trident Marine
• Series: #305
• Hose type: B1-15 barrier-lined outboard fuel hose
• Sales unit: Foot
• Inner diameter: 3/8 inch / 9.50 mm
• Outer diameter: 0.588 inch / 14.9 mm
• Tube barrier: Fluoroplastic
• Cover: Gray CPE rubber
• Reinforcement: 2 spiral polyester plies
• Temperature range: -20°F to 212°F (-28°C to 100°C)
• Burst pressure: 175 psi / 1.21 MPa
• Working pressure: 35 psi / 0.24 MPa
• Bend radius: 4 inches / 101.6 mm
• Weight: 10.5 lb per 100 ft / 0.156 kg per m
• Permeation rate: 5.0 g/m²/24 hours (CE10)
• Gasoline compatibility: Ethanol blends up to E85
• Diesel compatibility: Biodiesel blends up to 100%
• Applications: Marine fuel distribution, return, vent and transfer
• Certifications and acceptance: EPA certified, CARB Executive Order for low permeation, NMMA Type Accepted, CE certified
• Standards exceeded by #305 series: ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15
