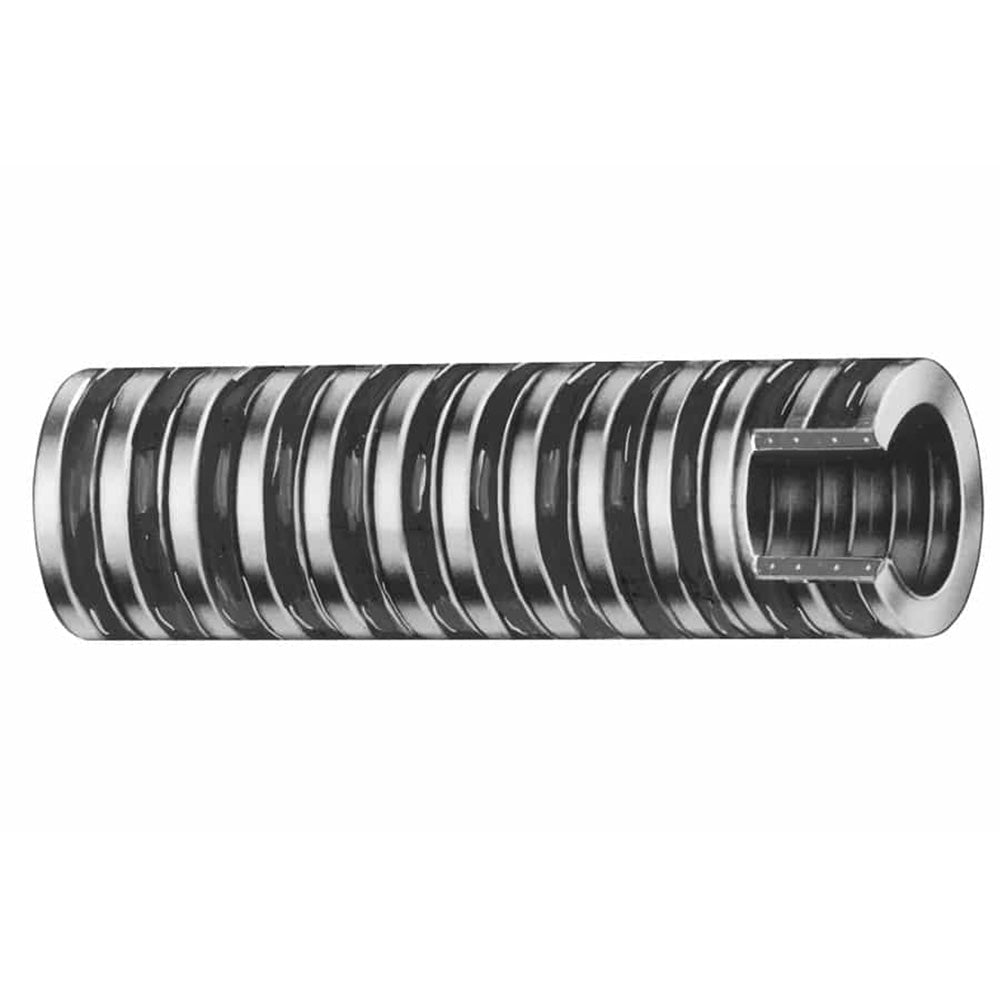

Trident Marine 3/4" Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear w/Black Helix - Sold by the Foot

The Trident Marine 3/4" Heavy Duty PVC Bilge and Livewell Hose is sold by the foot for marine plumbing runs. Its clear vinyl body with a black helix is made for bilge, livewell, drain, and scupper line applications where the specified size and pressure rating fit the job.

• Sold as: By the foot
• Application: Bilge and livewell hose
• Series note: 147 series is flexible, but less flexible than Trident 149 series hoses
• Tube and cover: Clear vinyl reinforced with black helix
• Color: Clear with black helix
• Reinforcement: PVC helix
• Inner diameter: 3/4" / 19 mm
• Outer diameter: 0.968" / 24.6 mm
• Temperature range: 10°F-120°F (-12°C-49°C)
• Working pressure: 28 PSI Vac In./Hg
• Burst pressure: 4 x working pressure
• Weight: 11 lb per 50 ft. / 0.33 kg/m
• Bend radius: 2.25" / 57.2 mm
• Installation note: No cuffs are required
