Trident Marine 3-1/2" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

Trident Marine 3-1/2" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

OM-TRIDENTMARIN-312-TRL3545SS

$87.89
$134.48 $87.89
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Trident Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

3-1/2"ID Diameter (inches)

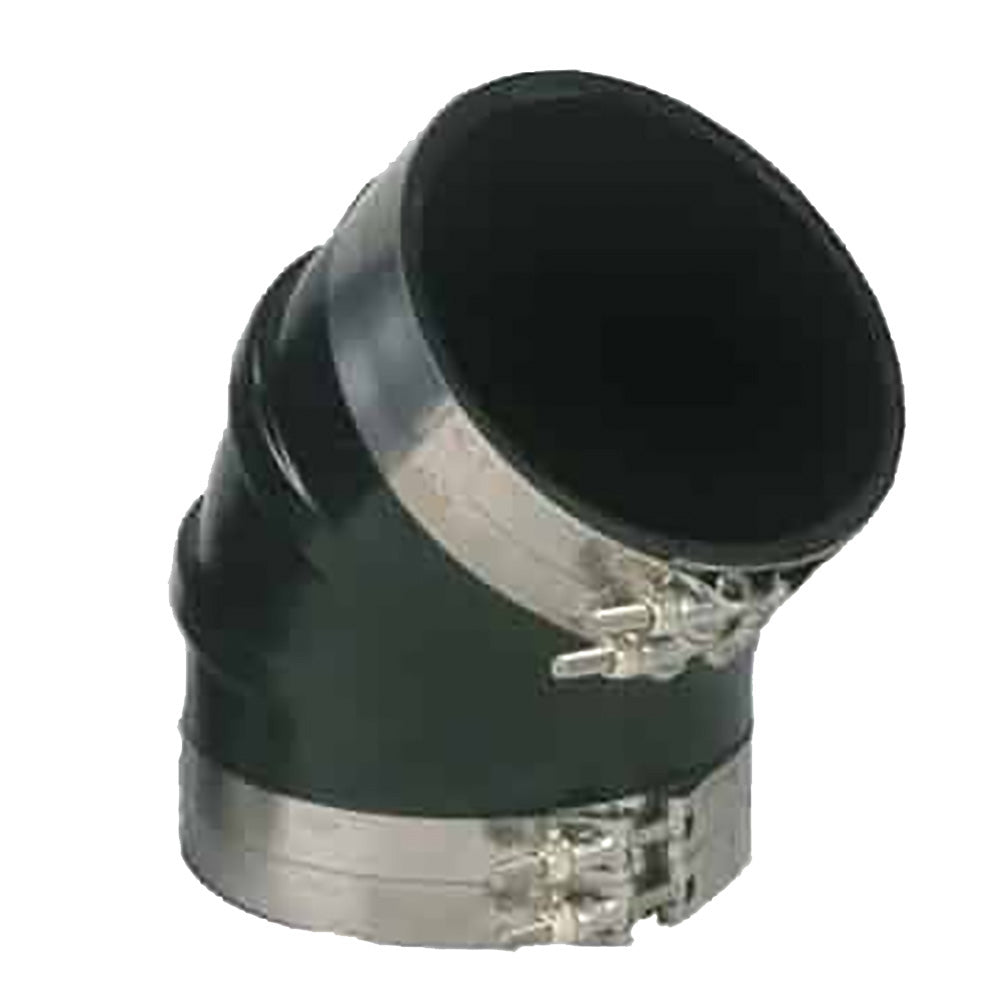

This Trident Marine wet exhaust elbow is a 45-degree molded EPDM rubber connection for 3-1/2 inch I.D. exhaust hose. It comes with four T-bolt clamps and is built for marine wet exhaust service where heat, salt water and diesel exposure are expected.

  • Inside diameter: 3.5 inch / 88.9 mm
  • Outside diameter: 4.0 inch / 101.6 mm
  • Elbow angle: 45 degrees
  • Material: black high-temperature EPDM rubber
  • Temperature range: up to 250°F / 121°C

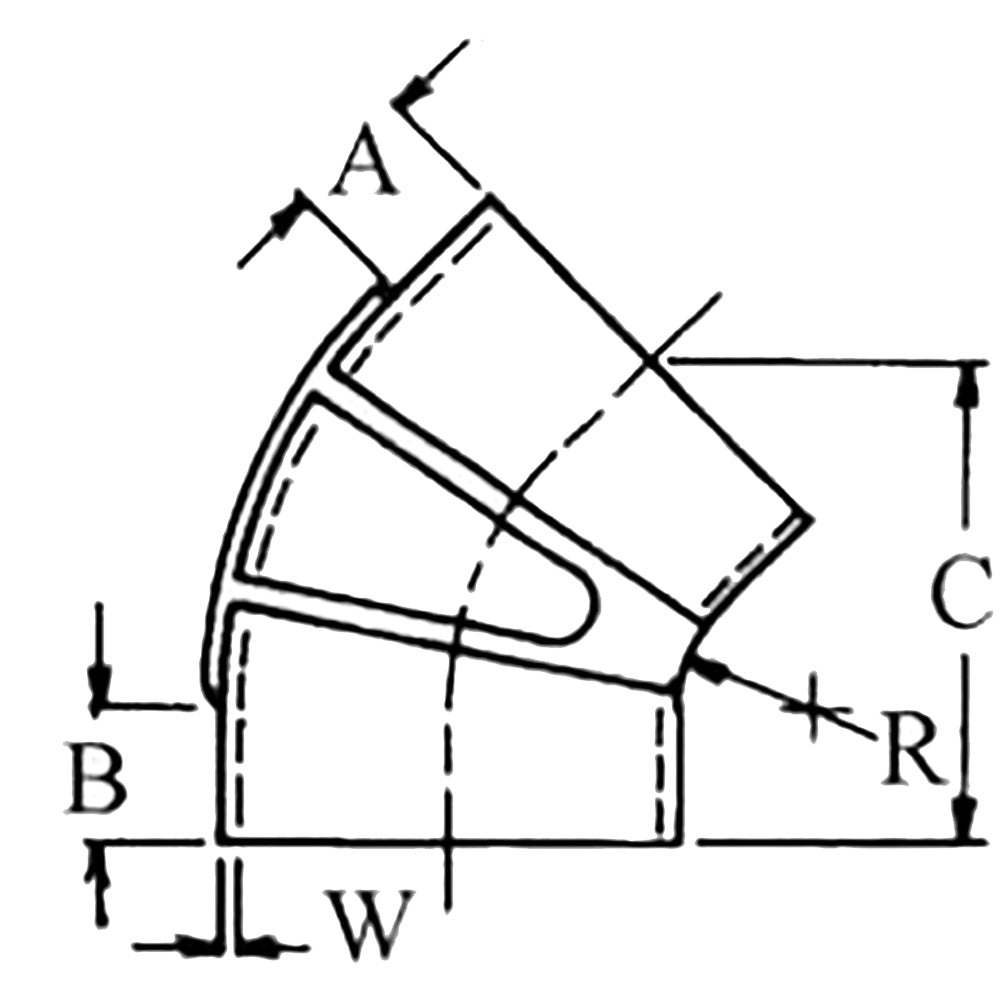

  • A: 1.5 inch / 38.1 mm
  • B: 1.5 inch / 38.1 mm
  • C: 5.5 inch / 139.7 mm
  • W: 0.25 inch / 6.35 mm
  • Weight: 0.7 lb each / 0.32 kg each
  • Includes four stainless steel T-bolt clamps
  • Smooth bore and cover
  • Resistance to ozone, salt water, diesel fumes and splashes, cold, heat and aging
  • Exceeds SAE J2006-R1 and ABYC and NMMA P-1 exhaust standards
  • Reinforcing ribs are used on 6 inch I.D. and larger elbows

Specifications

ID Diameter (inches)3-1/2"
BrandTrident Marine
Manufacturer part #TRL-3545-S/S
UPC704917001500
Boxed dimensions8 x 8 x 7 in
Shipping weight1.7 lb
