• Trident Marine 1-1/2" Type A2 Fuel Fill Hose - Sold by the Foot
1 1

Trident Marine

Trident Marine 1-1/2" Type A2 Fuel Fill Hose - Sold by the Foot

Trident Marine 1-1/2" Type A2 Fuel Fill Hose - Sold by the Foot

OM-TRIDENTMARIN-112-3271126FT

$23.67
$23.67
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 2 left
Free standard shipping · every U.S. order, no minimum
Authorized Trident Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

1-1/2"ID Diameter (inches)
Sold By The FootLength (Feet)

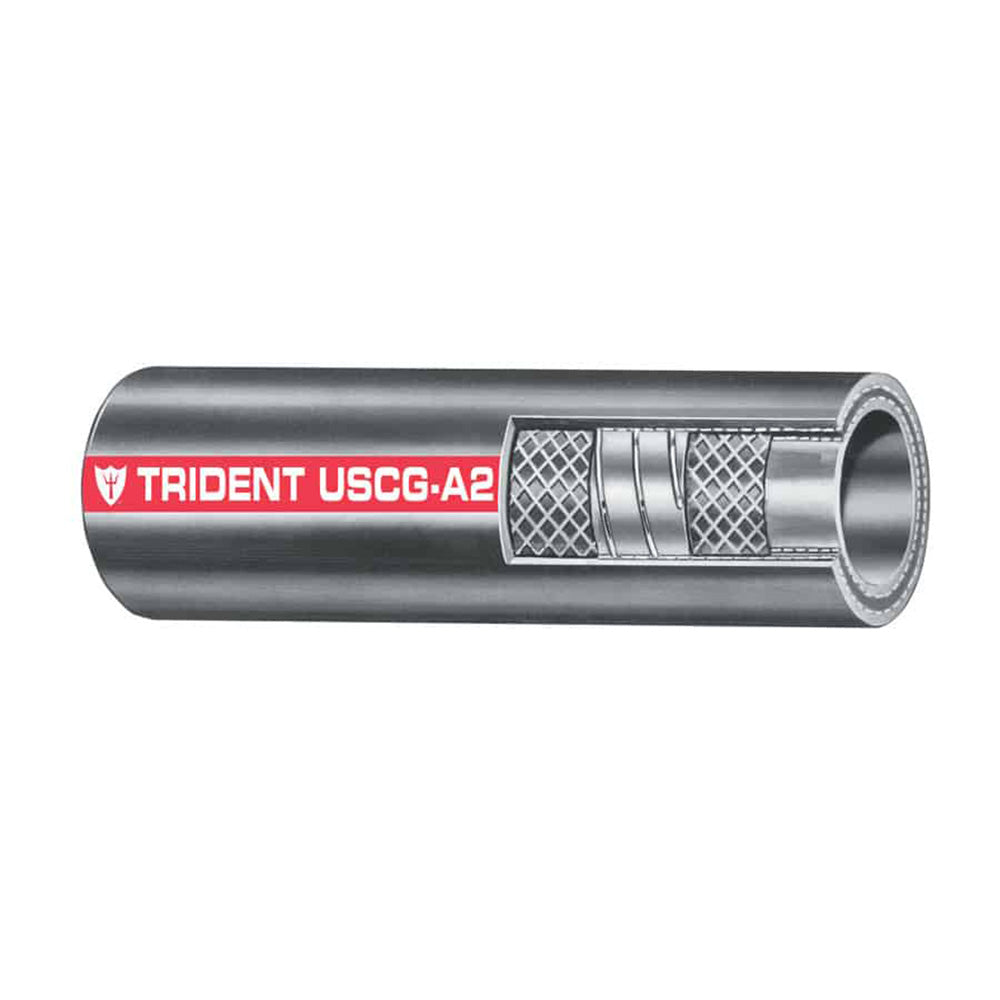

This Trident Marine Type A2 fuel fill hose is sold by the foot for marine fuel fill, vent, and diesel distribution applications. It is a 1-1/2" inside-diameter hose approved for gasoline, alcohol blends, diesel, and bio-diesel.

  • Inside diameter: 1-1/2" / 38 mm
  • Outside diameter: 2" / 51 mm
  • Wall thickness: 0.25" / 6.4 mm
  • Working pressure: 60 psi / 0.41 mpa
  • Bend radius: 5.5" / 140 mm
  • Temperature range: -20°F to 212°F / -20°C to 100°C
  • Tube and cover: NBR / Neoprene
  • Reinforcement: High tenacity polyester 2 spiral with spring steel helix
  • Fuel compatibility: Gasoline, ethanol blends, diesel, and bio-diesel blends
  • Standards: Exceeds ABYC H-24 and H-33, SAE J1527, ISO 7840, and USCG Type A2
  • Approvals: NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved
  • Sale format: Sold by the foot

Specifications

ID Diameter (inches)1-1/2"
Length (Feet)Sold By The Foot
BrandTrident Marine
Manufacturer part #327-1126-FT
Boxed dimensions12 x 2 x 2 in
Shipping weight1.0 lb
Country of originUNITED STATES
