Overview

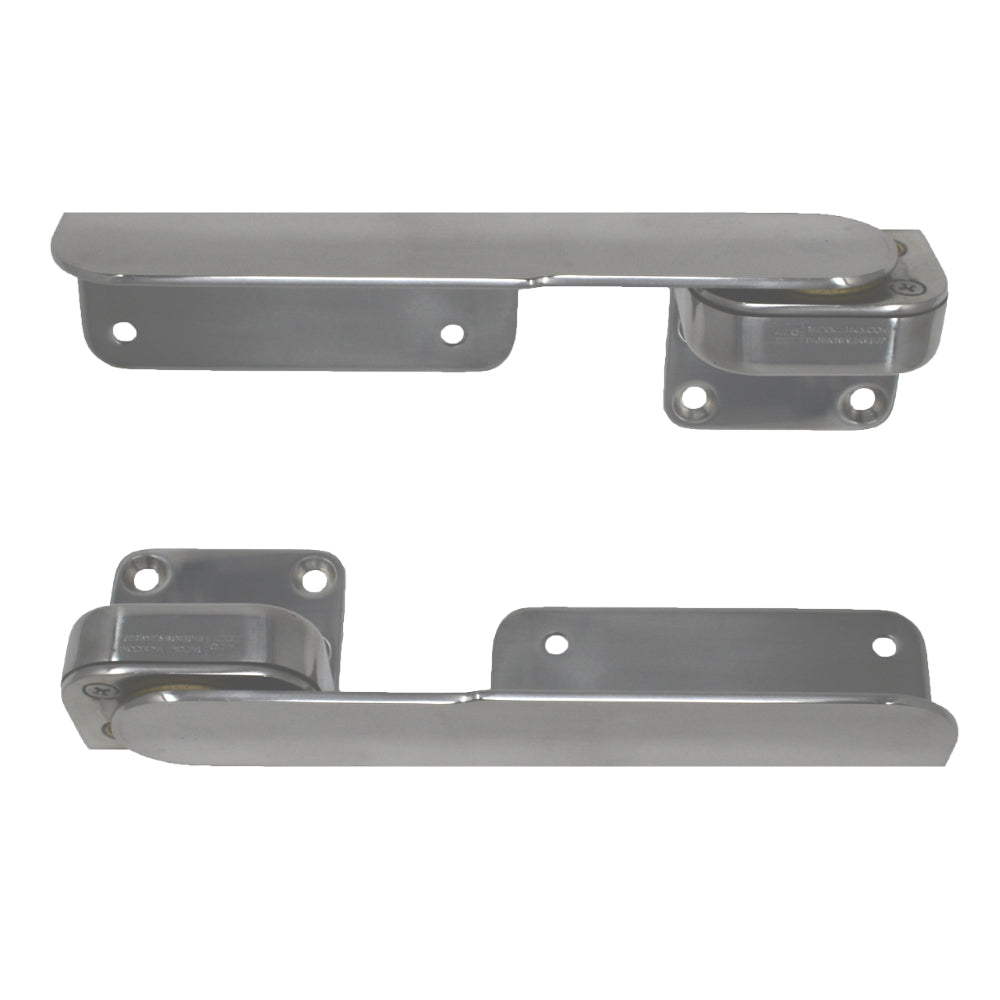

Give a boat's sunpad, bolster or lounge backrest adjustable support with TACO Marine Command Ratchet Hinges. Supplied as a pair, these hinges ratchet through four positions and return to horizontal when moved to 100 degrees.
Key features
- Locking steps of 15 degrees let you adjust the inclination, beginning at 30 degrees.
- Accommodates cushions up to 4 inches thick for sunpad and seating applications.
- Brass bearings provide durability within the ratcheting mechanism.
- Highly polished Type-316L stainless steel provides a finished appearance for visible hardware.
- Countersunk mounting holes accept either #10 fasteners or 1/4-20 bolts.
Specifications

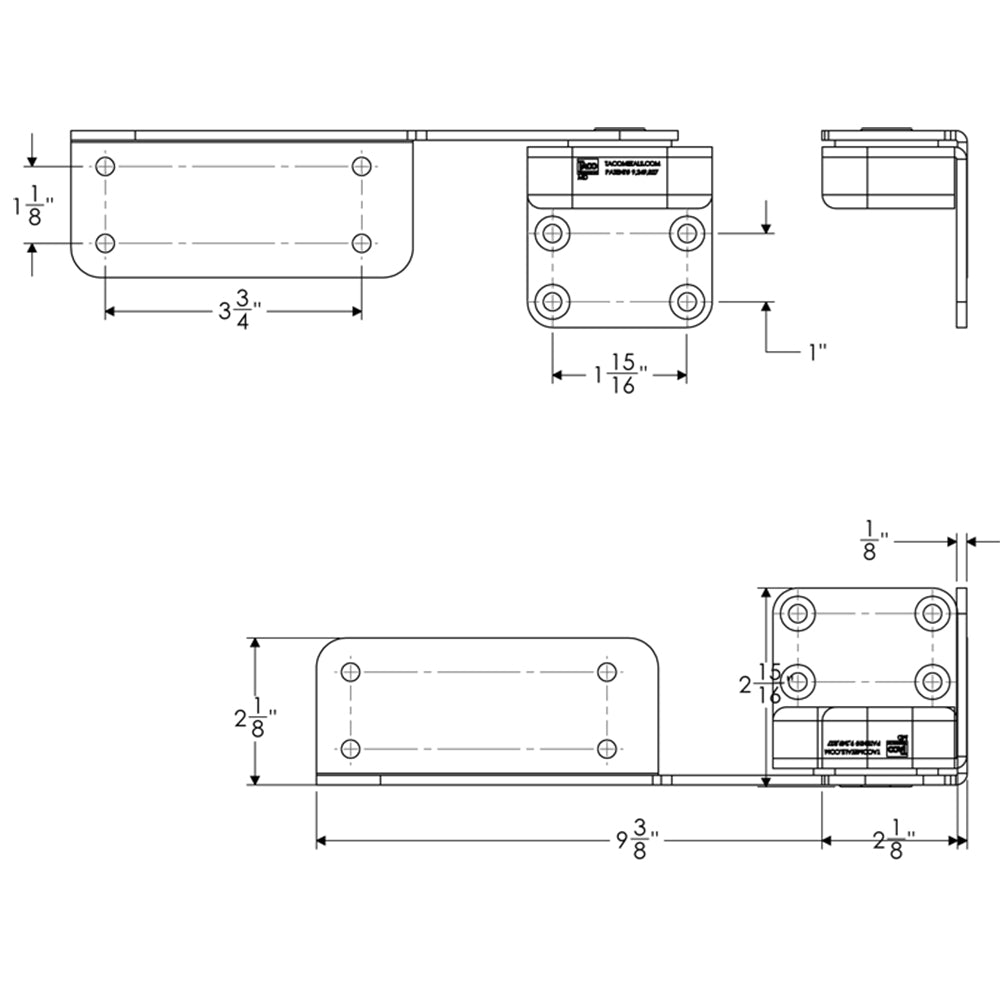

- Length: 9-3/8 inches
- Material: Type-316L marine-grade stainless steel with brass bearings
- Finish: Highly polished
- Adjustment positions: 4
- Locking increments: 15 degrees, starting at 30 degrees
- Horizontal return angle: 100 degrees
- Maximum cushion thickness: 4 inches
- Mounting: #10 fastener or 1/4-20 bolt
- Standard: ABYC H-31, Class B application
- Torque load for pair: 250 lb-ft
- Quantity: Pair
- Warranty: 5-year limited
Specifications
| Brand | TACO Marine |
|---|---|
| Manufacturer part # | H25-0016 |
| UPC | 630838084042 |
| Boxed dimensions | 10 x 3 x 3 in |
| Shipping weight | 4.35 lb |
| Country of origin | CHINA |
