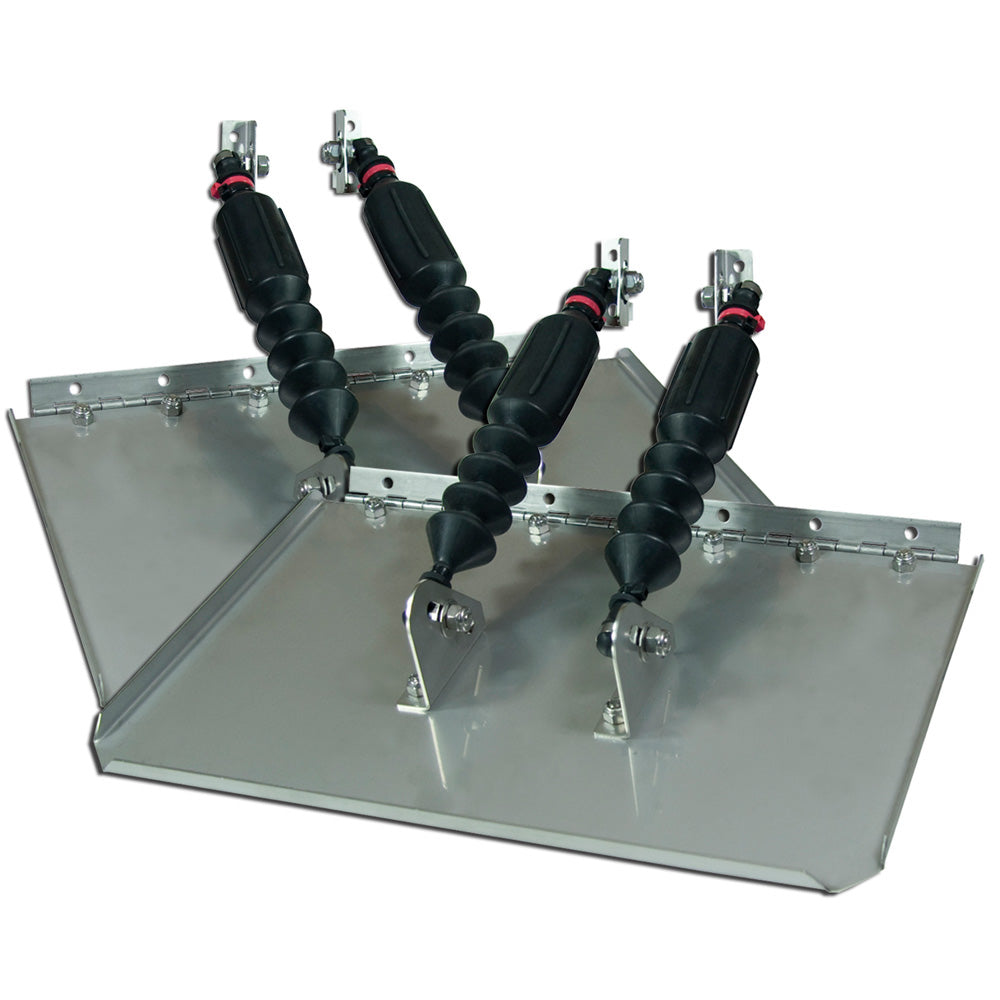

Smart Tabs II Series Trim Tabs by Lectrotab 16" X 10" f/23'-30' Boats - 8500lbs Max

These Lectrotab Smart Tabs II trim tabs are an automatic trim tab system for 23 ft. to 30 ft. boats. They use nitrogen gas actuators instead of helm switches, electric wiring, or hydraulic controls, so trim response is set at installation and adjusts while underway.

• Tab size: 16 in. x 10 in.
• Boat length: for 23 ft. to 30 ft. boats
• Maximum boat weight: 8,500 lbs. gross weight
• Boat width: for boats under 10 ft. wide
• Series: ST1610 Smart Tabs II
• Actuation: two nitrogen gas actuators per plate
• Operation: fully automatic with no operator adjustment while underway
• Connections: no electric or hydraulic connections
• Installation fit: intended for low-profile fiberglass, aluminum, and RIB design boats with transom widths less than 10 ft.
• Function: holds the trim plate down during acceleration to provide stern lift
• Adjustment: actuator load rating and trim plate adjustment are set during installation
• Claimed effect: may reduce minimum planing speed by up to 33%
