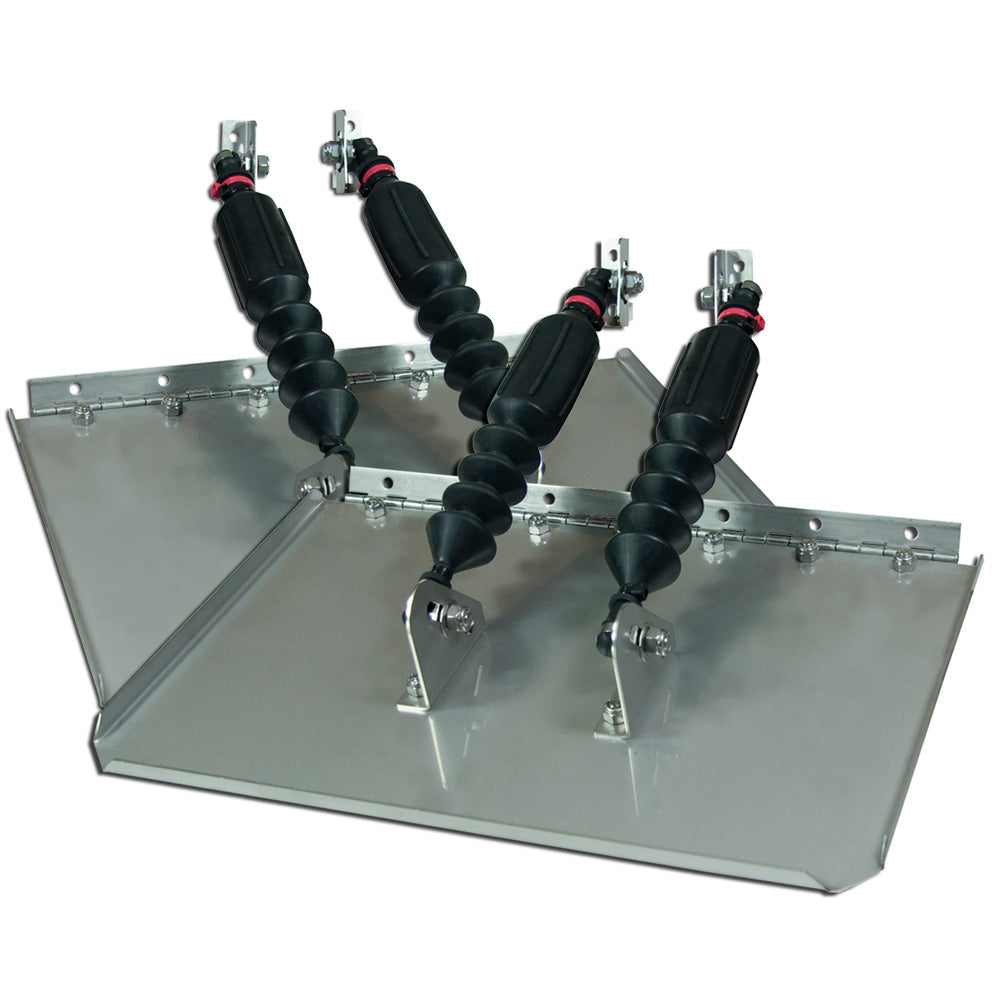

Smart Tabs II Series Trim Tabs by Lectrotab 16" X 10" f/23'-30' Boats - 6500lbs Max

Smart Tabs II trim tabs adjust automatically as your boat's load, speed and water conditions change. For owners of 23- to 30-foot boats, the ST1610 system adds stern lift during acceleration and helps improve stability, tracking and low-speed planing without adjustments at the helm.

Key features

• Automatic tab movement responds as you load and maneuver the boat.
• Two nitrogen gas actuators per plate provide stern lift and damp reactions to changing water pressure.
• Downward plate positioning during acceleration helps the boat get onto plane.
• Self-adjusting operation supports a smoother ride as water conditions change.
• No electrical or hydraulic connections are needed to operate the system.
• Lift can be set during installation through the actuator load rating and trim plate adjustment.

Specifications

• Brand: Lectrotab
• Product series: Smart Tabs II
• Model series: ST1610
• Trim tab dimensions: 16 x 10 inches
• Boat length: 23–30 feet
• Transom width: Less than 10 feet
• Actuator type: Nitrogen gas
• Actuators per plate: 2
• Operation: Automatic

Good to know

The source identifies low-profile fiberglass, aluminum and RIB boats as suitable applications. Weight guidance is inconsistent: the title and one description passage state 6,500 lbs, while another passage states 8,500 lbs gross weight. Confirm the applicable weight limit before selecting this set.
