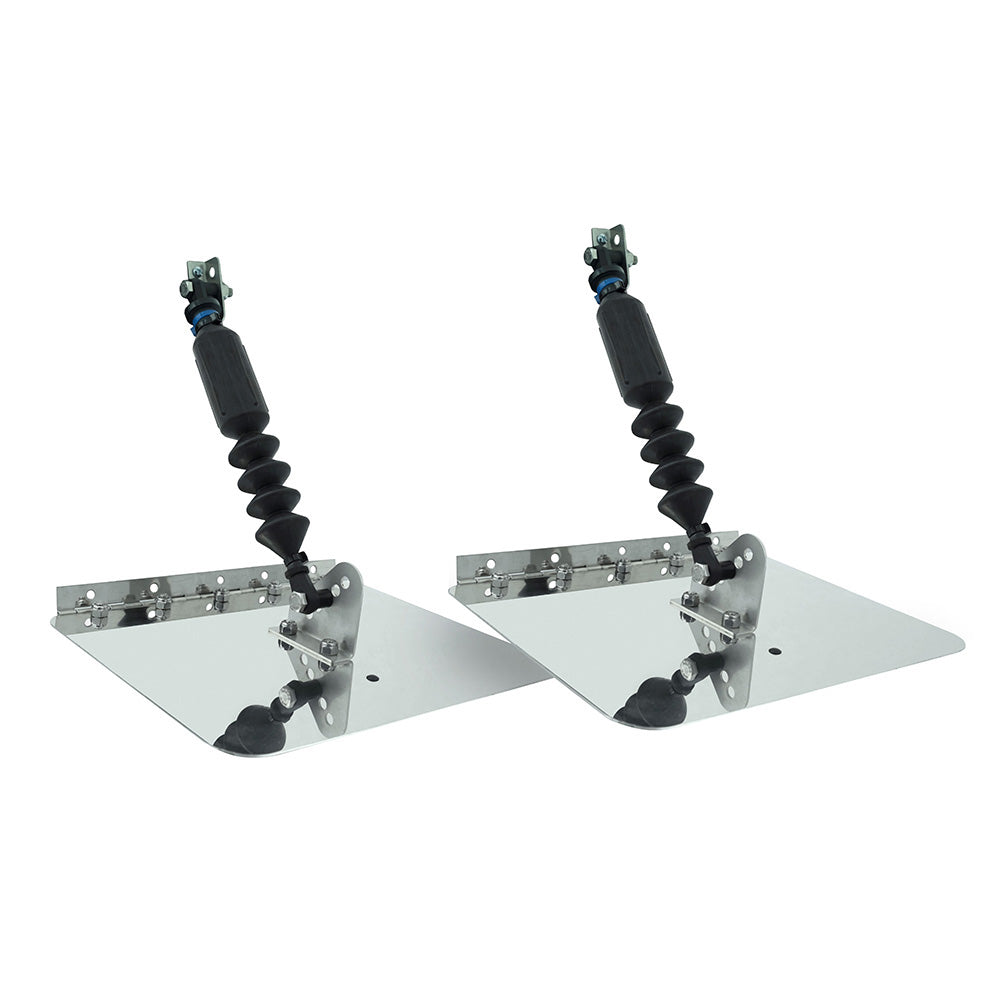

Smart Tab Trim Tabs by Lectrotab 12" X 9" f/12'-18' Boats w/60-150 HP

These Smart Tab trim tabs are sized for 12- to 18-foot boats with 60 to 150 HP. The system adjusts automatically underway, using nitrogen gas actuators to position the trim plates as boat speed and water pressure change.

• Tab size: 12 inches x 9 inches
• Boat size: For 12-foot to 18-foot boats
• Horsepower range: 60 to 150 HP
• Operation: Automatic adjustment with no operator input while underway
• Actuation: Nitrogen gas actuator holds the trim plate down during acceleration
• Setup: Lift is determined by actuator load rating and trim plate adjustment at installation
• Low-speed function: Starts angled downward to add stern lift at slower speeds
• Speed response: Plates move upward as water pressure increases
• System type: No hydraulics and no electric switches
• Performance details listed by supplier: May reduce minimum planing speed by up to 33%, improve acceleration, increase top speed, support a level ride at lower speeds, and improve fuel economy, handling, and safety
• Stability details listed by supplier: Helps address sliding, porpoising, and chine walking
