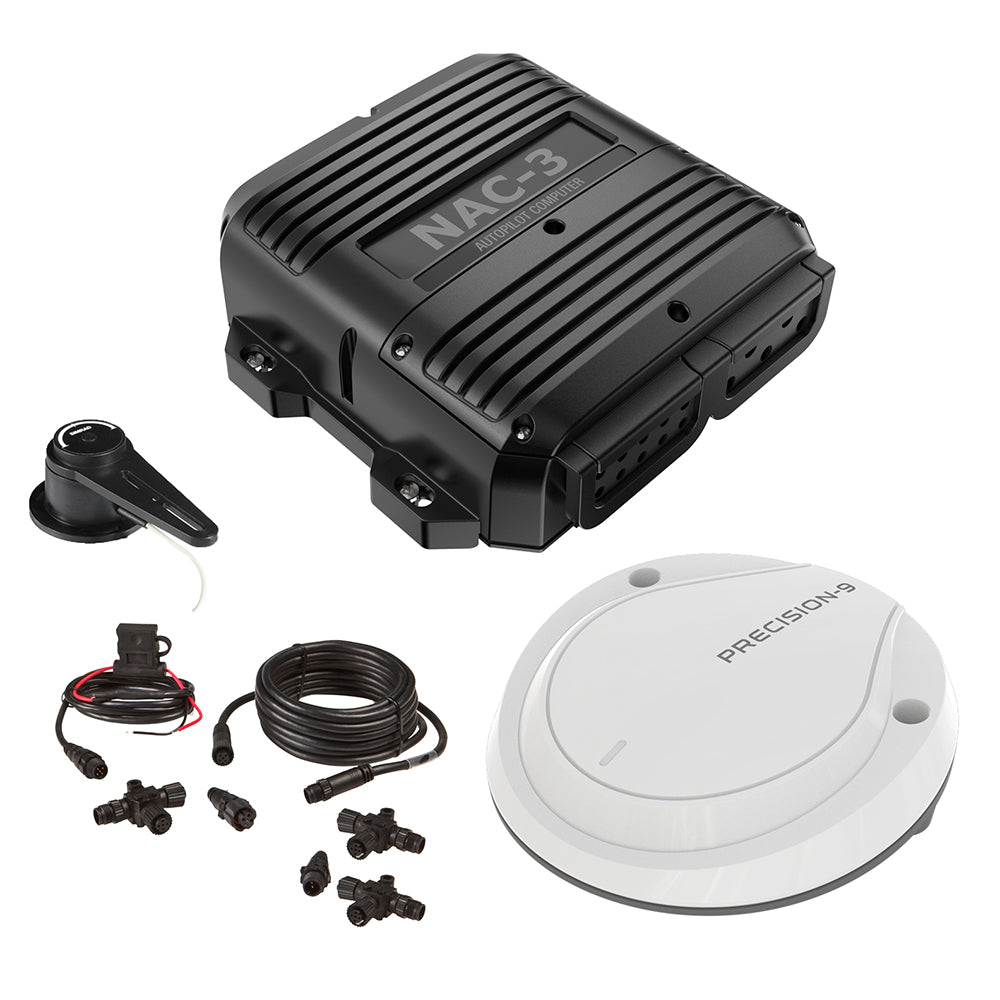

Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit

The Simrad NAC-3 Autopilot Core Pack brings together the main components needed around a NAC-3-based autopilot installation. It includes the NAC-3 computer, Precision-9 compass, RF25N rudder feedback unit, and an N2K starter kit for compatible marine navigation systems.

• Included components: NAC-3 autopilot computer, Precision-9 compass, RF25N rudder feedback unit, and N2K starter kit
• NAC-3 application: Designed for boats 10 m (33 ft) or greater in length
• Drive support: Rated for high-current hydraulic drives, mechanical drive units, and solenoid valves
• Motor control rating: 30A continuous, 50A peak for 1 second
• Precision-9 output: Heading 20 Hz, rate of turn 20 Hz, roll 10 Hz, and pitch 10 Hz over NMEA 2000
• RF25N included cable: 5 m (16.5 ft) NMEA 2000 Micro-C cable with transmission link
• N2K starter kit contents: Network power cable, 4.5 m (15 ft) N2K cable, 3 T-connectors, and 2 network terminators
• Operating temperature: 0 to +55 degrees C
• Storage temperature: -32 to +70 degrees C
• Protection: IPx7
• Weight: 0.7 kg, 1.6 lbs
• Maximum dimensions: 211 x 196 x 65.5 mm, 8.31 x 7.72 x 2.58 inches
• Mounting: Bulkhead
• Construction: Plastic
• Color: Black
• Cable inlet: Grommet, spare included
• Local power supply: 12/24 V DC +10-30%
• NMEA 2000 load equivalent number: 1 (50 mA)
• Solenoid control: 12/24V DC, common, 10 mA to 10A load range, off current under 1 mA
• Bypass/clutch engage output: 12/24V DC, minimum 10 mA, maximum 3A
• Rudder angle frequency input: 15V, 1.4 to 5 kHz, 20 Hz/x resolution or NMEA 2000
• NFU port/starboard input and mode indicator output: External open/close contact, common return, maximum 30 mA contact current
• Mode input: External open/close or pulse contact for system select, common return, close to activate, maximum 30 mA contact current
• External alarm output: Maximum 100 mA, voltage level as local supply
• NMEA 0183 input: 1 channel IEC 61162-1
• NMEA 0183 output: 1 channel IEC 61162-1
• IEC 61162-1 speed: 4.8 and 38.4 kbaud
• NMEA 2000: Certified pending
