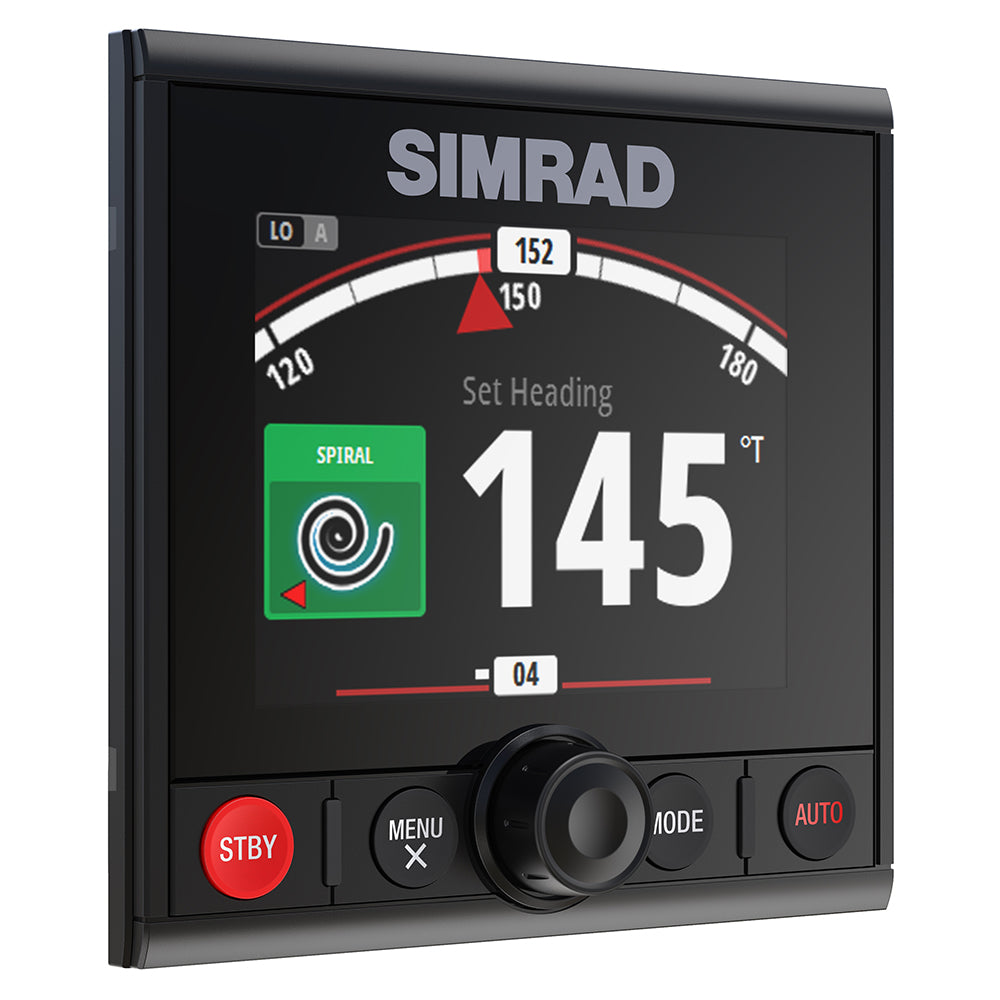

Simrad AP44 Autopilot Controller

The Simrad AP44 is a dedicated autopilot controller for helm stations that need direct access to steering control. It combines a rotary course-adjustment dial, button controls, and a 4.1" color display with Simrad Continuum steering technology.

Use it to control autopilot functions including automated turn patterns, No Drift steering, and depth contour tracking. It can also work with a connected chartplotter for waypoint and route navigation, with autopilot control available from compatible Simrad displays.

• Brand: Simrad
• Product type: Autopilot controller
• Display size: 4.1" diagonal
• Display type: Transmissive TFT-LCD, bonded, with white LED backlight
• Display resolution: 320 x 240 pixels
• Aspect ratio: 4:3
• Controls: Rotary dial with push-to-enter function and four buttons
• Steering technology: Simrad Continuum
• Functions: Automated turn patterns, No Drift steering, and depth contour tracking
• Setup: Auto tuning and calibration with on-screen commissioning
• Connectivity: Certified NMEA 2000
• Dimensions: 118 x 115 x 28mm (4.6 x 4.5 x 1.1")
• Weight: 0.32kg (0.7lbs)
• Power consumption: 1.8 Watts max
• Network load: 3 LEN
• Color: Black
• Illumination: White for day mode; red, green, blue, or white for night mode
