SI-TEX T-760 Compact Color Radar w/4kW 18" Dome - 7" Touchscreen

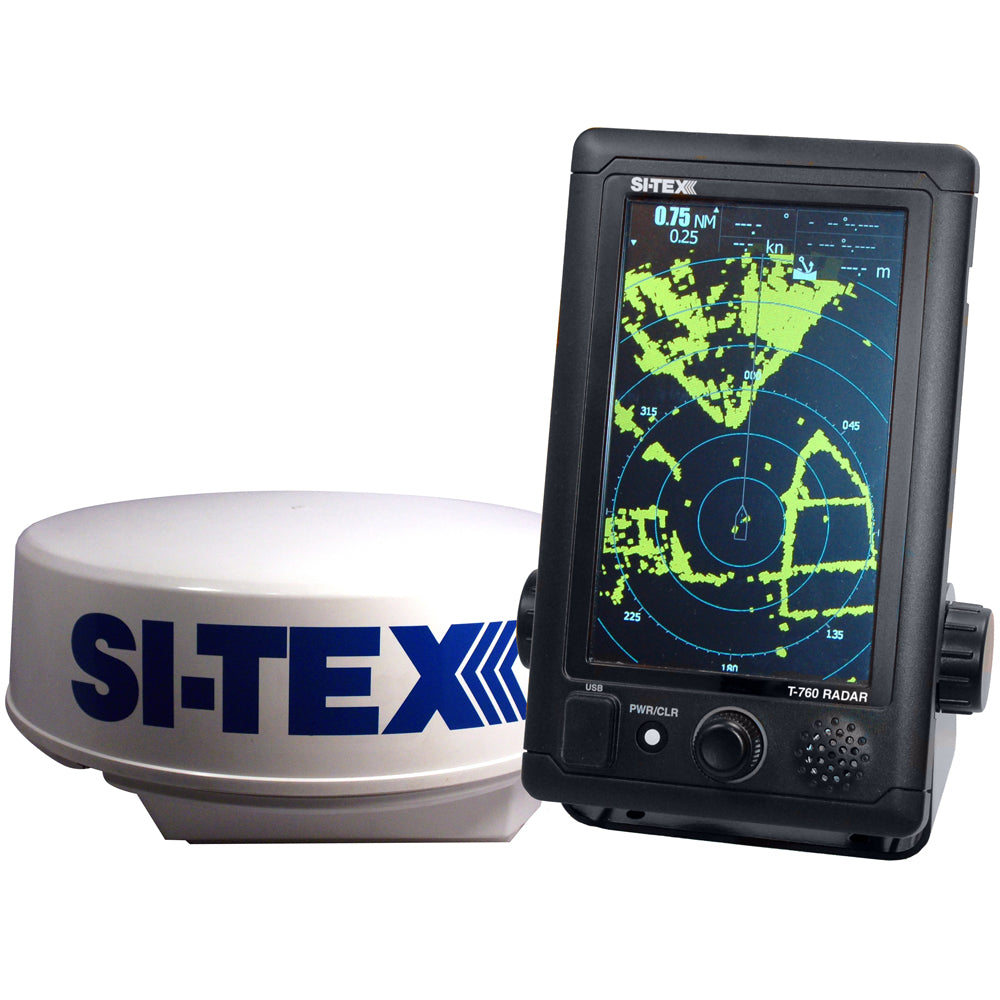

The SI-TEX T-760 is a compact color radar system for boats that need a 7 in. touchscreen display and an 18 in. dome antenna. It combines a 4kW transmitter, touch and rotary dial control, AIS target tracking, and MARPA support in a slim vertical display case.

• Brand: SI-TEX
• Model: T-760
• Product type: Compact color radar
• Display: 7 in. color LCD touchscreen
• Antenna: 18 in. compact radome
• Transmitter output: 4kW
• Range: 1/8 nm to 24 nm
• Cable: 10 m cable included
• Controls: Touchscreen with single rotary encoder dial
• Case dimensions: 5.4 in. W x 8.9 in. H x 3.5 in. D
• Antenna rotation: Multi-speed 16, 27, 36, and 48 rpm
• AIS tracking: Up to 50 targets with input from a SI-TEX Metadata AIS module or other AIS receiver
• MARPA tracking: Up to 10 targets at distances up to 20 nm with bearing, ship speed, and lat/lon data input
• Presentation modes: Relative Motion, True Motion, North-Up, Head-Up, and Course-Up
• Clutter modes: Auto or manual sea/rain clutter
• Trail indication: 11 settings, including Off and Continuous
• Warranty: Two-year limited warranty
