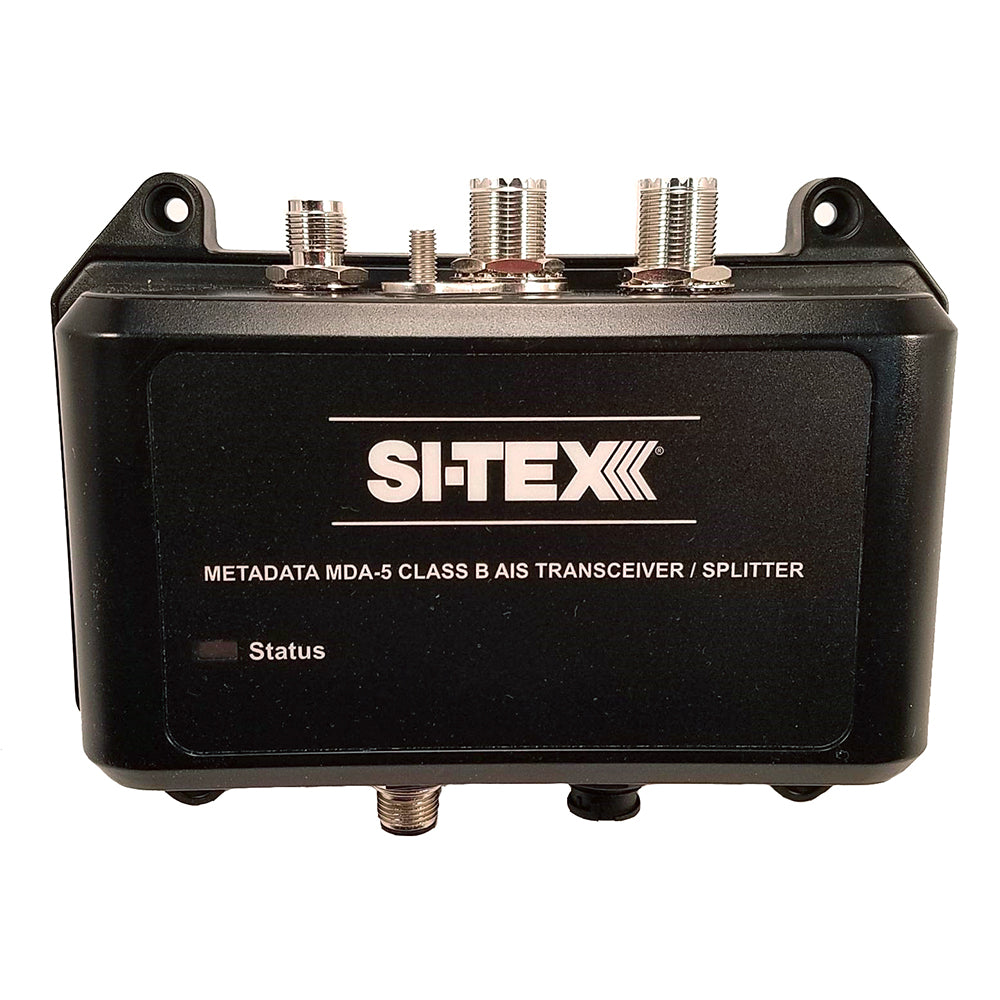

SI-TEX MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi
SI-TEX MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi
SKU:OM-SITEX-MDA5HI-MDA5
Low stock: 1 left
Couldn't load pickup availability
Overview
The SI-TEX MDA-5 is a 5-watt SOTDMA Class B AIS transceiver for vessels that need AIS transmit and receive capability with bridge-system connectivity. It includes an internal VHF antenna splitter, long-range Wi-Fi, and built-in satellite positioning, with FCC-required programming completed from the required vessel documentation at purchase.
- Transmit power: 5 watts
- AIS type: SOTDMA Class B
- Connectivity: NMEA 0183, NMEA 2000, USB, and built-in 802.11 b/g/n Wi-Fi
- Navigation receiver: Built-in GPS and GLONASS
- Receivers: Dual receivers decode DSC and AIS messages, including MOB and SART
- Antenna connections: SO-239 UHF VHF antenna connector and TNC GPS antenna connector
- Frequency range: 156.025-162.025 MHz
- Input voltage: 9.6-31.2 VDC
- Current draw: 220mA average power consumption
- Operating temperature: -25C to +55C
- Ingress protection: IP67
- Certifications listed: IEC-62287-2, FCC, and USCG
- Dimensions: 6.8 in W x 5.0 in H x 2.0 in D
- Weight: 0.8 lb
- Included: External GPS antenna with coax cable, mounting hardware, power and data interface cable, VHF radio connection cable, product DVD with ProAis2 software, user manual, and quick start guide
- Warranty: 2 years
Specifications
| AIS Class | B |
|---|---|
| GPS Included | Yes |
| Function | Receive/Transmit |
| Display Included | No |
| Antenna Included | No |
| Brand | SI-TEX |
| Manufacturer part # | MDA-5 |
| UPC | 010407510705 |
| Boxed dimensions | 14 x 9 x 5 in |
| Shipping weight | 3.5 lb |
| Country of origin | IRELAND, REPUBLIC OF |
