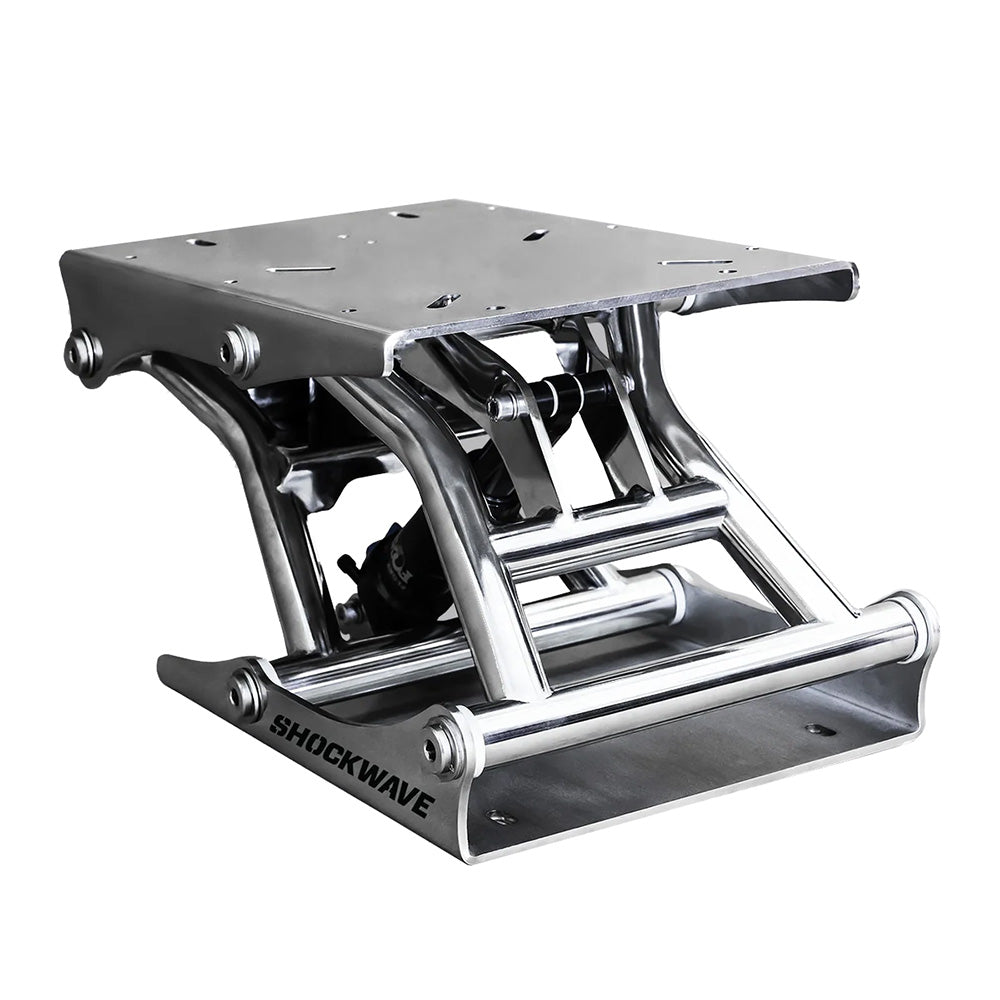

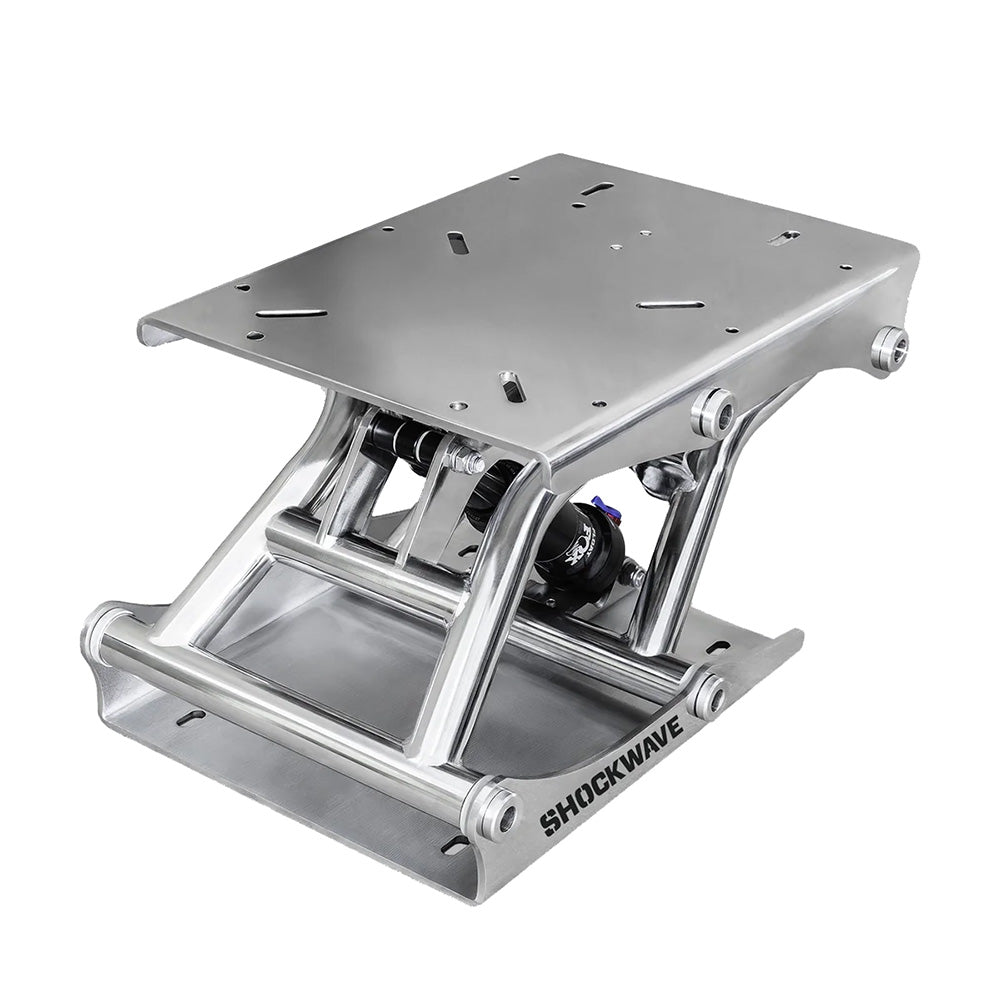

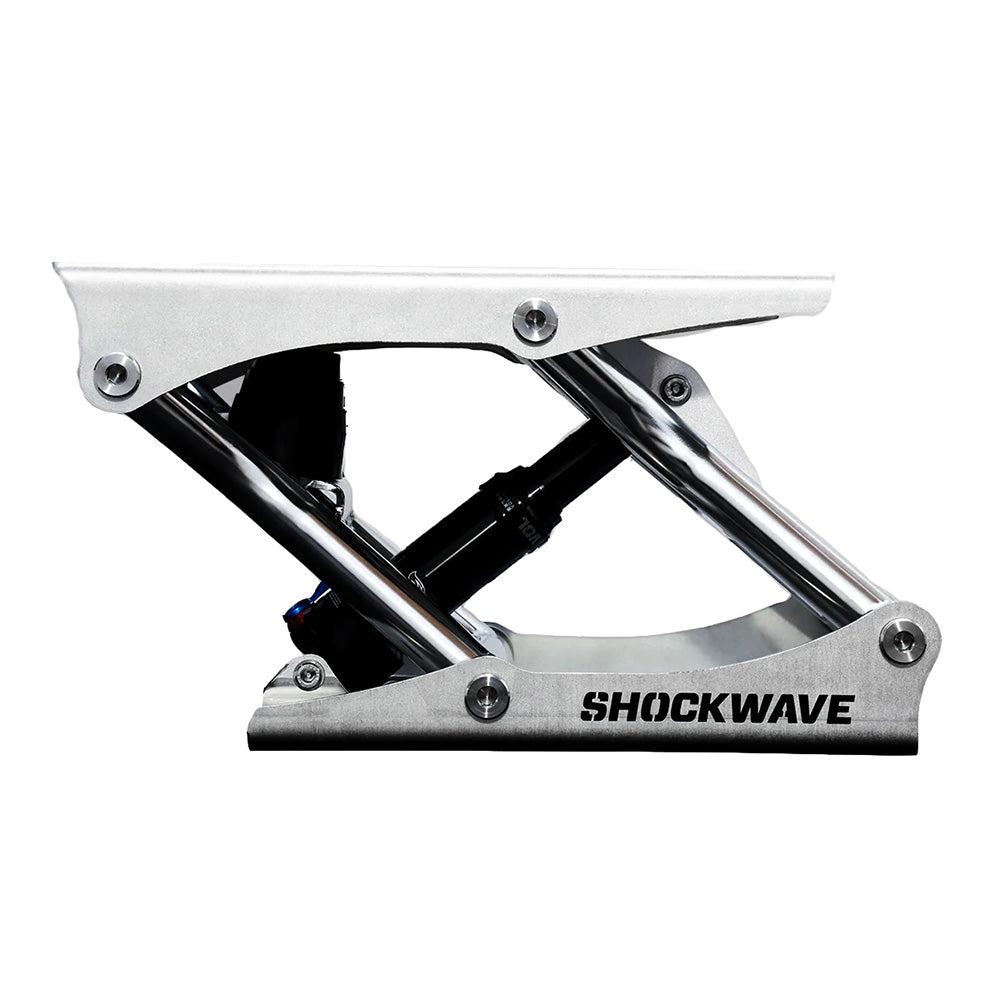

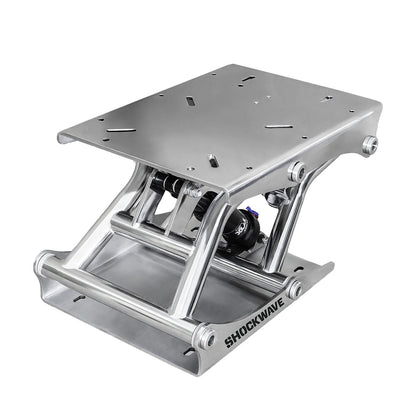

Shockwave S5-SS Suspension Base - Stainless Steel

Wave impacts can bring abrupt changes in motion for boat occupants. The Shockwave Seats S5-SS suspension base uses forward and vertical movement to reduce the deceleration associated with those impacts, with construction suited to salty, humid environments.

Key features

• Four-link movement carries the suspension forward as well as vertically to help moderate wave-impact deceleration.
• Adjustable compression and rebound let you tune the marine FOX Rhythm air-sprung shock.
• Welded, electropolished 316 stainless steel suits use in high-salinity and humid conditions.
• A simple assembly with few parts makes the base straightforward to mount and adapt to existing seating.
• The supplied shock pump includes a pressure gauge for checking pressure while adjusting the air spring.

Specifications

• Brand: Shockwave Seats
• Model: S5-SS
• Product type: Seat suspension base
• Material: Electropolished 316 stainless steel
• Construction: Welded
• Shock: Custom-tuned and valved marine FOX Rhythm
• Spring type: Air
• Adjustments: Rebound and compression
• Vertical travel: 4 inches
• Forward travel: 1.5 inches
• Suspension mechanism: Four-link forward action
• Design and manufacture: Canada

Good to know

A shock pump with a pressure gauge is included. The universal design allows adaptation to a broad range of boats and seats, with listed applications including fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale-watching boats, crew boats and yacht tenders.
