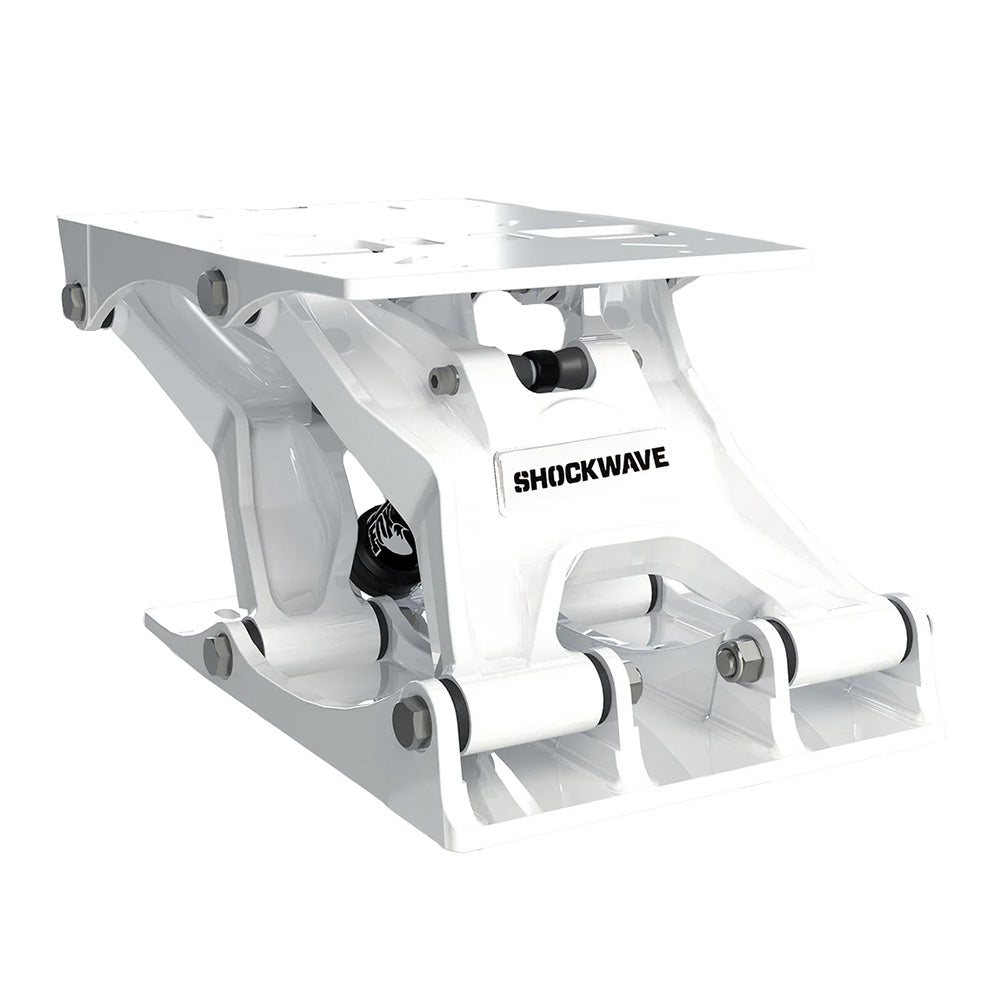

Shockwave S5-AL Suspension Base - White

Bring suspension to your boat's seating with the white Shockwave S5-AL base. For recreational boaters spending extended time on the water, its air-sprung movement helps absorb wave impacts and reduce fatigue.

Key features

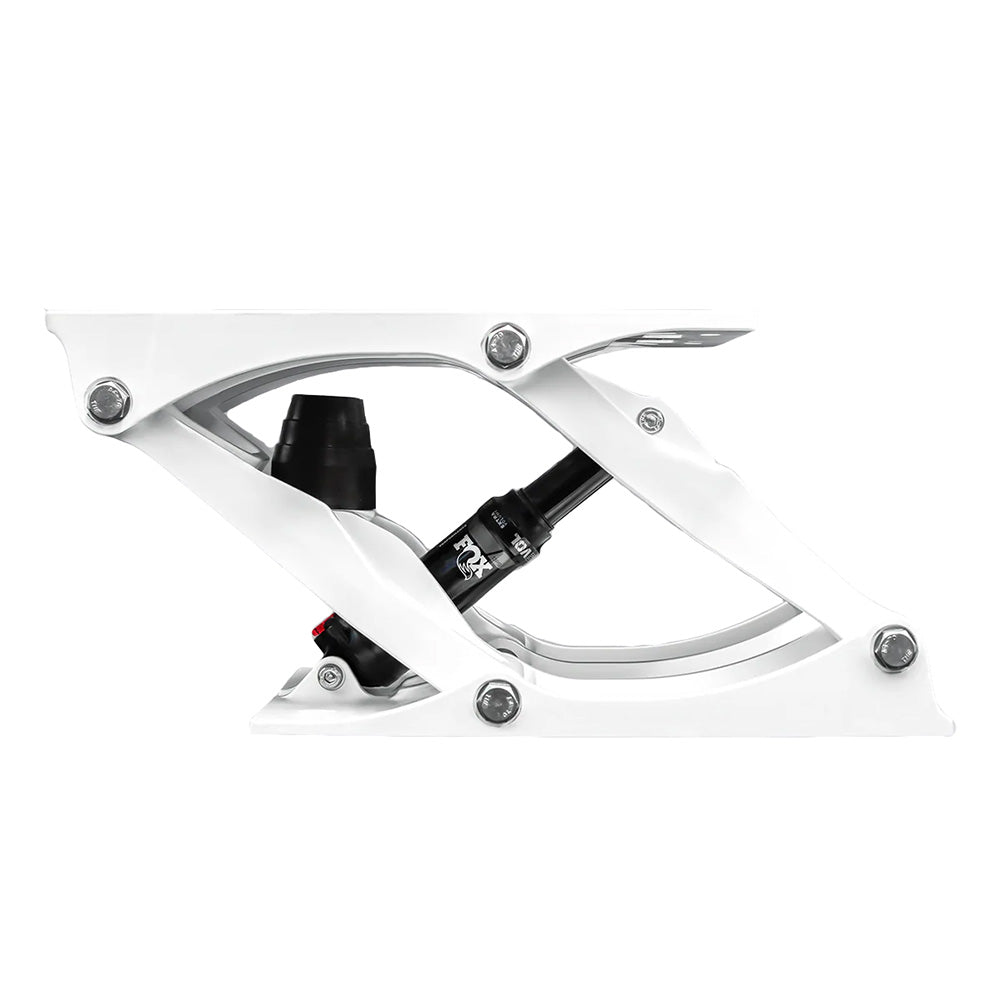

• A four-link mechanism moves the seat forward and vertically to reduce the jolt associated with wave impacts.
• Adjustable rebound on the marine-tuned FOX Rhythm shock gives you control over its return movement.
• The cast aluminum base combines anodizing and powder coating with 316 stainless steel hardware.
• Simple construction and a low parts count support mounting and adaptation to current seating.
• An included pump and pressure gauge let you adjust and check shock pressure.

Specifications

• Brand: Shockwave
• Model: S5-AL
• Color: White
• Suspension mechanism: Four-link forward action
• Shock: Marine-tuned and valved FOX Rhythm air spring and shock
• Rebound adjustment: Adjustable
• Travel, vertical: 4 inches
• Travel, forward: 1.5 inches
• Construction: Anodized A360 cast aluminum
• Surface finish: Powder coating
• Hardware material: 316 stainless steel
• Country of design and manufacture: Canada

Good to know

The S5-AL was formerly called the S5 Sentinel. Its universal design accommodates almost any boat and seat, with applications including guide boats, fishing boats, coastal cruisers, crew boats and yacht tenders. The package includes a shock pump with a pressure gauge.
