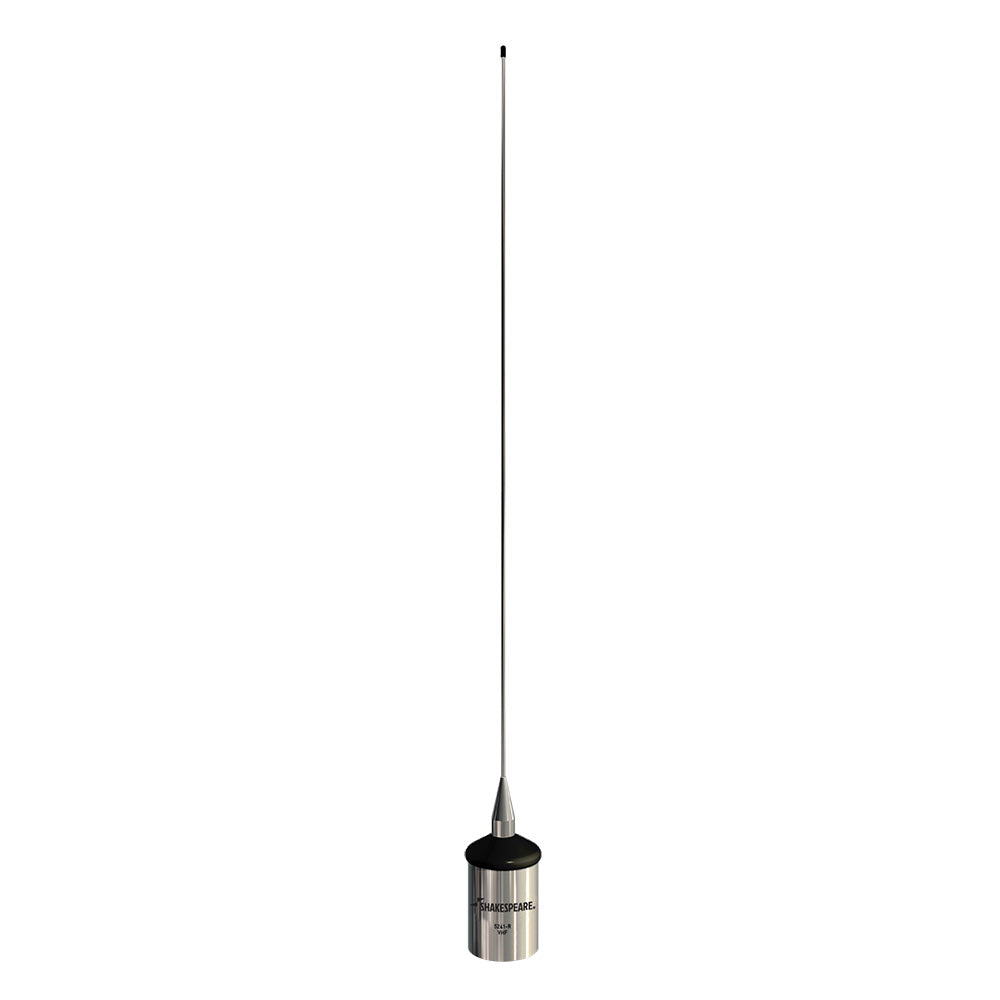

Shakespeare 5241 3' VHF Antenna

The Shakespeare 5241-R VHF marine antenna is a compact 3 foot antenna for boats where a low-profile installation is preferred. It uses an end-fed 1/2-wave design with a heavy-duty stainless steel whip and includes cable and a PL-259 connector.

• Model: Shakespeare Style 5241-R
• Type: VHF marine antenna
• Length: 36 inches, 3 feet
• Design: Low-profile end-fed 1/2-wave antenna
• Whip: Heavy-duty stainless steel whip

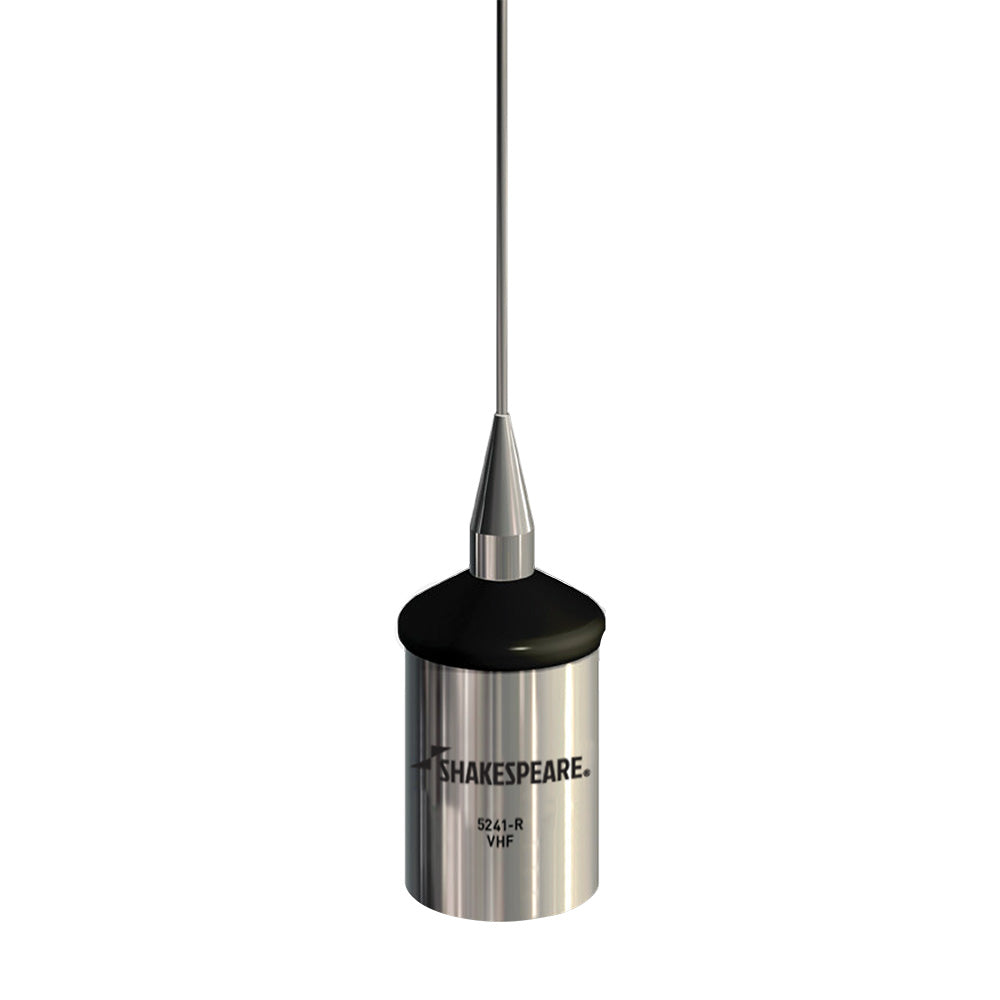

• Canister: Chrome-plated brass canister
• Coil: Sealed tin-plated copper wire coil
• Cable: 15 foot RG-58 cable supplied
• Connector: PL-259 connector included
• Mounting requirement: Requires a mount with a center hole for cable passage
• Suggested mounts: Shakespeare Styles 4187, 4188-S, or 4190 ratchet mounts
• Frequency: VHF Marine Band
• Bandwidth: 7 MHz
• SWR: 1.5:1 at 156.8 MHz
• Radiation pattern: Omni-directional
• Gain: 3 dB
• Maximum input: 50 watts
• DC ground: Yes
• Polarization: Vertical
• Warranty: Shakespeare limited warranty, 2 years
