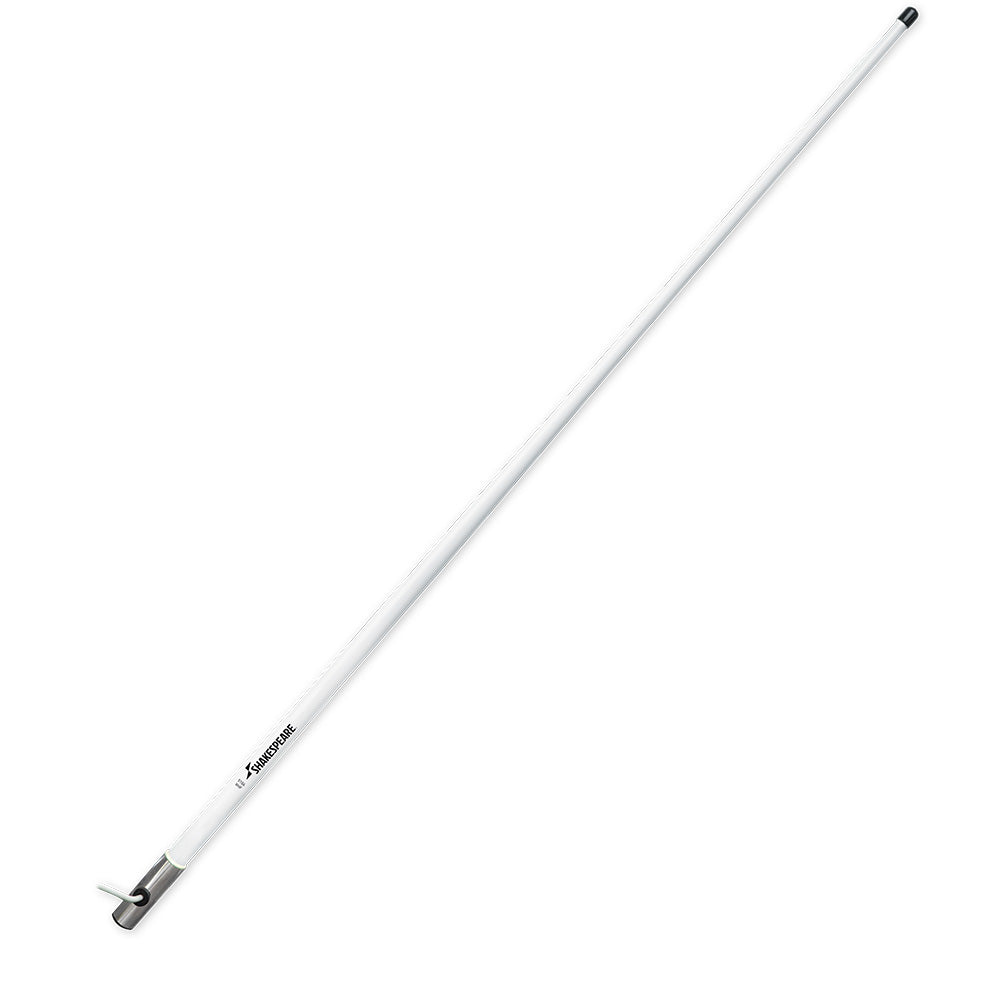

Shakespeare 5104 VHF 4' Antenna

The Shakespeare 5104 is a 4 ft VHF marine band antenna with 3dB gain. It uses brass and copper elements, a chrome-plated brass ferrule, and a white high-gloss finish for a classic marine antenna setup.

This one-section antenna includes RG-58 coax cable and a PL-259 connector that is supplied but not installed. Suggested ratchet mounts are Shakespeare Style 4187 or 5187, each sold separately.

• Model: Classic Style 5104
• Product type: VHF marine band antenna
• Length: 4 ft. / 1.2 m
• Antenna gain: 3dB
• Design: End-fed with matching stub
• Elements: Brass and copper

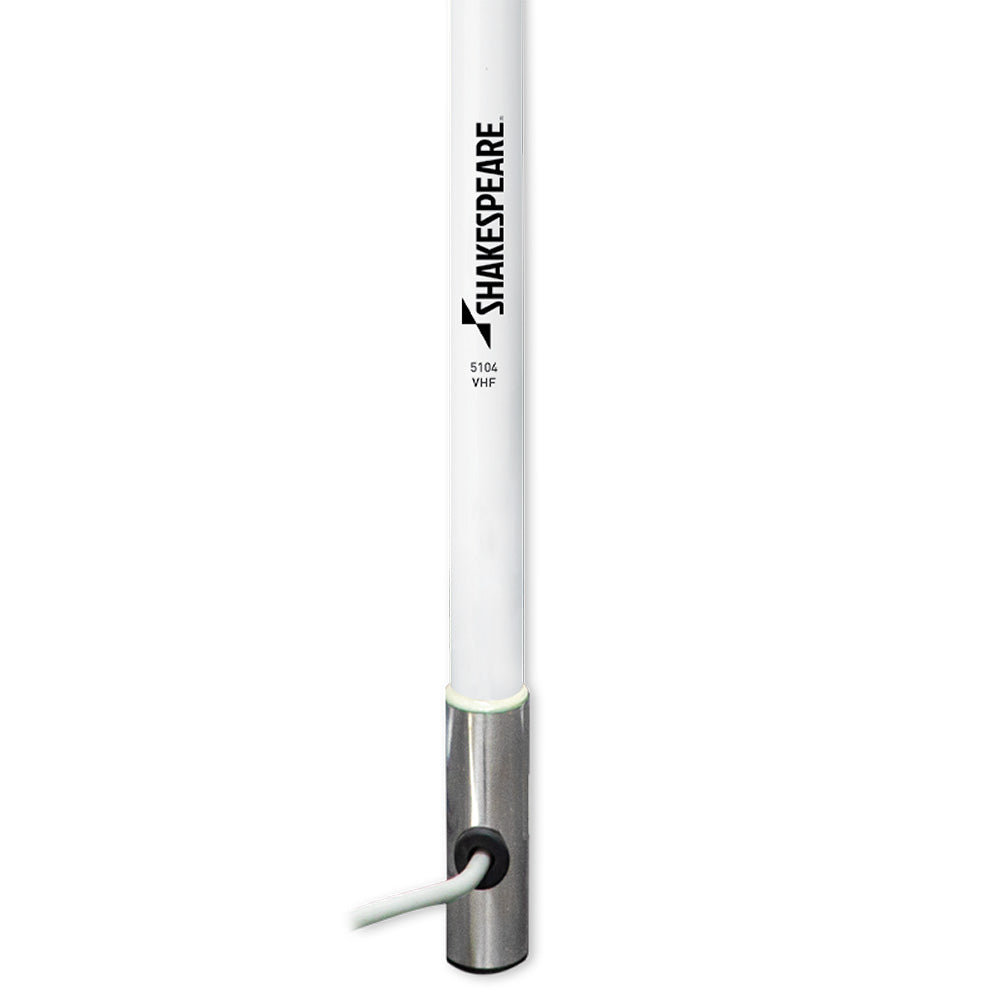

• Ferrule: Chrome-plated brass with standard 1 in.-14 thread
• Coax supplied: 15 ft. RG-58 cable, cut-to-size
• Connector supplied: PL-259, not installed
• Suggested mounts: Style 4187 or 5187 Ratchet Mount, each sold separately
• Finish: White, smooth high-gloss polyurethane
• Sections: One section
• Band: VHF Marine Band
• Maximum input power: 50W
• SWR: Nominally 1.5:1 at 156.8 MHz
• Bandwidth: 5 MHz within 2.0:1 VSWR
• Polarity: Vertical
• Impedance: 50 Ohms
• Warranty: Shakespeare limited warranty, 2 years
