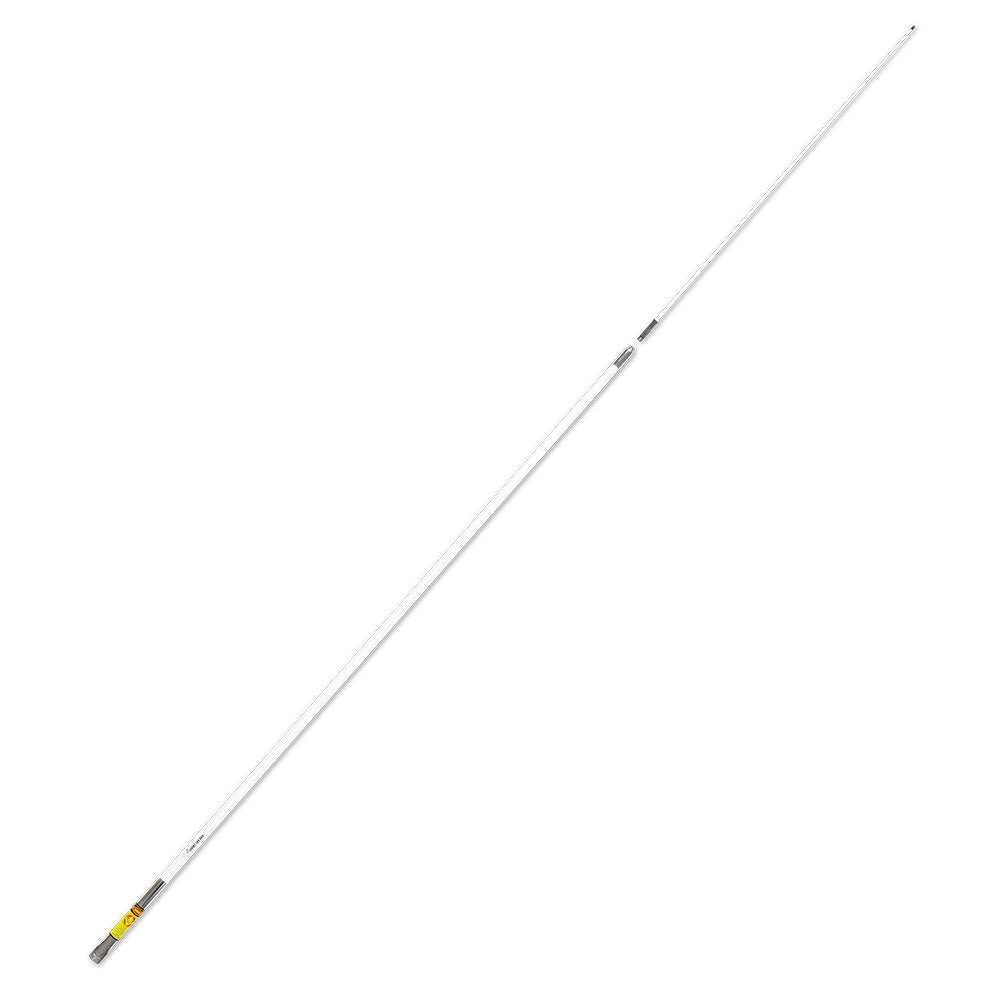

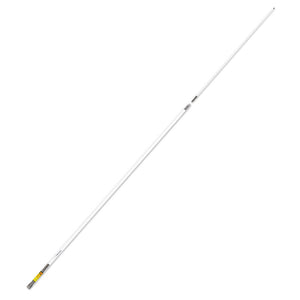

Shakespeare 399-1M 9'6" VHF Antenna
Shakespeare 399-1M 9'6" VHF Antenna
SKU:OM-SHAKESPEARE-3991M9-3991M
Low stock: 1 left
Couldn't load pickup availability
Frequently bought together
FREE U.S. shipping on every item
Overview
For boaters mounting a VHF antenna on a mast, the Shakespeare 399-1M includes a dedicated aluminum mounting sleeve. This 9-foot-6-inch marine-band antenna uses a collinear phased 5/8-wave arrangement with two coaxial chokes to suppress cable radiation.
Key features
- An aluminum sleeve provides the mast-mounting arrangement specific to the 399-1M.
- Two coaxial chokes help suppress radiation from the cable.
- An omnidirectional radiation pattern provides coverage around the antenna.
- The chrome-plated brass ferrule uses a standard 1-inch-14 thread for mounting.
- Supplied U-bolts provide hardware for the suggested mast installation.
Specifications
- Model: 399-1M
- Frequency range: VHF Marine band
- Height: 9.5 feet (9 feet 6 inches)
- Gain: 6 dB
- Configuration: Collinear phased 5/8-wave
- Bandwidth within 2.0:1 SWR: 5 MHz
- SWR at 156.8 MHz: 1.5:1
- Impedance: 50 ohms
- Maximum input: 100 W
- DC ground: Yes
- Termination: SO-239
- Polarization: Vertical
- Radiation pattern: Omnidirectional
- Element materials: Brass and copper

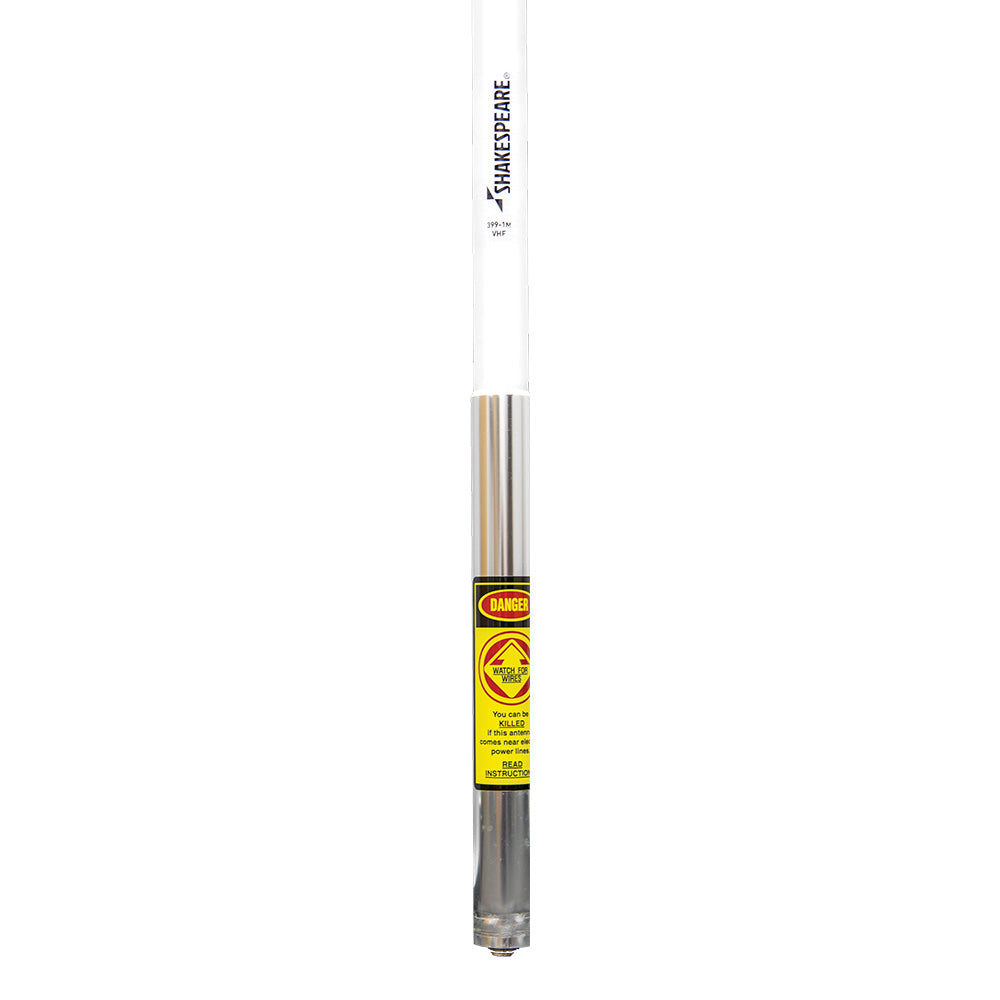

- Ferrule: Chrome-plated brass, 1-inch-14 thread
- Mast sleeve material: Aluminum

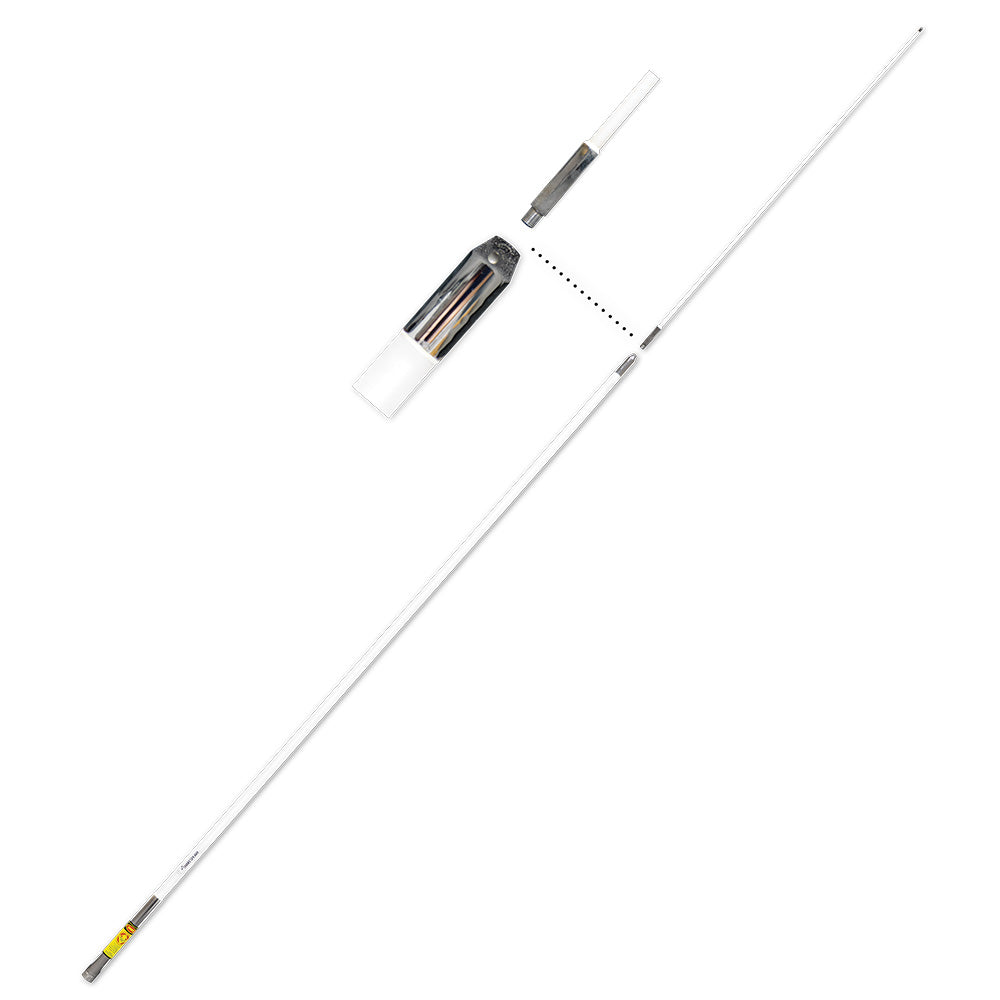

- Sections: 75-inch base and 39-inch tip
Good to know
The antenna includes 1-1/4-inch U-bolts. Installation on a larger mast can use steel banding, which is not supplied.
Specifications
| Antenna Band | VHF |
|---|---|
| Color | White |
| Construction | Fiberglass |
| Ferrule Type | Chrome Plated |
| Length (Inches) | 114" |
| Brand | Shakespeare |
| Manufacturer part # | 399-1M |
| UPC | 719441100032 |
| Boxed dimensions | 88 x 5 x 5 in |
| Shipping weight | 5.2 lb |
| Country of origin | CHINA |
