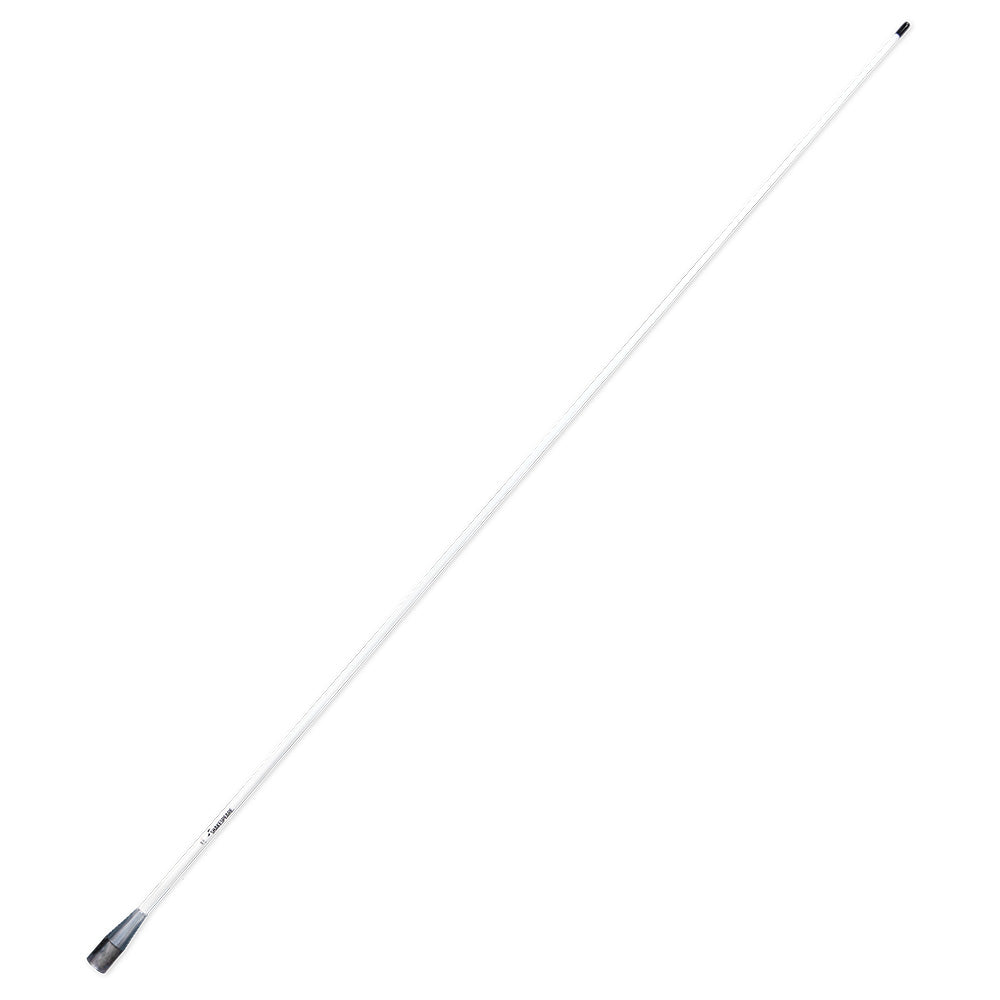

Shakespeare 396-1 5' VHF Antenna
Shakespeare 396-1 5' VHF Antenna
SKU:OM-SHAKESPEARE-39615-3961
Low stock: 1 left
Couldn't load pickup availability
Overview
Style 396-1 VHF 3dB
Center-fed 1/2-wave coaxial sleeve
Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.
- Brass and copper elements

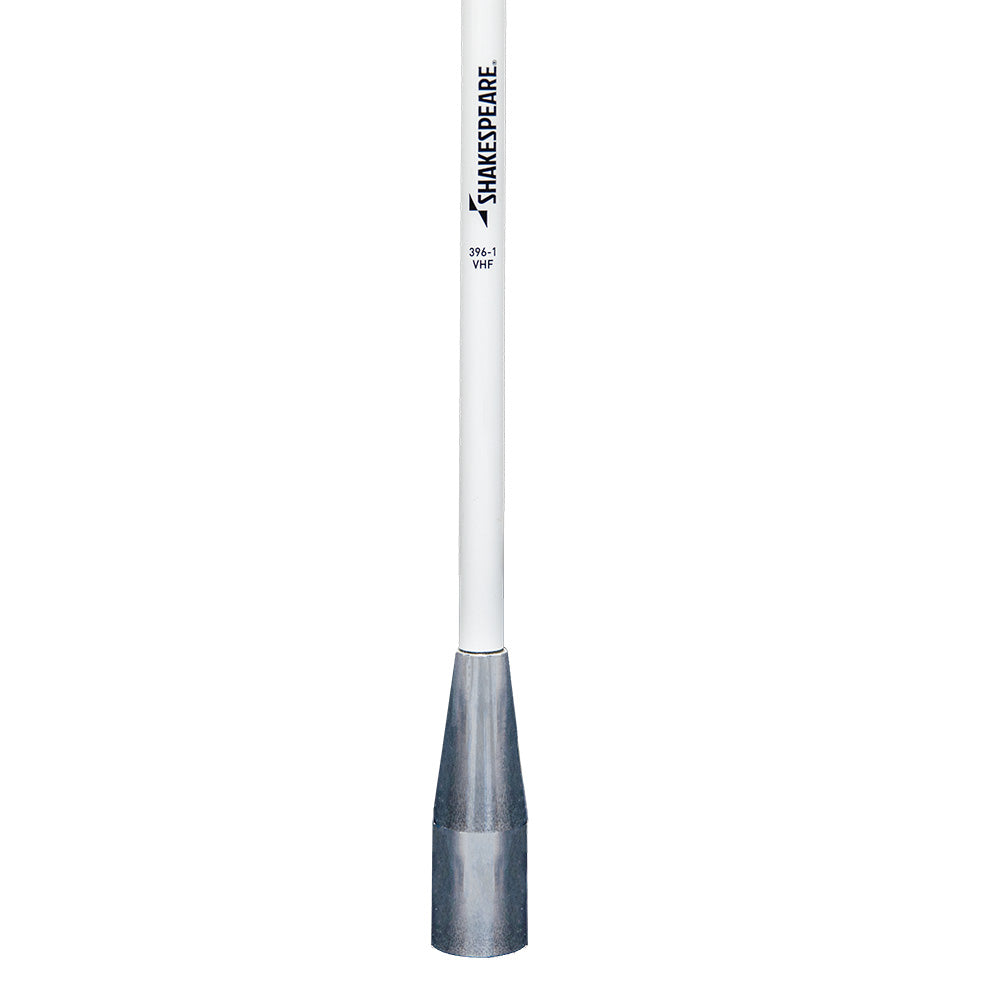

- Chrome-plated brass ferrule with standard 1-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Style 4187 Ratchet Mount
- One section
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | (within 2.0:1 SWR): 5 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Impedance | (Ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 15' RG-58 cable |
| Height (feet): | 5 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
Specifications
| Antenna Band | VHF |
|---|---|
| Color | White |
| Construction | Fiberglass |
| Ferrule Type | Chrome Plated |
| Length (Inches) | 60" |
| Brand | Shakespeare |
| Manufacturer part # | 396-1 |
| UPC | 719441100018 |
| Boxed dimensions | 63 x 3 x 3 in |
| Shipping weight | 2.9 lb |
| Country of origin | CHINA |
