Sentry

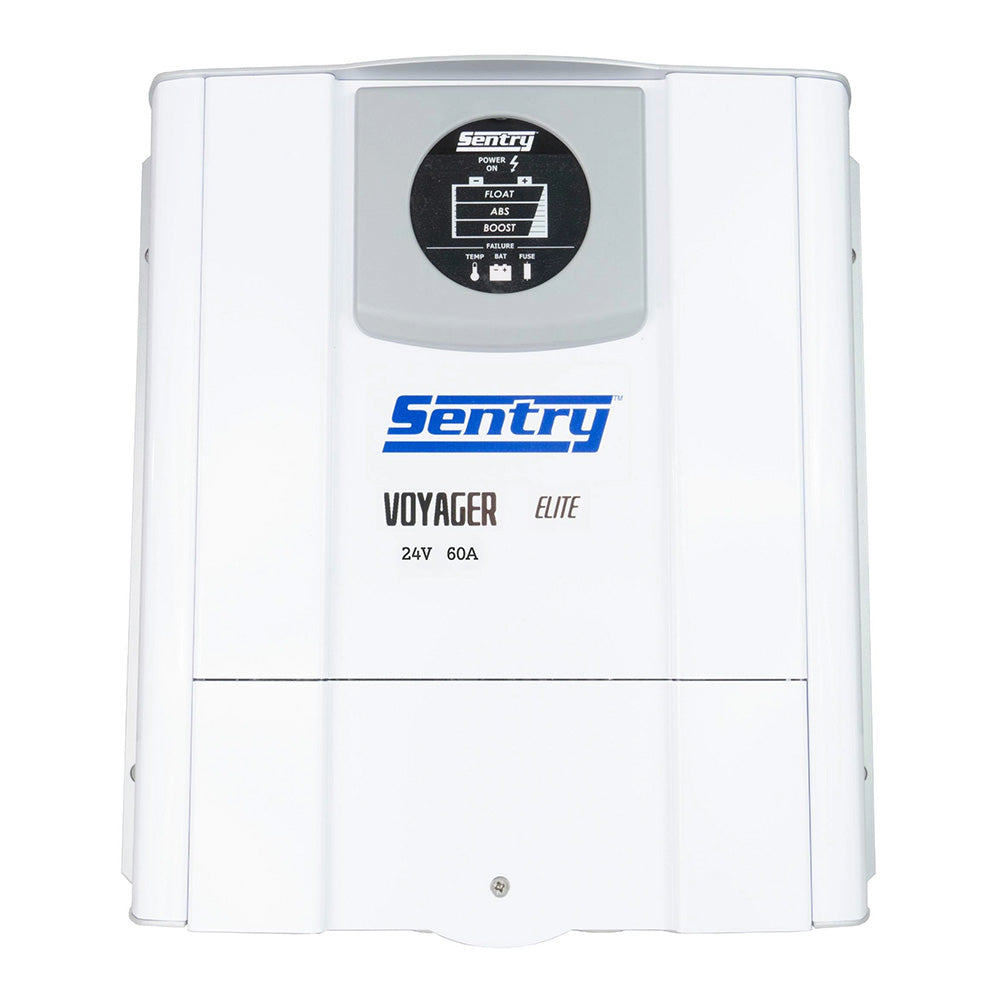

Sentry Voyager Elite Battery Charger 24V - 60A - 115/230V Input - 3 Bank
Sentry Voyager Elite Battery Charger 24V - 60A - 115/230V Input - 3 Bank
SKU:OM-SENTRY-VOYAGERELITEBA-SVE24603XJ
Low stock: 1 left
Couldn't load pickup availability
Overview
Voyager Elite Battery Charger 24V - 60A - 115/230V Input - 3 Bank
The line of Sentry Voyager Elite marine battery chargers is heavy-duty and extremely reliable. Each charger comes equipped with a CAN BUS J1939 interface which can be connected to any monitoring system. The circuit board is conformal coated for added protection from the harsh marine environment.
Sentry Voyager Elite battery chargers are designed with a rotary switch to select the correct charging curve for your batteries. The battery charge selections are Lead-Acid, AGM, Gel, Lead Calcium, Spiralcell, Lithium-ion (LiFeS04), and Winter Storage Mode. Each charger will charge three independent and isolated battery banks. battery temperature sensor is included to prevent overcharging batteries in high ambient temperatures.
The charger is designed to automatically switch to match 115vac or 230vac incoming power and 50Hz or 60Hz frequency.
The easy-to-read display shows the charging status of Boost, Equalization, Absorption, and Float modes. The display will also show fault status for high-temperature fault, battery fuse fault, and output voltage fault.
Features:
- Select charging profile for Lead-Acid, AGM, Gel, Spiralcell, Lead Calcium, or Lithium-ion (LiFeS04) batteries and Winter Storage Mode
- Easy-to-read LED display showing charge modes and fault status
- Automatically switches to 115vac or 230vac and 50Hz or 60Hz power
- Three isolated bank charging outputs
- Lightweight and compact size
- Battery temperature sensor to prevent overcharging
- AC and DC fuse protection
- CAN BUS J1939 interface to connect to any monitoring system
- Conformal coated PC Board for corrosion protection
- Two-year parts warranty
Specifications
| Charger Input - Voltage | 115/230 |
|---|---|
| Charger Output - Amps | 60 |
| Charger Output Voltage | 24 |
| Charging Banks | 3 |
| Portable | No |
| Brand | Sentry |
| Manufacturer part # | SVE2460/3XJ |
