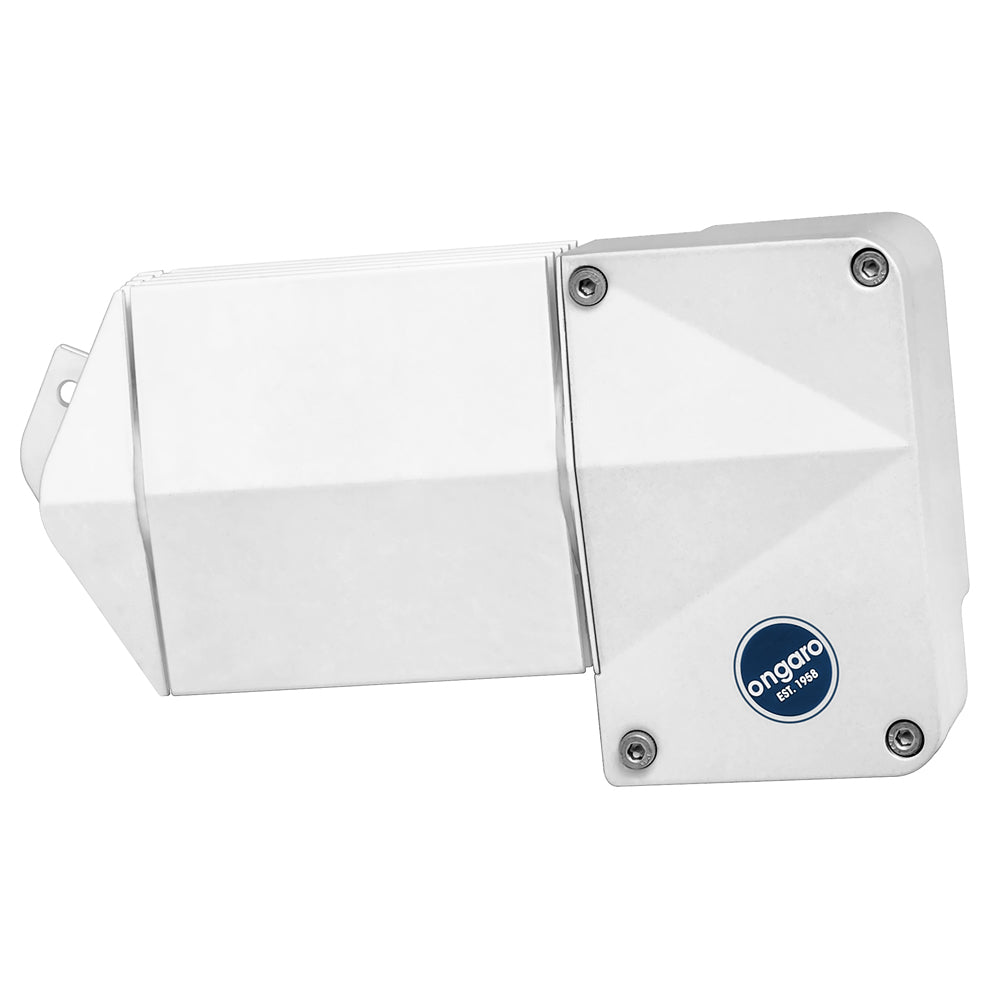

Schmitt Marine Heavy Duty Waterproof 2-Speed Wiper Motor - 3.5" Shaft - 12V
Schmitt Marine Heavy Duty Waterproof 2-Speed Wiper Motor - 3.5" Shaft - 12V
SKU:OM-SCHMITTMARIN-HEAVYDUTYWATER-33631
Low stock: 1 left
Couldn't load pickup availability
Overview
A 3.5-inch shaft distinguishes this version of Schmitt Marine's heavy duty 12V wiper motor. It powers boat windshield wipers at two selectable speeds, with adjustable travel and a choice of left or right parking.
Key features
- Switch between 35 and 55 sweeps per minute to control the wiping rate.
- Set a sweep angle between 40 and 110 degrees for the windshield arrangement.
- Choose which side the wiper returns to when it parks.
- IP66 water protection suits the motor to its onboard role.
- A rigid aluminum enclosure supports stable mounting and helps release heat during operation.
- Insulated grounding supports installation on multiple boat construction materials.
Specifications
- Brand: Schmitt Marine
- Shaft length: 3.5 inches
- Power supply: 12V
- Torque: 15 N-m
- Operating speeds: 35 and 55 sweeps per minute
- Adjustable sweep: 40 to 110 degrees
- Maximum arm and blade size: 24 x 24 inches
- Housing material: Aluminum
- Protection rating: IP66
- Grounding: Insulated
- EMC protection: Yes
- Approval: CE
- Guarantee: 3 years
Good to know
The motor is a replacement option for older Ongaro and Bosch-type units. Insulated grounding permits use with steel, aluminum, wooden or GRP boats.
Specifications
| Brand | Schmitt Marine |
|---|---|
| Manufacturer part # | 33631 |
| UPC | 768170336311 |
| Boxed dimensions | 8 x 6 x 5 in |
| Shipping weight | 3.6 lb |
| Country of origin | TAIWAN |
