Schaefer Marine
Schaefer Series 7 Stand Up Ball Bearing Swivel Block - 2-3/8" 60mm
Schaefer Series 7 Stand Up Ball Bearing Swivel Block - 2-3/8" 60mm
SKU:83393
Low stock: 5 left
Couldn't load pickup availability

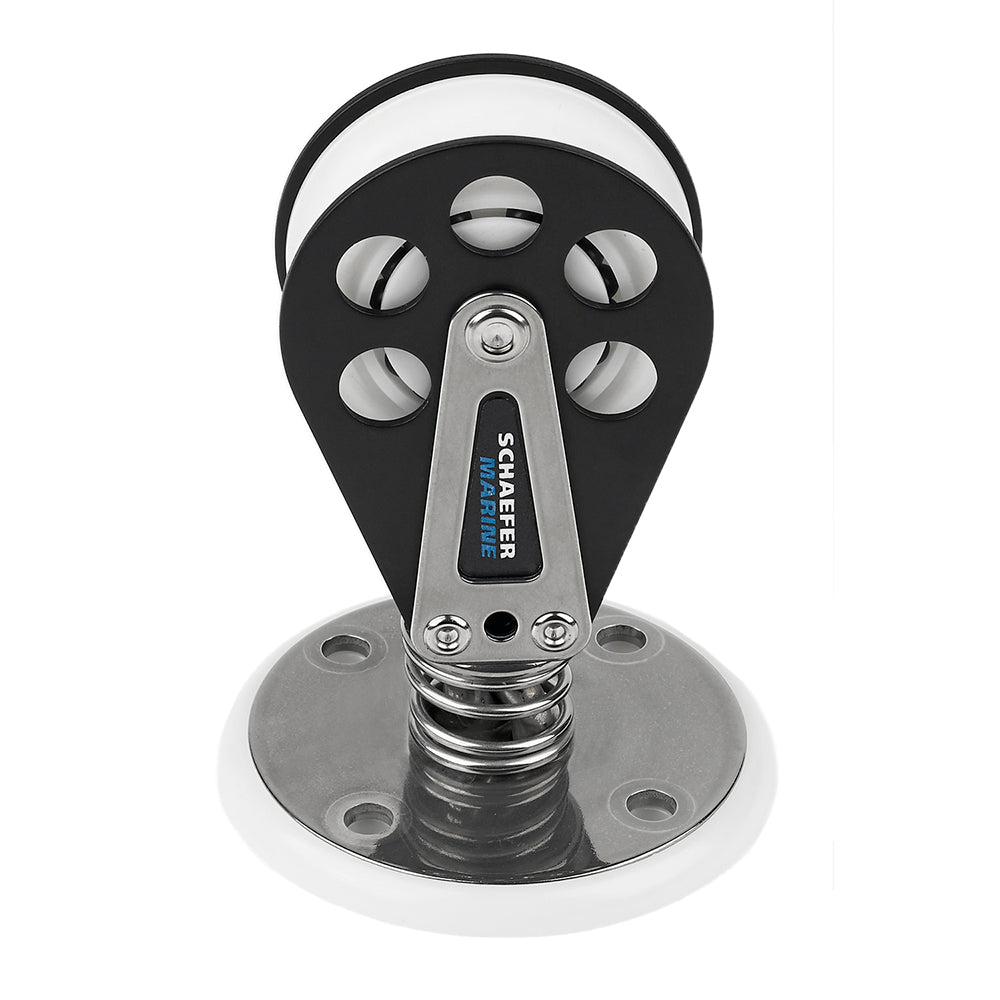

Series 7 Stand Up Ball Bearing Swivel Block - 2-3/8" 60mm
Single stand up ball bearing block. Stand up spring keeps block upright when not in use. Stainless steel base spreads load out and may be used with 97-49 backing plate. (sold separately) Delrin(tm) ball bearing sheave provides a low-friction high strength sheave. Sheave Dia. 2-2/8" (60 mm), Max Line 1/2" (13 mm), Dia. includes urethane base 3-3/8" (86 mm), Height 4-25/32" (120 mm), H2 2-15/32" (63 mm), Fastener Size (4),1/4" RH (6 mm), C/C 1-11/16" (43 mm), SWL 1700 lbs (771kg), Weight Alum. 11.7 oz (332 g).
Specifications
Specifications
Manufacturer part number, dimensions and technical specs are listed in the product description above. Contact us if you need a spec sheet for this item.
