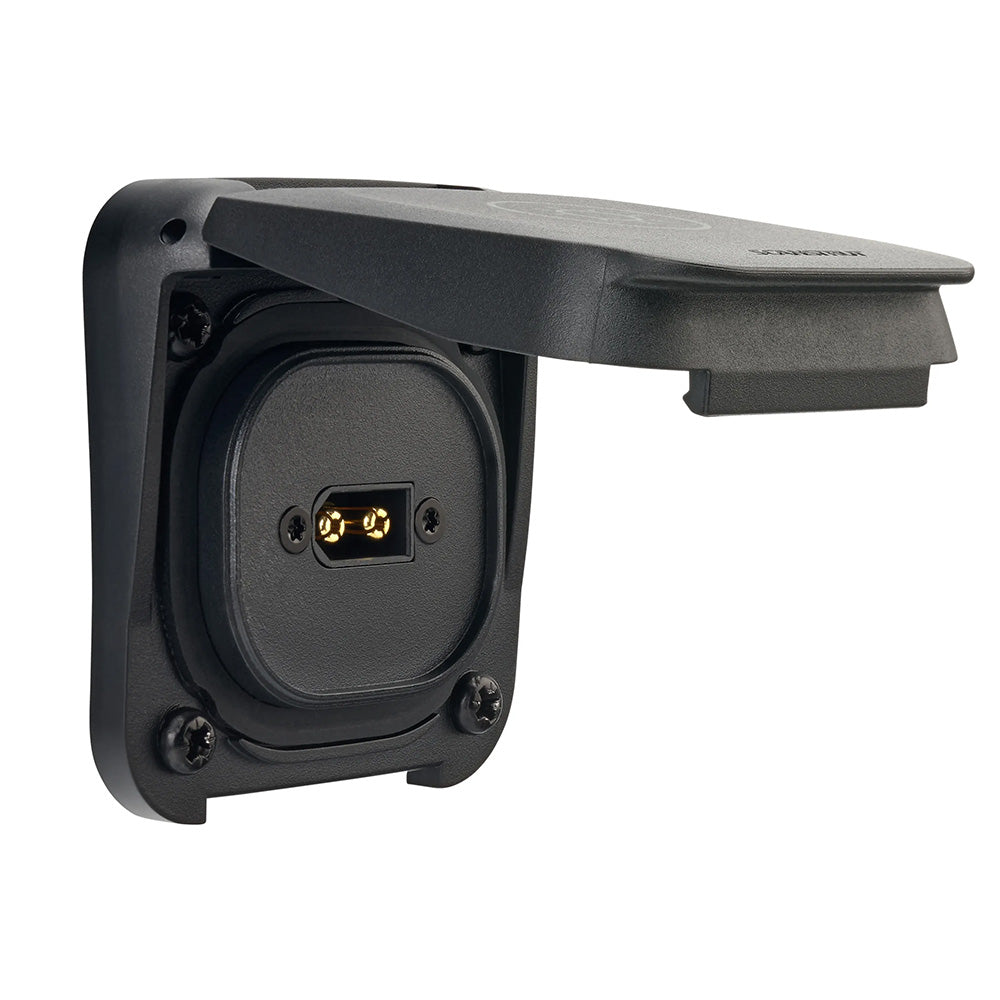

Scanstrut Ventura Series XT60 Solar Connection

The Scanstrut Ventura Series XT60 Solar Connection gives outdoor equipment a fixed XT60 connection point for solar and power setups. It is made for installations that need a compact exterior socket with a waterproof front when the lid is closed.

This Ventura socket uses marine-grade 316 stainless steel components and a built-in gasket for a watertight seal. It installs with a standard 25 mm holesaw and includes a sprung cover that opens fully to 180 degrees.

• Connection type: Amass XT60EW-M male waterproof type
• Compatible connectors: XT60W-F female waterproof type, IP65 in use; XT60-F standard female type
• Waterproof rating: IP68 and IP69K front only when lid is closed
• Maximum current: 30A continuous, 60A instantaneous
• Maximum voltage: Rated 500V DC
• Maximum power delivery: 360W at 12V input, 720W at 24V input, 1440W at 48V input

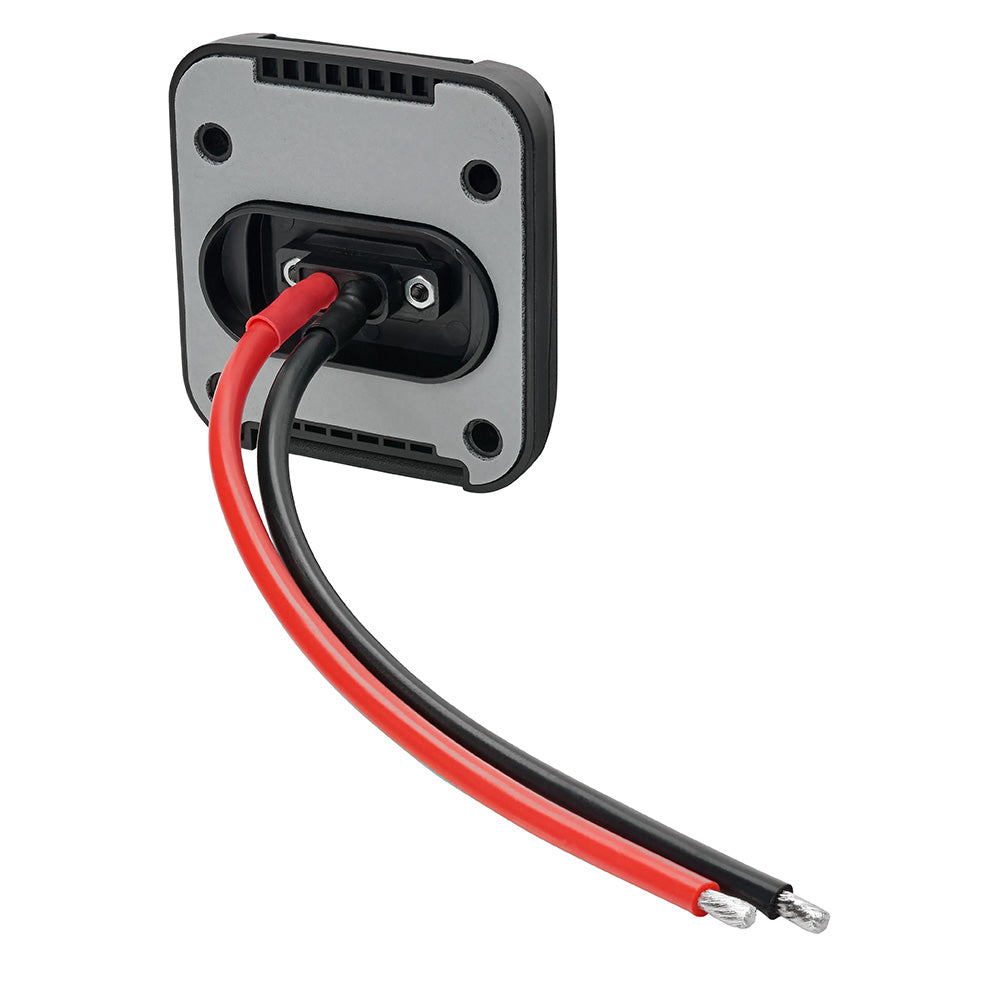

• Cable: 4mm² / 12AWG, 150 mm / 6 in tinned copper wire
• Cable bend radius: 18 mm / 0.71 in, 4xD
• Installation: Standard 25 mm / 1.00 in holesaw
• Materials: Marine-grade 316 stainless steel components

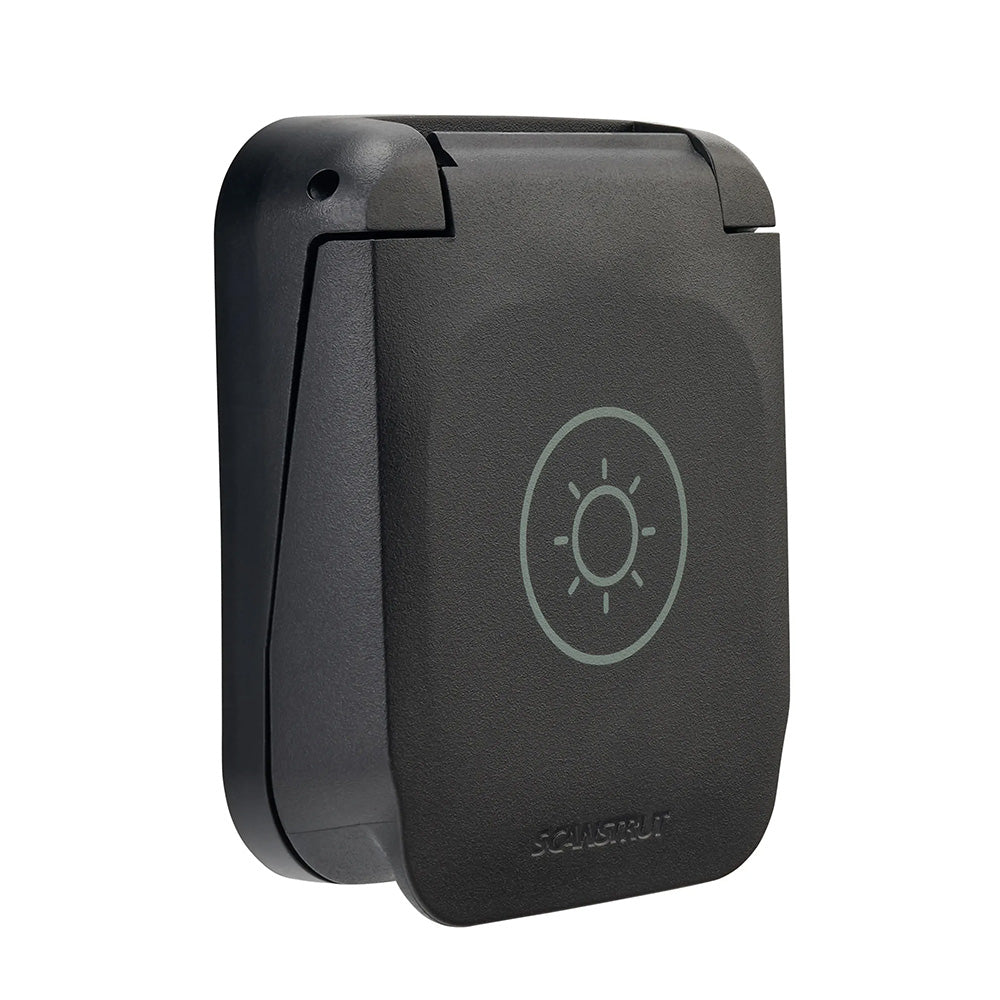

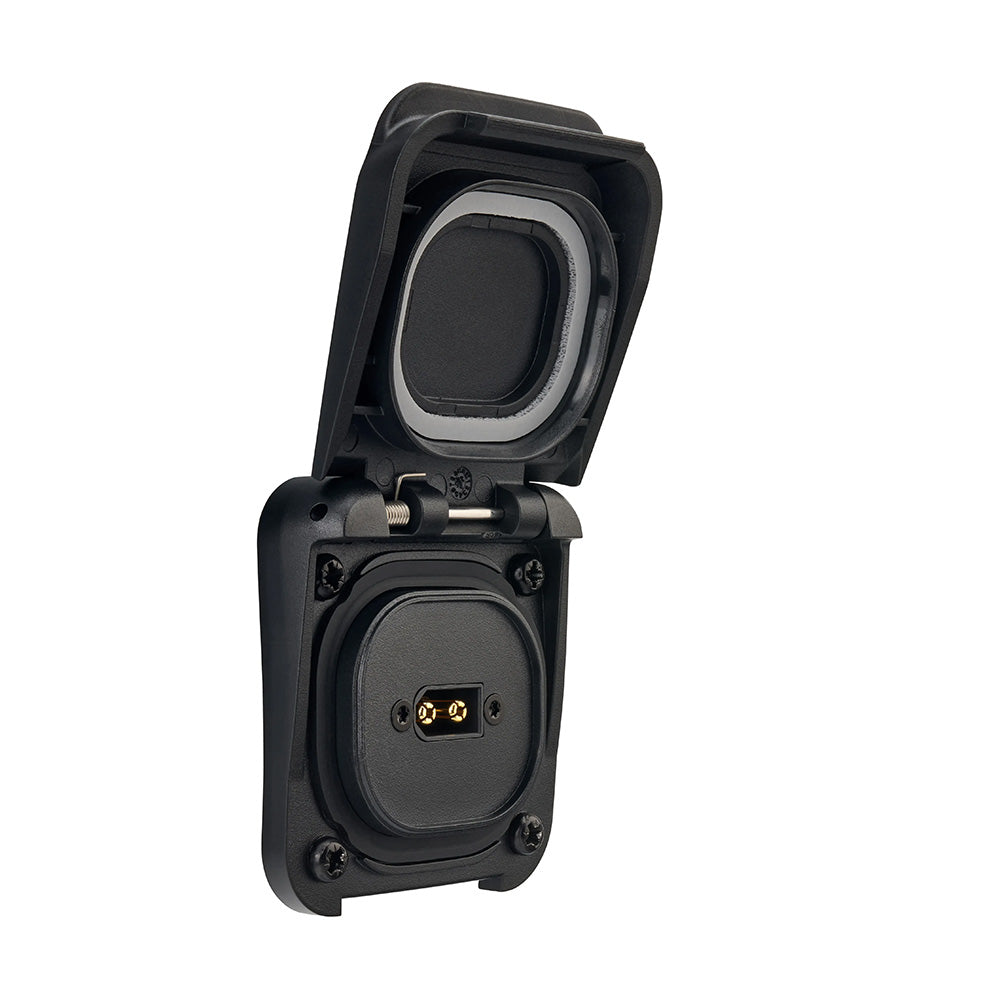

• Cover: Click-to-close design, sprung to fully open 180 degrees, with 90 degree holding bump feature
• Gasket: Built-in for a watertight seal
• UV resistance: UV resistant
• Certification: CE and RoHS
