Scanstrut Ventura Series SAE Solar Connection

Scanstrut Ventura Series SAE Solar Connection

OM-SCANSTRUT-VENTURASERIESS-SCVS2

$32.70
$39.99 $32.70
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Scanstrut Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

ElectricType

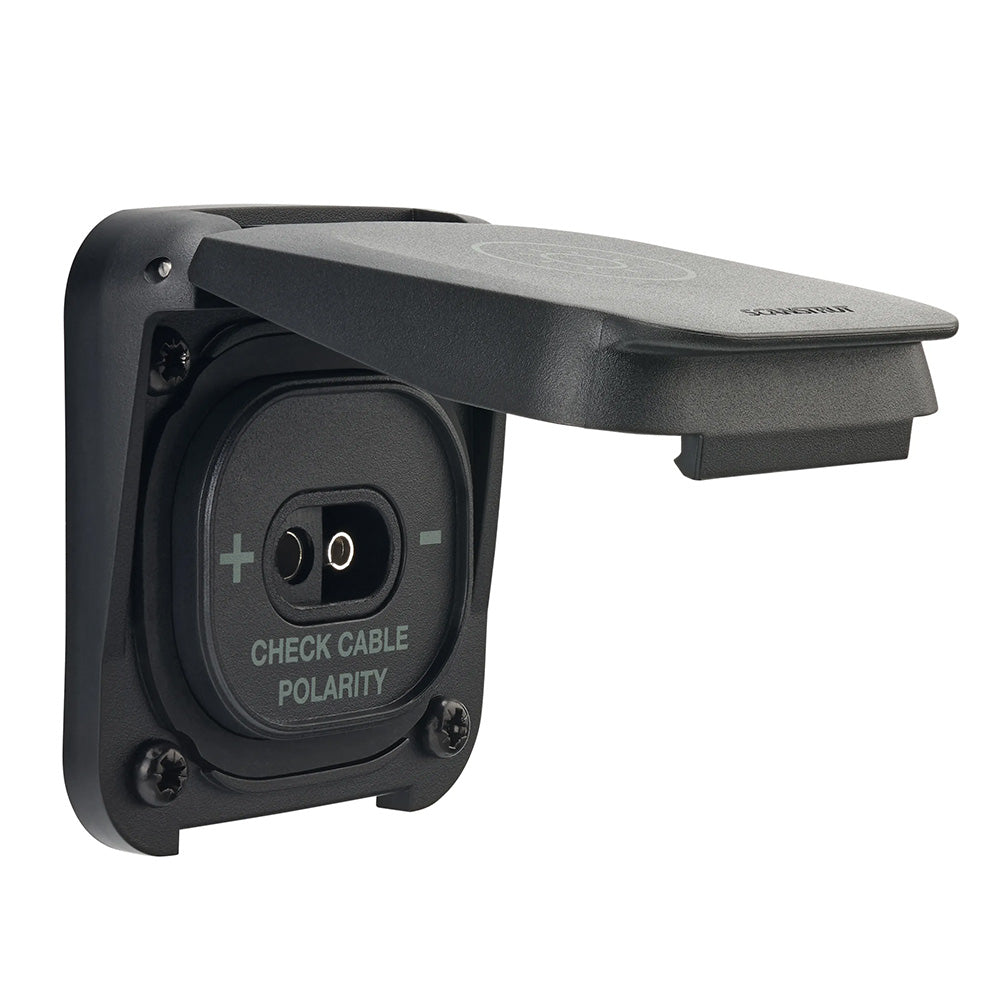

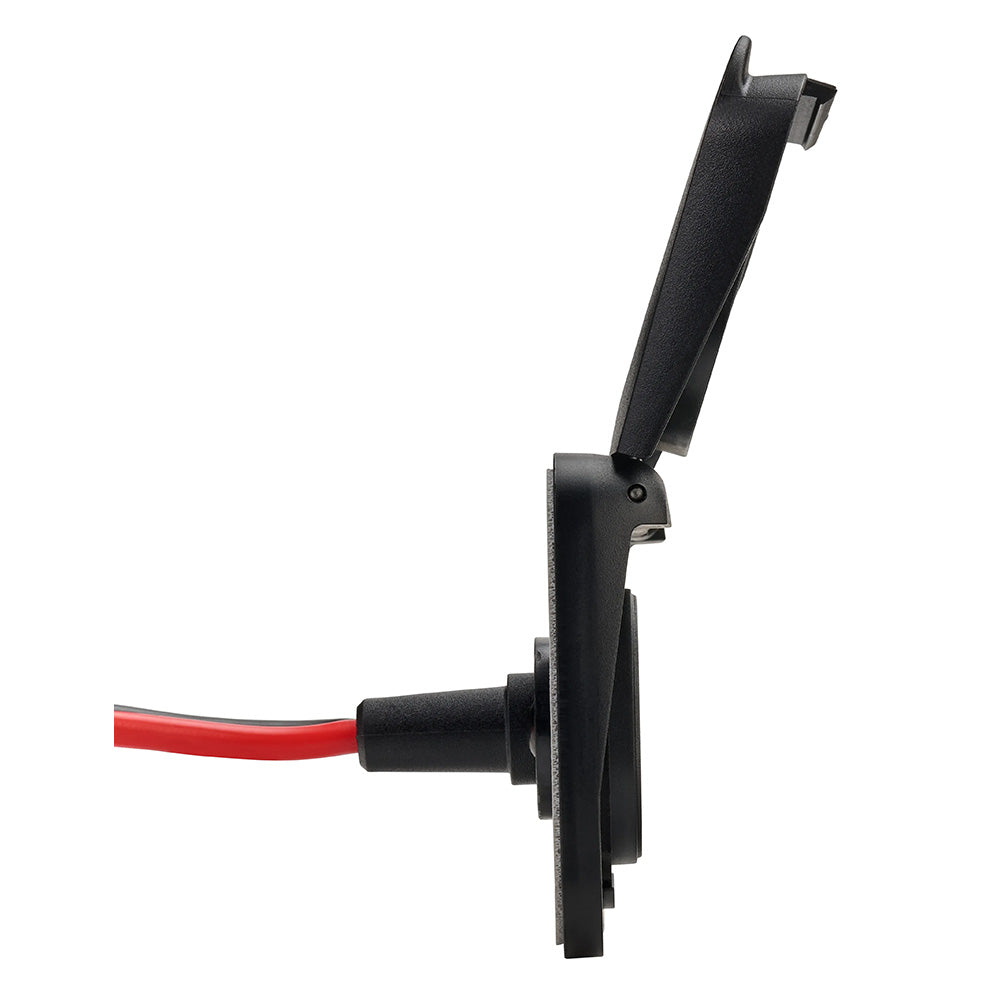

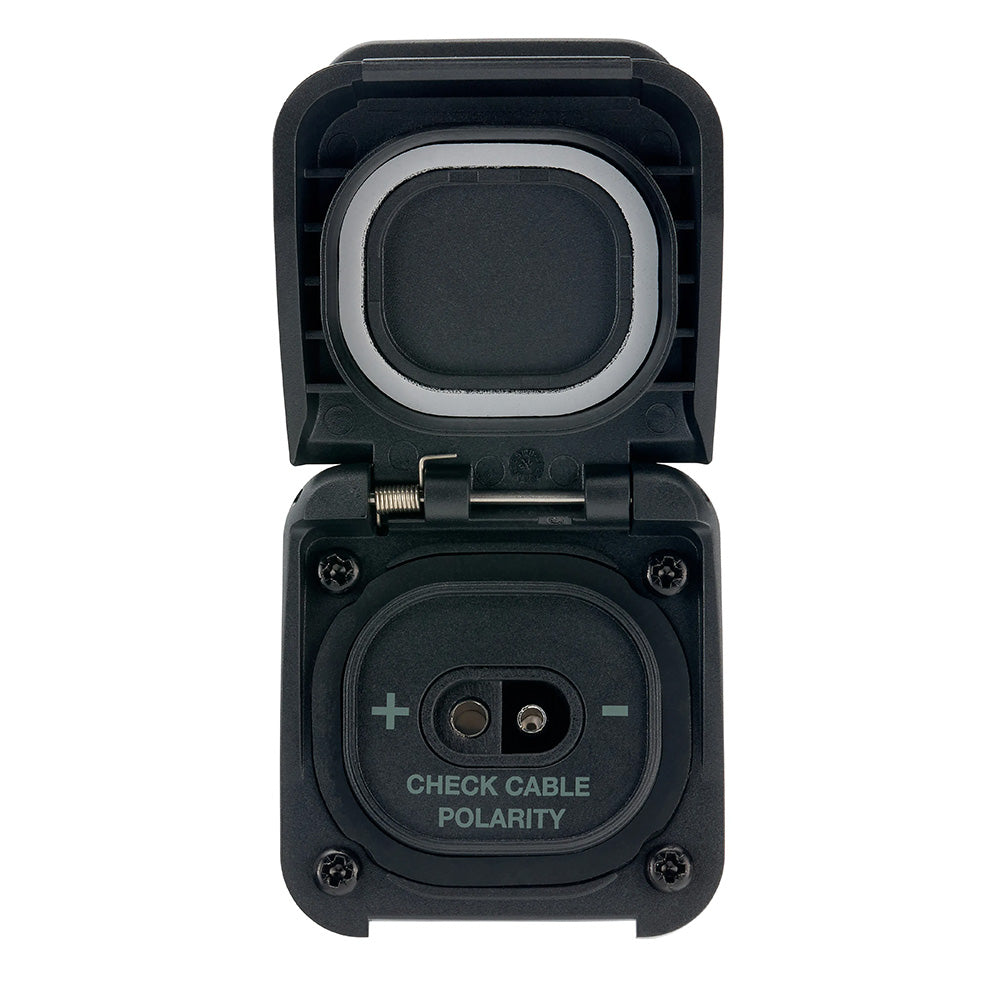

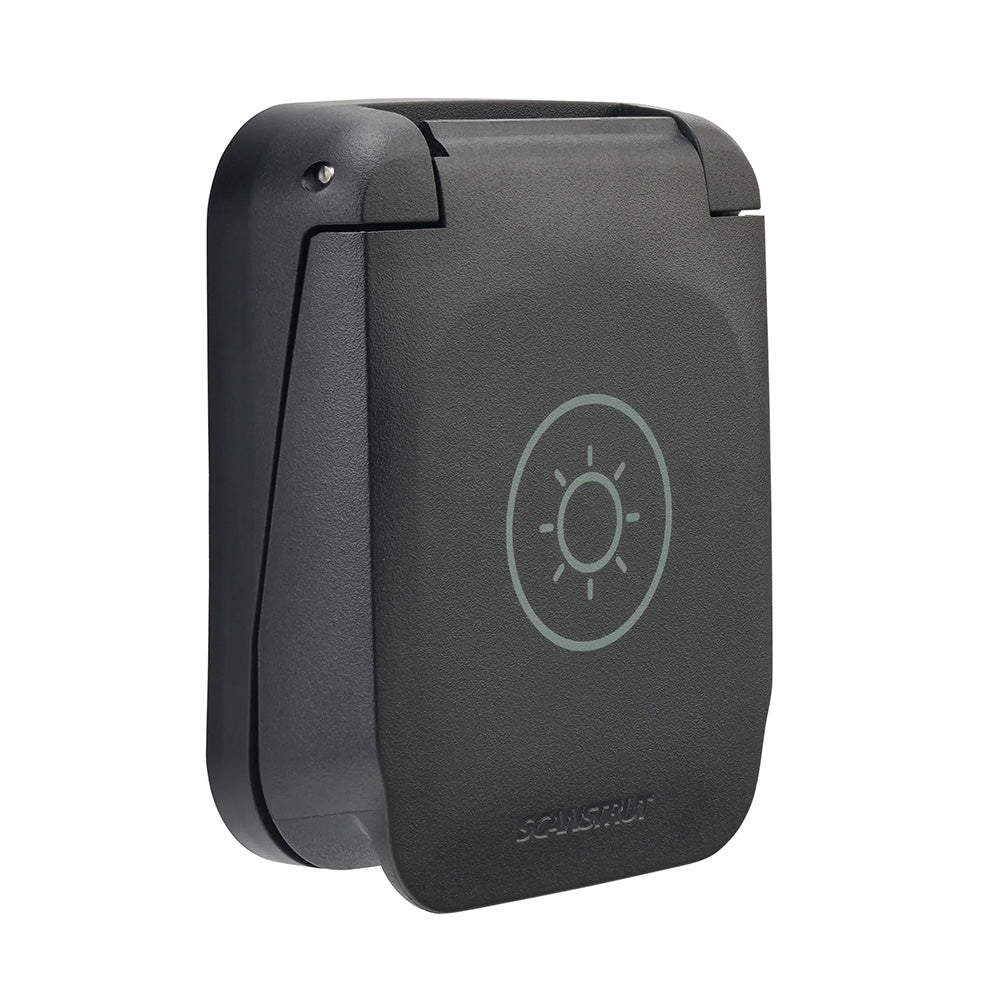

The Scanstrut Ventura Series SAE Solar Connection gives outdoor vehicles and marine-style installations a protected SAE access point for solar or battery-maintainer use. It matches the Ventura Series design and is built for exterior mounting where water, dust and exposure are concerns.

  • Connection type: SAE connector
  • Maximum current: 20A
  • Maximum voltage: Rated 24V DC
  • Power delivery: 240W maximum at 12V input, 480W maximum at 24V input
  • Installation hole: Standard 25mm (1.00 in) holesaw
  • Waterproof rating: IP68 and IP69K front only when lid is closed
  • Seal: Built-in gasket for a watertight fit
  • Materials: Marine-grade 316 stainless steel components

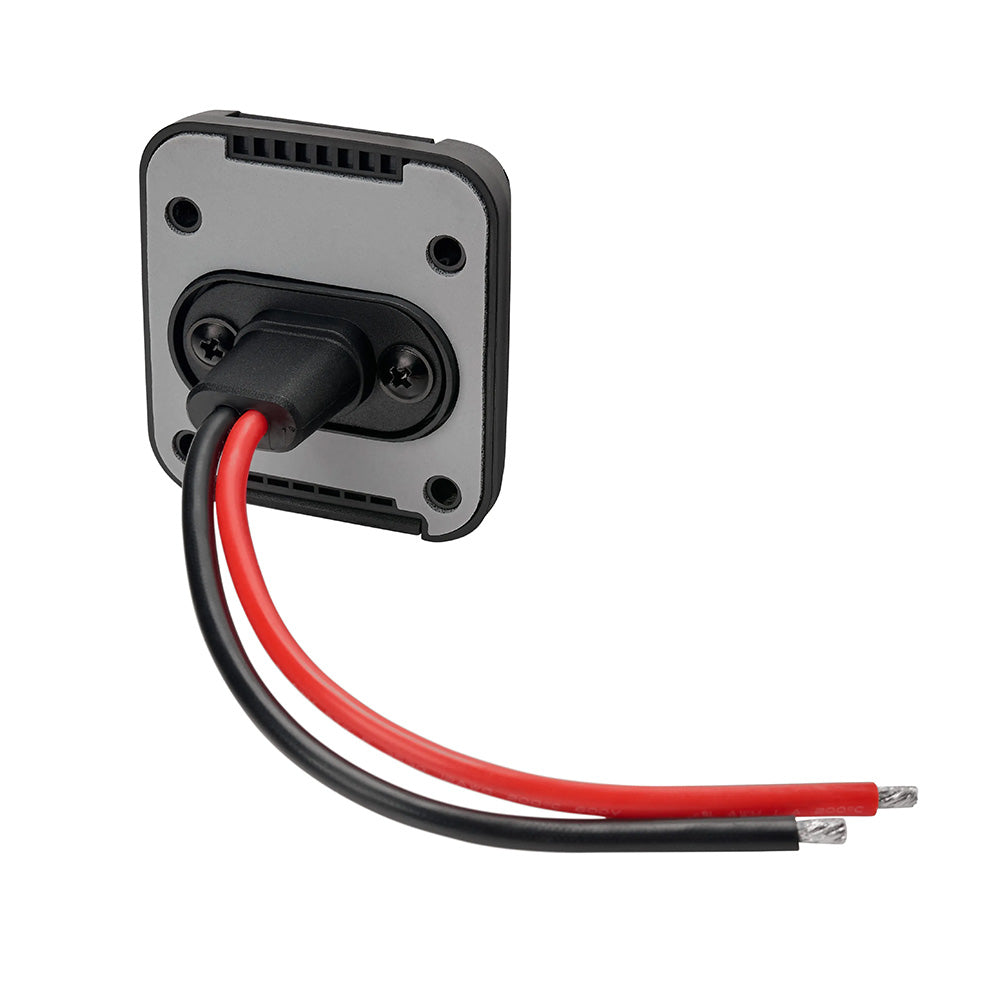

  • Cable: 4mm² / 12AWG, 150mm (6 in) tinned copper wire
  • Cable bend radius: 18mm (0.71 in), 4xD
  • Lid: Spring-loaded with 90° holding bump feature
  • Certifications: CE, ROHS

Specifications

TypeElectric
BrandScanstrut
Manufacturer part #SC-V-S2
UPC5060114799493
Boxed dimensions5 x 3 x 3 in
Shipping weight0.2 lb
