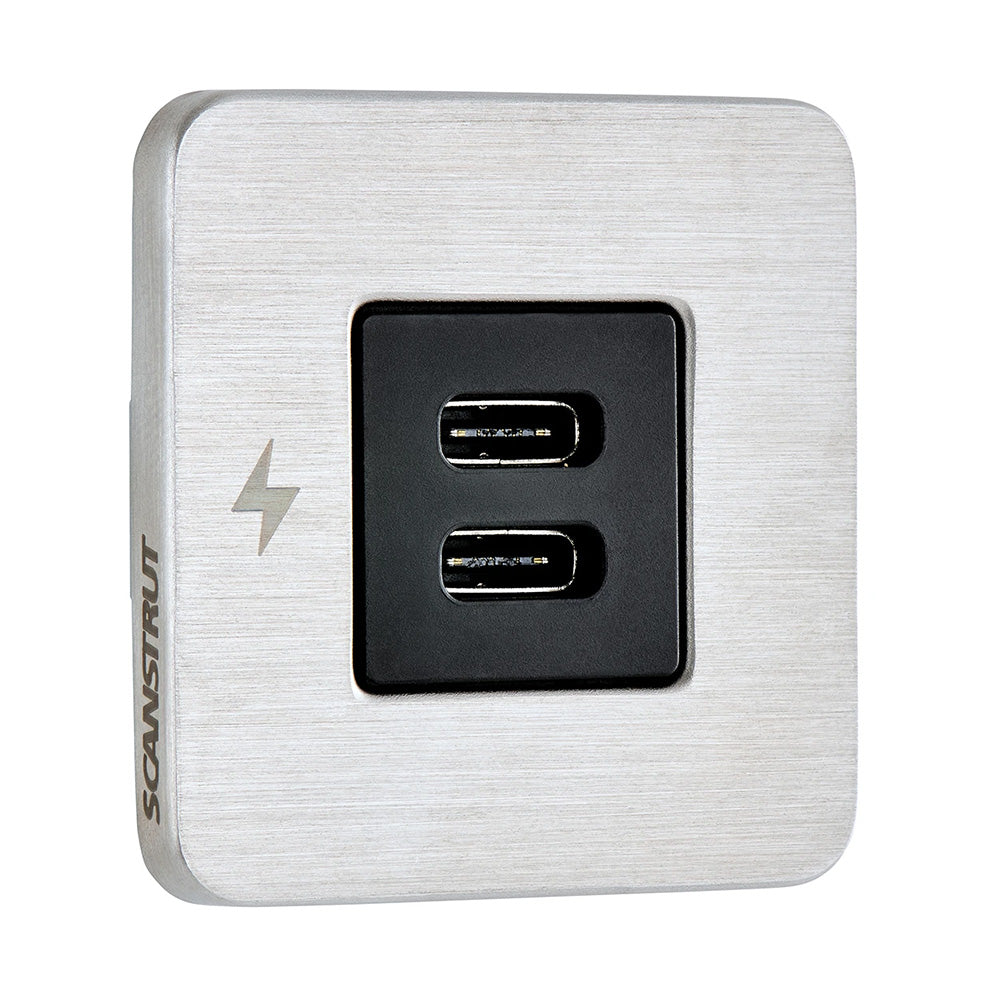

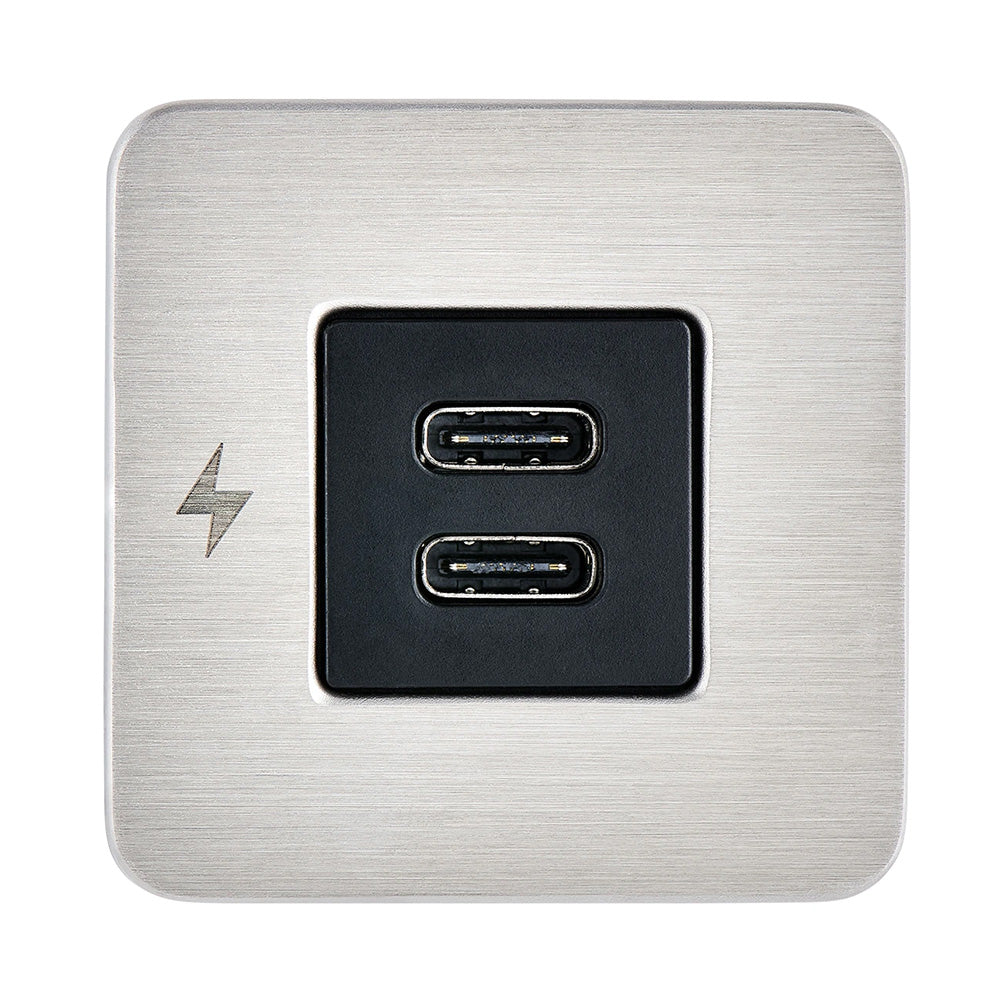

Scanstrut TILE USB-C Interior Charging Socket - 12/24V - Stainless Steel Bezel

Scanstrut TILE USB-C Interior Charging Socket - 12/24V - Stainless Steel Bezel

OM-SCANSTRUT-TILEUSBC-SCTILE21

$57.98
$79.99 $57.98
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Scanstrut TILE USB-C charging socket is built for adding device charging inside a boat cabin or helm area. It supports 12V and 24V DC systems and uses a stainless steel bezel with a low-profile TILE Series footprint.

  • Use: Interior installation only; do not install where water exposure is possible.
  • Input voltage range: 10-32V DC for 12/24V systems.
  • Maximum input current: 6A; 10A fuse recommended.
  • Output: USB-C up to 36W on a 12V system or up to 60W on a 24V system.
  • Type-C output on 12V: 5V=3A, 9V=3A, 12V=3A max.
  • Type-C output on 24V: 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=3A max.
  • Installation footprint: 40mm (1.57 inch); requires a 29mm (1.14 inch) hole saw.
  • Standby power: 0.01W.
  • Features: Front-fit design, ultra-low profile, conformal coated electronics, USB-A and USB-C charging.
  • Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE.

Specifications

BrandScanstrut
Manufacturer part #SC-TILE-21
UPC5060114799608
Boxed dimensions4 x 4 x 3 in
Shipping weight0.2 lb
Country of originCHINA
