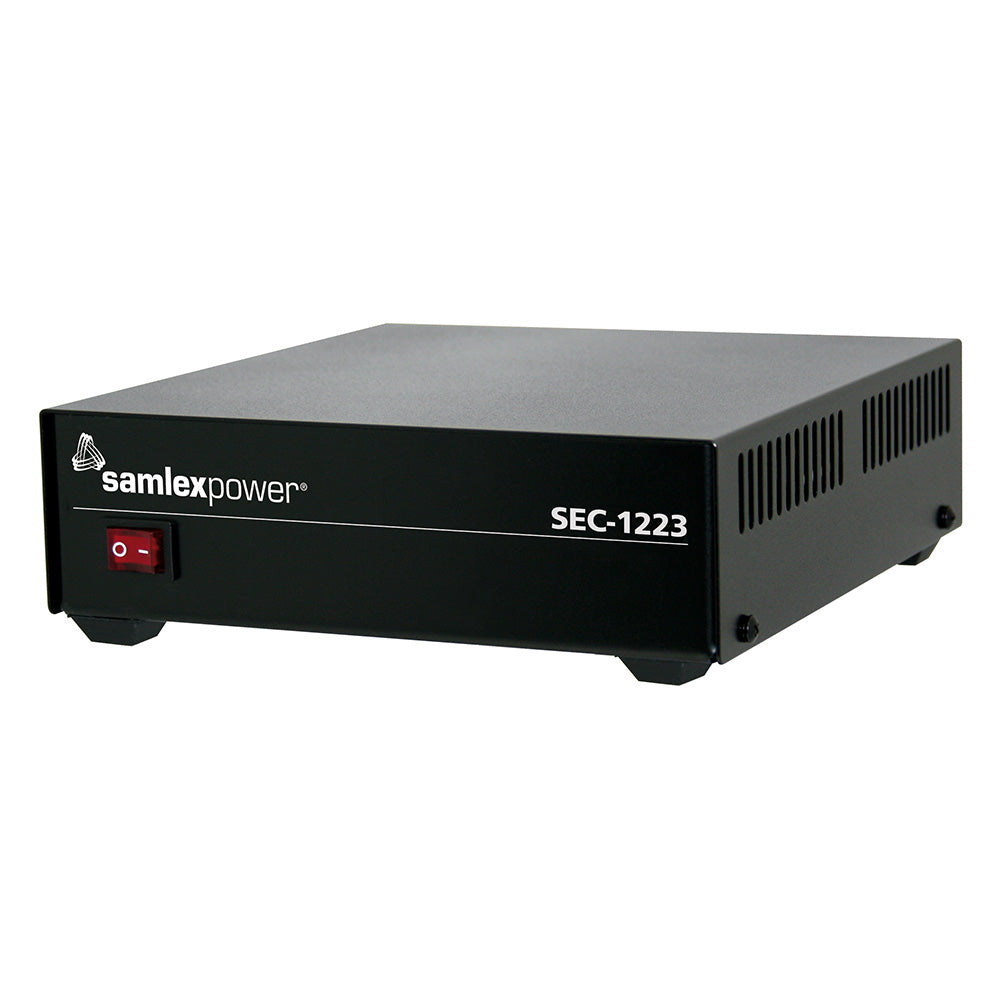

Samlex SEC-1223 Power Supply

Power a land mobile radio base station or other listed DC equipment from an AC supply with the Samlex America SEC-1223. This switching power supply delivers regulated 13.8V DC at 23A, with filtering to limit radio-frequency interference.

Key features

• Regulated DC output supplies power for communications systems and other listed applications.
• Filtering reduces output ripple and RFI for radio use.
• Switch-mode construction keeps size and weight down.
• Over-current, short-circuit and over-voltage protection address electrical fault conditions.
• A detachable cord with a NEMA 5-15P plug provides the AC connection.

Specifications

• Model: SEC-1223
• Specified input range: 100–130V AC
• Nominal AC input: 120V, 60Hz
• Input selection: 120V AC or 240V AC via internal jumper
• Output voltage: 13.8V DC
• Output current: 23A
• Fuse: 6.3A
• Weight: 3.5lbs / 1.6kg
• Dimensions: 7.28 x 8.19 x 2.40 inches / 18.5 x 20.8 x 6.1cm
• Safety approval: UL-60950-1; UL listed to USA and Canadian safety standards
• Compliance: FCC Part 15(B), Class B digital device

Good to know

The detachable power cord is included. Listed applications include two-way radio base stations, communications and security systems, test equipment, plotters, GPS receivers, automotive and marine displays, DC computers, 12V lighting systems and OEM applications.
