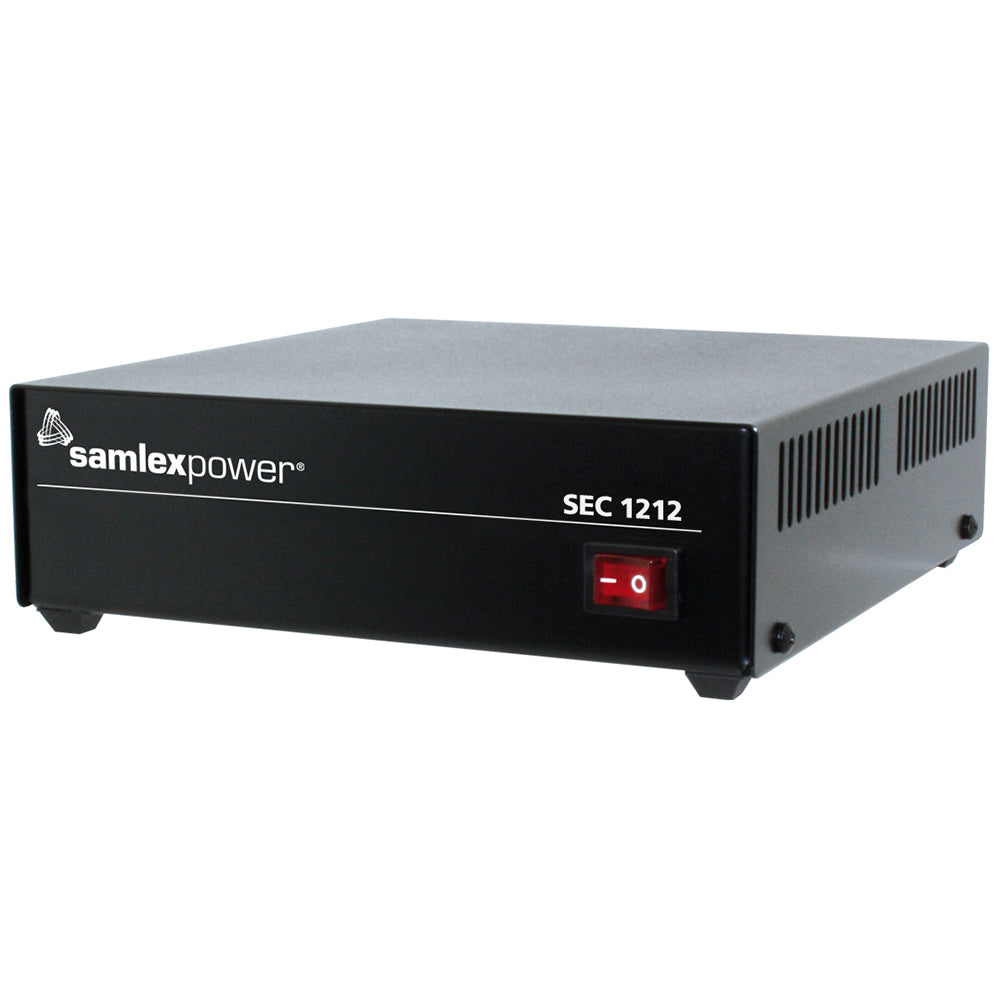

Samlex Desktop Switching Power Supply - 120VAC Input, 12V Output, 10 Amp

Power land mobile radio equipment and other supported DC devices from an AC supply with this Samlex America desktop converter. It delivers regulated 13.8V DC at 10A, with filtering that reduces electrical interference for communications equipment and applications such as GPS receivers and marine displays.

Key features

• Regulated DC output supplies steady voltage for connected equipment.
• Switch-mode circuitry keeps the power supply's size and weight down.
• Filtering limits output ripple and radio-frequency interference.
• Over-current, short-circuit and over-voltage protection address electrical fault conditions.
• A detachable cord with a NEMA 5-15P plug provides the AC power connection.
• An internal jumper allows selection of a 120VAC or 240VAC input setting.

Specifications

• Power supply type: Desktop switching AC-DC converter
• Nominal AC input: 120V, 60Hz
• Specified input range: 100-130VAC
• DC output: 13.8V
• Output current: 10A
• Fuse rating: 3A
• Weight: 3.4lb / 1.54kg
• Dimensions: 8.19 x 7.28 x 2.4 inches / 20.8 x 18.5 x 6.1cm
• Power cord plug: NEMA 5-15P
• Safety approval: UL-60950-1; UL listed to USA and Canadian safety standards
• Compliance: FCC Part 15(B), Class B digital device
• Warranty: 3-year limited

Good to know

The supplied cord is detachable. Listed applications include two-way radio base stations, communications and security systems, test equipment, plotters, GPS receivers, automotive and marine displays, DC computers, 12V lighting and OEM equipment.
