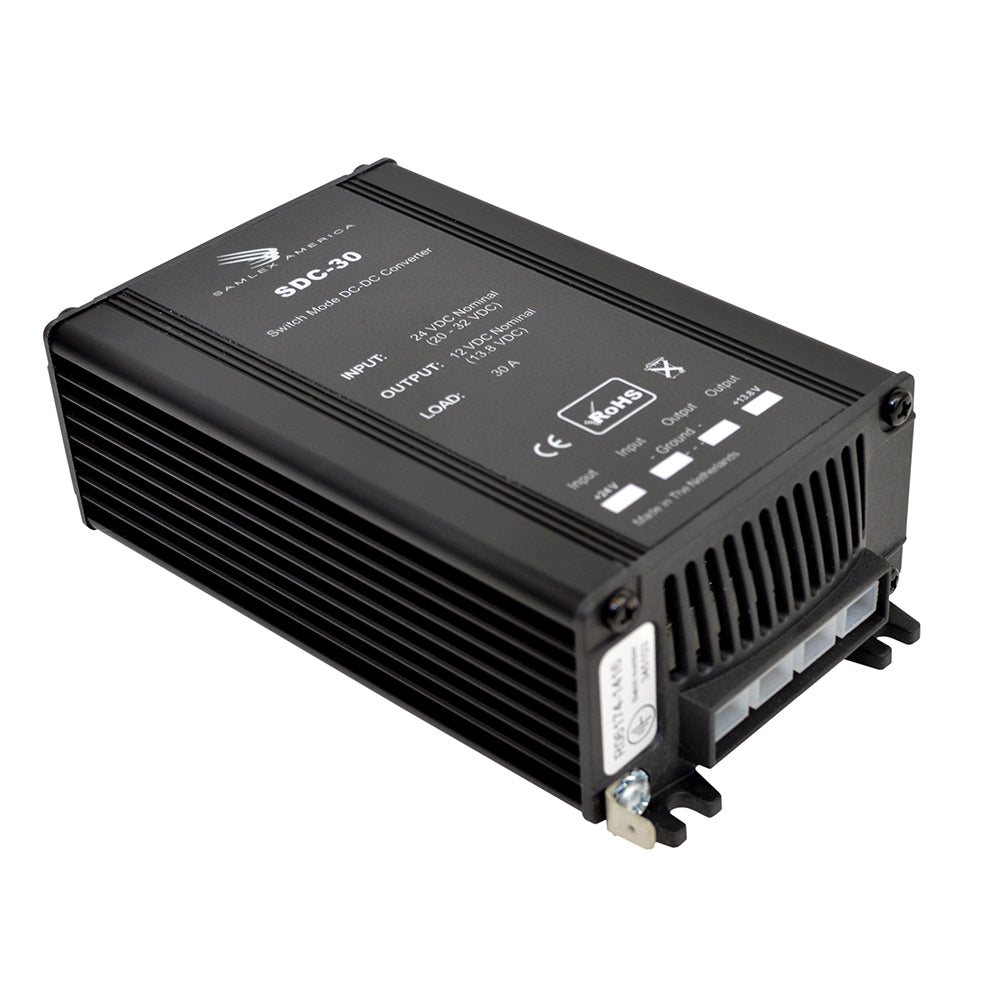

Samlex 30A Non-Isolated Step-Down 24VDC-12VDC Converter

Samlex 30A Non-Isolated Step-Down 24VDC-12VDC Converter

OM-SAMLEXAMERIC-30ANONISOLATED-SDC30

$176.30
$220.40 $176.30
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Run 12V equipment from a nominal 24V DC supply with the Samlex America SDC-30 step-down converter. Its regulated 13.8 VDC output supplies 30 amps for applications such as marine vehicles, radios, lighting and sound systems.

Key features

  • Switch-mode conversion provides a regulated output for equipment using a nominal 12V supply.
  • A compact, lightweight body gives you flexibility when choosing a mounting location.
  • Cycle-by-cycle current limiting and overload protection help manage excessive current demand.
  • Reverse-polarity, over-voltage and short-circuit protection address electrical fault conditions.
  • Overheating protection helps safeguard the converter when temperatures rise.

Specifications

  • Model: SDC-30
  • Converter type: Non-isolated DC-DC step-down
  • Nominal input voltage: 24 VDC
  • Input voltage range: 20–32 VDC
  • Nominal output voltage: 12 VDC
  • Regulated output voltage: 13.8 VDC
  • Output current: 30 amps
  • System grounding: Negative ground
  • Weight: 1.2 lbs. / 0.54 kg
  • Dimensions: 6 x 3.5 x 1.9 in. / 15.2 x 8.9 x 4.8 cm
  • Warranty: 2-year limited

Good to know

The input and output have no galvanic isolation. Use this converter in negative-ground systems.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

BrandSamlex America
Manufacturer part #SDC-30
UPC622988061745
Boxed dimensions6 x 4 x 2 in
Shipping weight1.2 lb
Country of originNETHERLANDS
