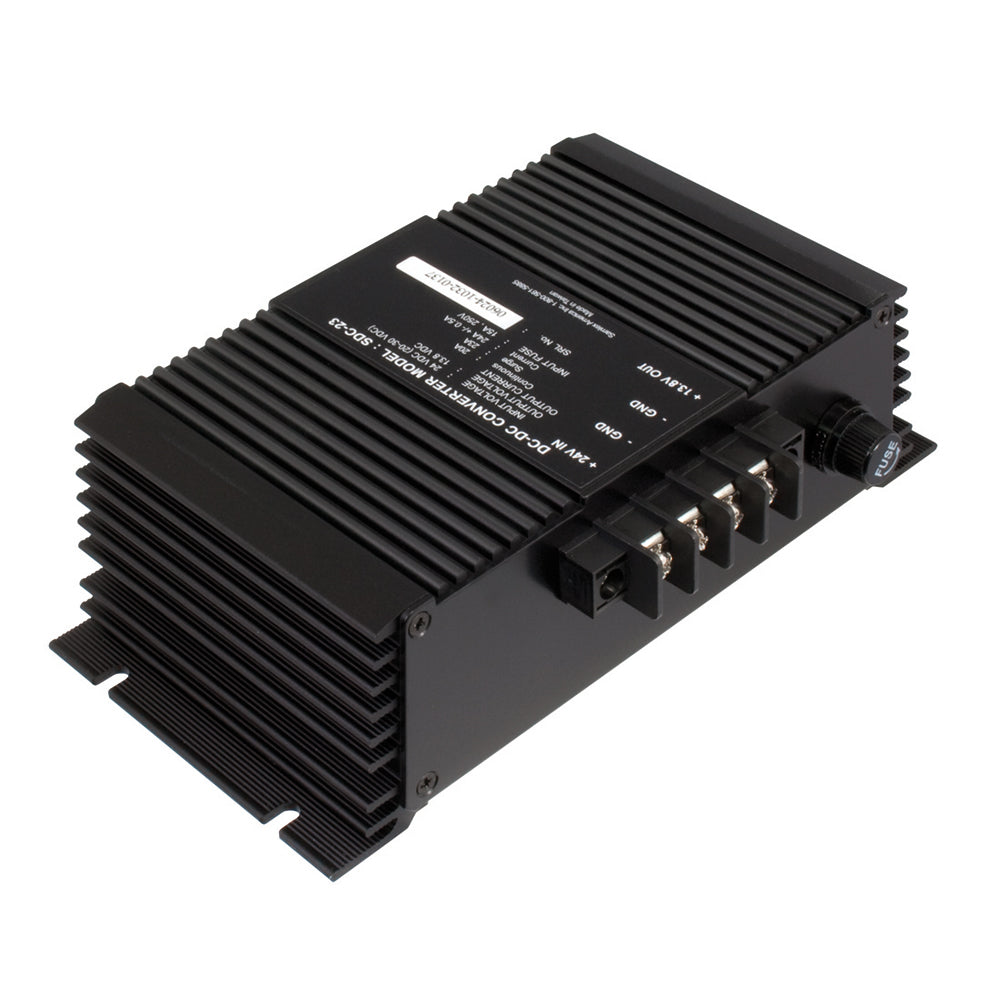

Samlex 20A Non-Isolated Step-Down 24VDC-12VDC Converter

20A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features:

• Advanced switchmode design
• Mount in almost any location
• Compact and light weight
• Reverse polarity protection
• High efficiency
• Current limiting circuit
• Overvoltage crowbar circuit
• Non-Isolated for negative ground system

Specifications:

• Input: 20-30 VDC
• Output: 13.8 VDC
• Amps: 20 Amps
• Weight: 2.2 (lbs)
• Weight: 1 (kg)
• Dimensions: 7.75 x 4.75 x 2.4 (in)
• Dimensions: 19.7 x 12.1 x 6.1 (cm)
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems
