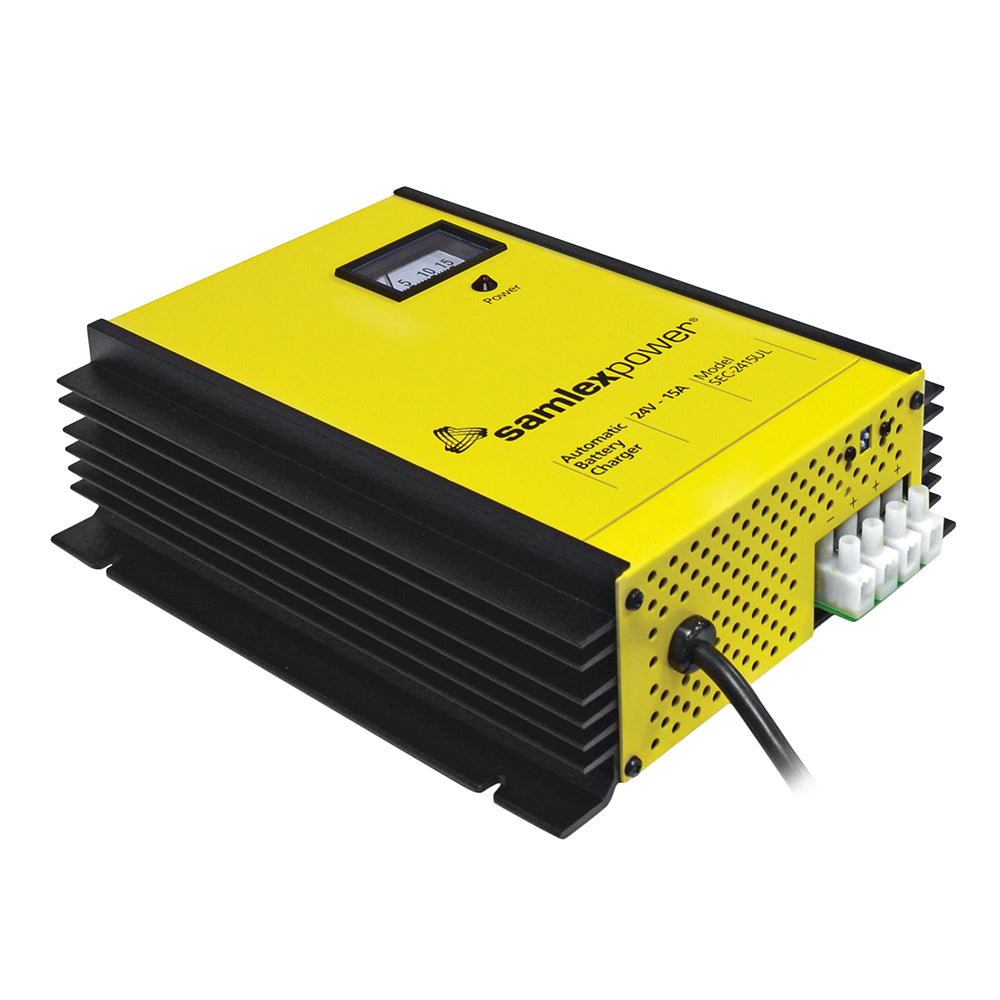

Samlex 15A Battery Charger - 24V - 3-Bank - 3-Stage w/Dip Switch & Lugs

Charge up to three 24V lead-acid battery banks with this fully automatic Samlex America 15A battery charger. For marine, RV and battery backup applications, it offers selectable charging stages and can also serve as a DC power supply.

Key features

• Charges three separate banks simultaneously without requiring an isolator.
• A DIP switch selects two-stage charging for batteries connected to a DC load or three-stage charging.
• Supports flooded, AGM and gel batteries, allowing use across these lead-acid battery types.
• User-selectable AC input accommodates 120V or 230V sources.
• Voltage and current meters, plus an LED power indicator, let you monitor operation.
• Protection covers overloads, short circuits, reverse battery polarity and overheating.

Specifications

• Output voltage: 24 VDC
• Charging current: 15 A
• Battery banks: Up to 3
• Charging stages: 2 or 3, user selectable
• AC source options: 120 V at 60 Hz or 230 V at 50 Hz
• Battery types: Flooded lead-acid, AGM and gel cell
• Weight: 6 lb / 2.72 kg
• Dimensions: 10.5 x 8.5 x 3 inches / 26.7 x 21.6 x 7.6 cm
• Safety listing: UL Standard UL-1564
• EMI compliance: FCC Part 15(B), Class B
• Warranty: 2-year limited

Good to know

The specified remote control model is 900-RC. The charger also supports DC power supply and DC UPS applications.
