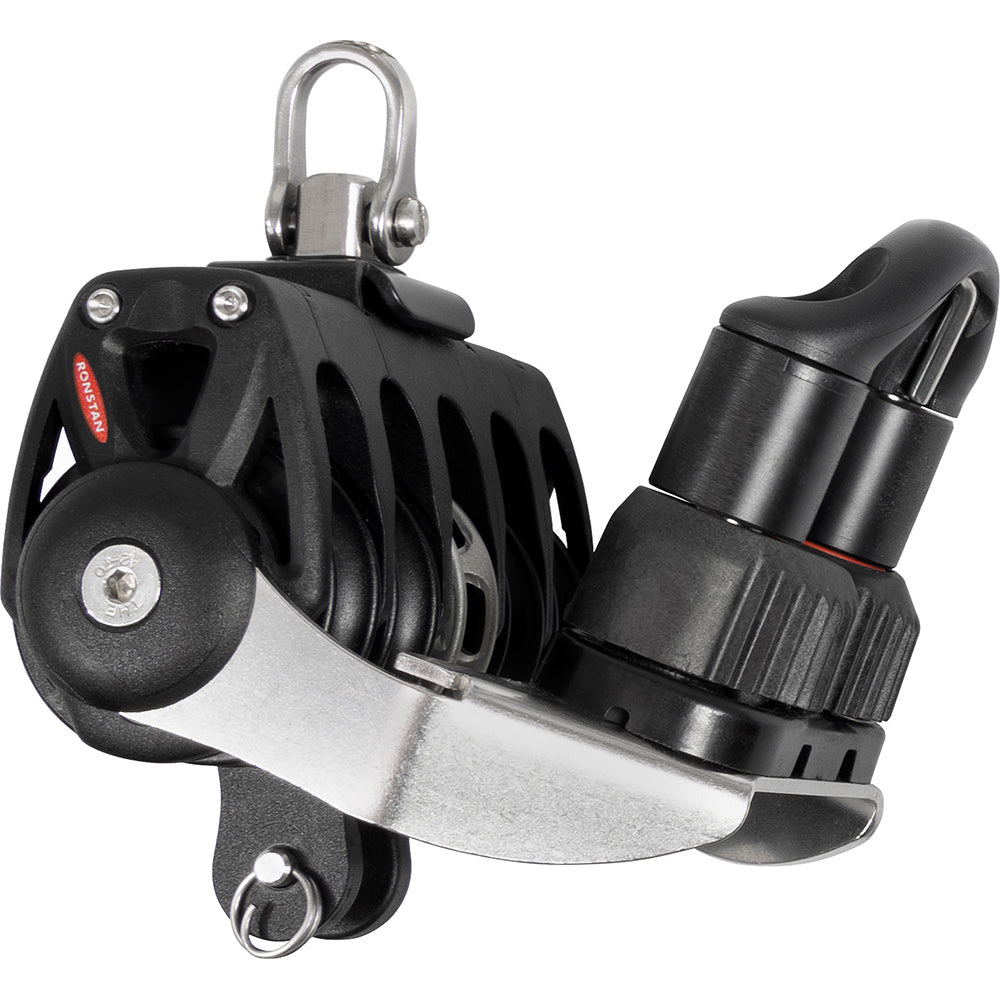

Ronstan Series 40 Orbit RT Block w/Quin, Becket, Cleat & Swivel

Bring multiple sheaves and rope cleating together in your sailing control system with the Ronstan Series 40 Orbit RT quin block. This model combines a becket, cleat and swivel for mainsheet, spinnaker sheet and other control-line applications.

Key features

• Glass fiber reinforced nylon cheeks provide strength while keeping weight down.
• Two-stage bearings combine ball bearings with a full-contact bearing to limit friction throughout the working load range.
• Carbon-reinforced C-Cleat holds the rope securely with low effort needed to engage or release it.
• Fairleads help guide the rope into the cleat from different angles.
• Adjustable stainless steel cleat arms let you set the cleating angle to suit your setup.
• Compact, low-profile construction keeps the block assembly contained.

Specifications

• Brand: Ronstan
• Series: 40 Orbit RT
• Configuration: Quin with becket, cleat and swivel
• Cheek material: Toughened glass fiber reinforced nylon
• Cleat: Carbon-reinforced C-Cleat
• Cleat arm material: Stainless steel
• Sheave diameter: 1-9/16 inches
• Maximum rope diameter: 5/16 inch
• Pin diameter: 5/32 inch
• Maximum working load: 1320 lb
• Breaking load: 2650 lb
• Weight: 13.0 oz

Good to know

Listed applications include mainsheets and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats up to 8 m (26 ft); halyards, vangs and backstays on boats up to 9 m (30 ft); and control lines on larger yachts.
