• Ronstan Series 40 Orbit BB Cheek Block
1 1

Ronstan

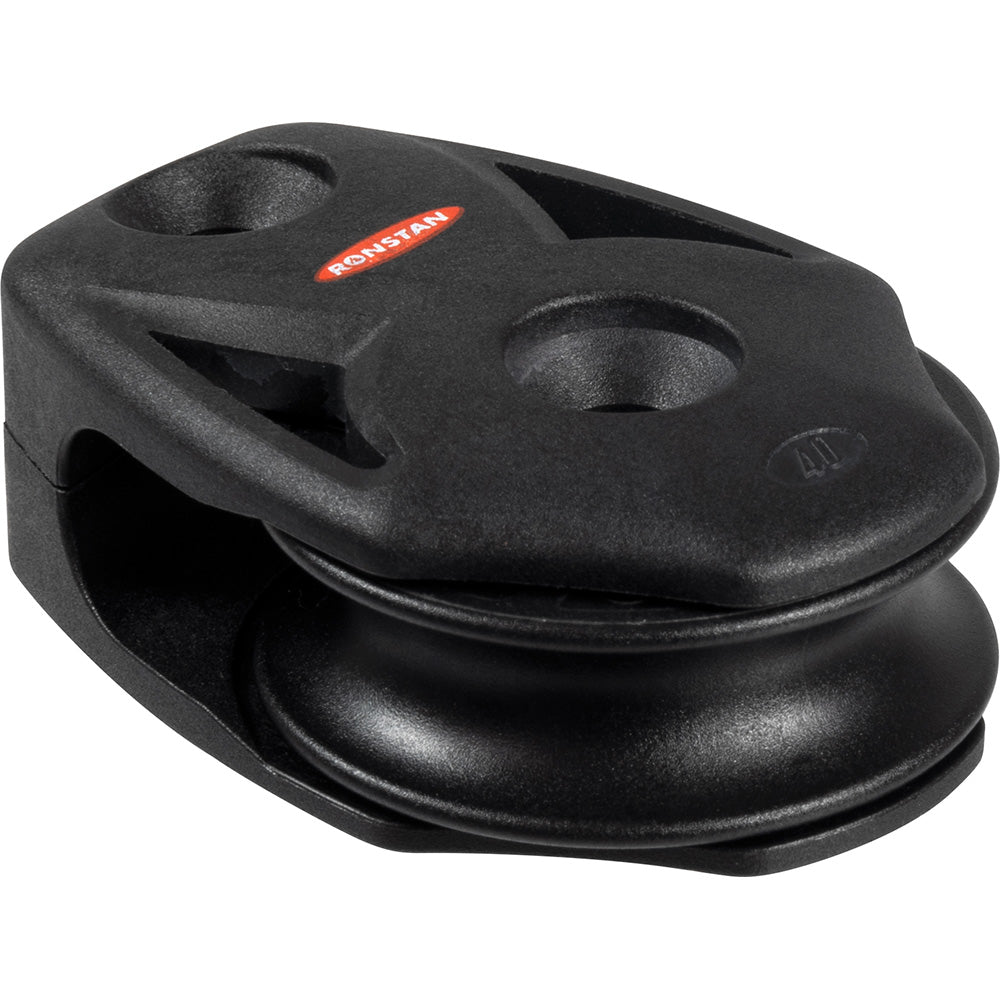

Ronstan Series 40 Orbit BB Cheek Block

Ronstan Series 40 Orbit BB Cheek Block

OM-RONSTAN-SERIES40ORBIT-RF48151

$58.13
$68.39 $58.13
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Manage sailboat sheets and control lines with the Ronstan Series 40 Orbit BB cheek block. A two-stage bearing system keeps friction low through the working load range, while reinforced nylon cheeks keep the assembly light and compact.

Key features

  • Ball bearings reduce friction to help ease line trimming.
  • A secondary full-contact bearing maintains low-friction operation as working loads increase.
  • Toughened, glass fiber reinforced nylon cheeks combine low weight with strength.
  • The low-profile shape offers a compact block for onboard line systems.
  • Applications include sheet handling, halyards, vangs, backstays and control lines.

Specifications

  • Brand: Ronstan
  • Series: 40 Orbit
  • Configuration: Cheek block
  • Bearing type: Two-stage ball bearing system
  • Cheek material: Toughened, glass fiber reinforced nylon
  • Sheave diameter: 1-9/16 inches
  • Maximum rope diameter: 3/8 inch
  • Maximum working load: 880 lb
  • Breaking load: 1760 lb
  • Weight: 1.2 oz

Good to know

Application guidance covers mainsheets and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8 m (26 ft). It also lists halyard, vang and backstay use on boats to 9 m (30 ft), and control lines on larger yachts.

Specifications

BrandRonstan
Manufacturer part #RF48151
UPC9316800629152
Boxed dimensions4 x 2 x 1 in
Shipping weight0.1 lb
